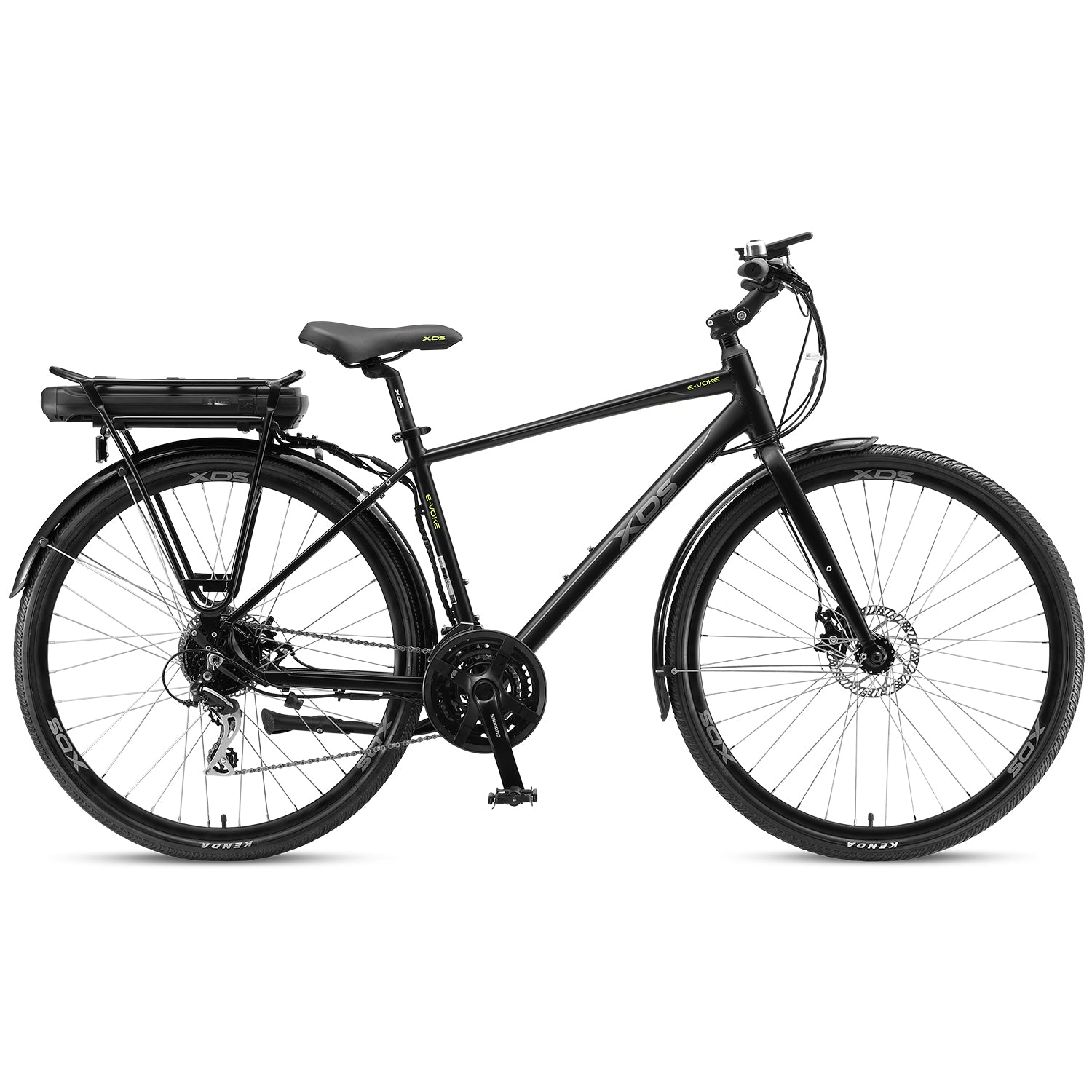

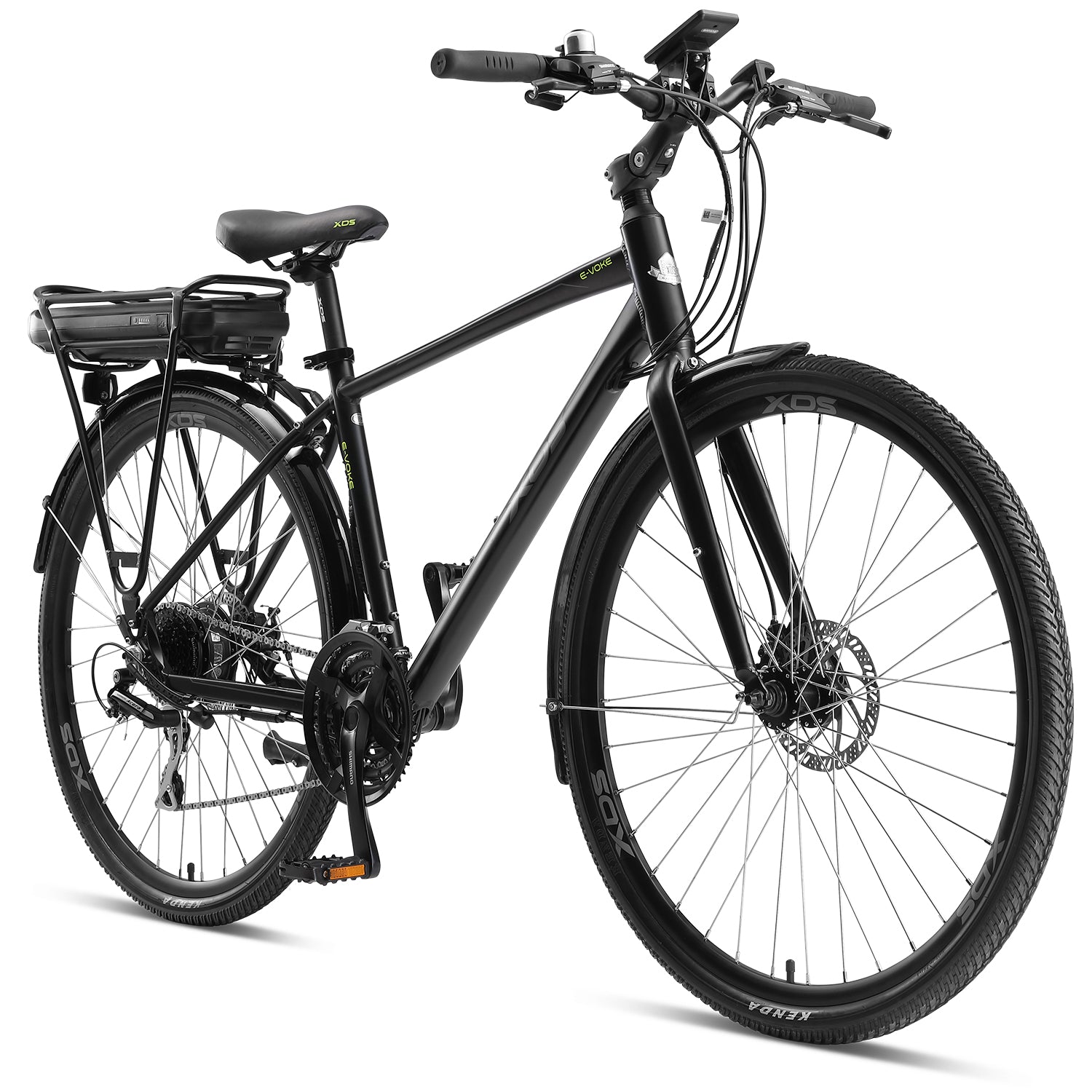

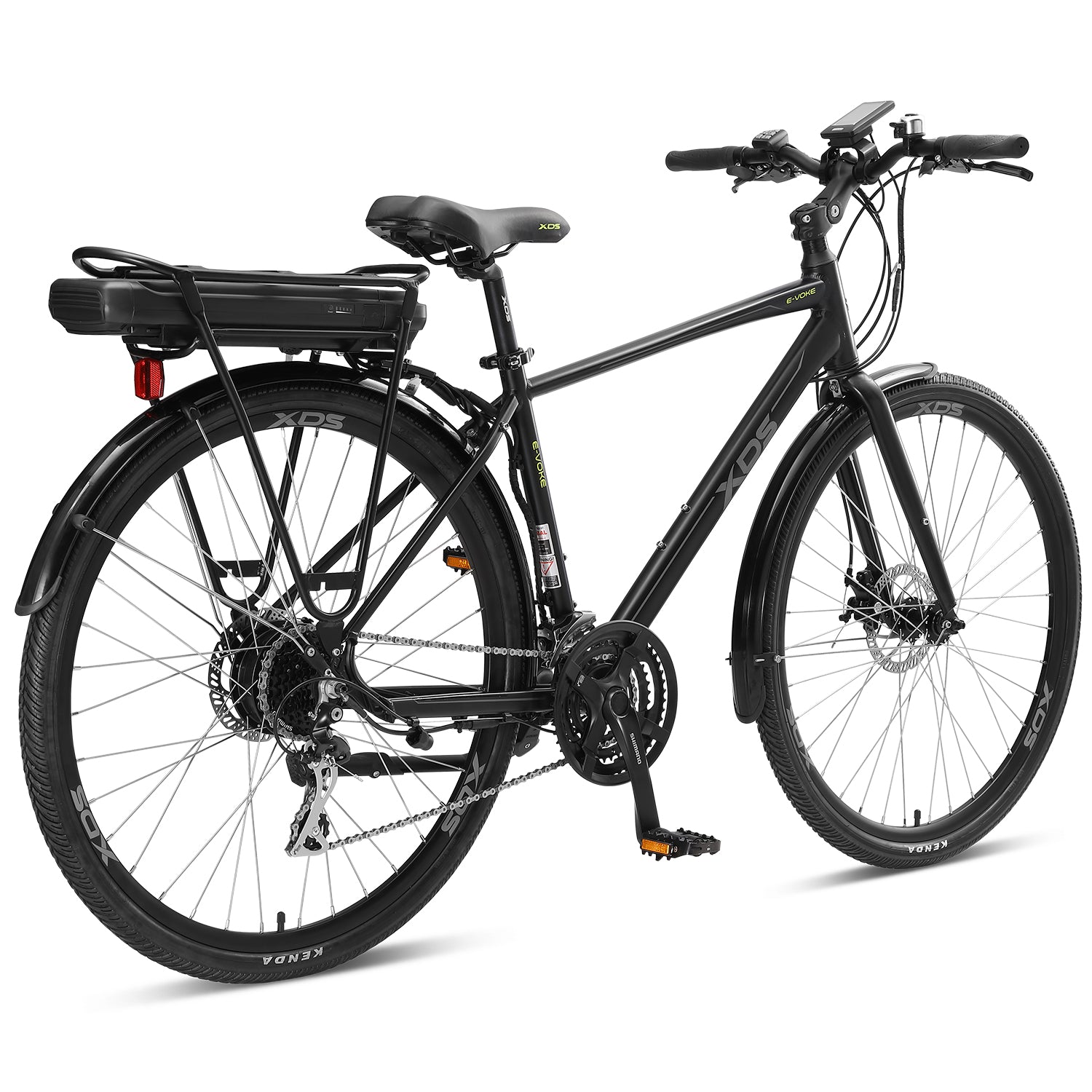

E-Voke

RRP $1,999.00

EBIKEVOKE-M
Size:
Colour: Black

Features

Lightweight Alloy Frame

Improve the agility and handling of your ride with a lightweight alloy frame.

Practical and Convenient

A range of additional features make the E-VOKE ideal for riding in any situation including front and rear PVC mudguards and an alloy rear rack, perfect for attaching bags on long rides.

Battery

Lithium Ion Battery

A great electric bike needs a great battery to work. The E-VOKE comes with a big 36v 2200mAh Panasonic cell Battery to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.

250W DC Brushless Hub Drive Motor

With a rear wheel Hub Drive Motor, climbing steep hills and tackling unfavourable terrain becomes effortless. Pedal Assistance System (PAS) will sense and amplify your pedalling effort by powering the front wheel to assist in speeds up to a maximum of 25km/h.

Be in Control

With a rear wheel Hub Drive Motor, climbing steep hills and tackling unfavourable terrain becomes effortless. Pedal Assistance System (PAS) will sense and amplify your pedalling effort by powering the front wheel to assist in speeds up to a maximum of 25km/h.

Superior Stopping Power

Feel secure coming to a stop with front and rear Tektro Disc Brakes. Riding in wet and muddy conditions, Disc Brakes offer far superior stopping power to rim wall brakes making them the best option for all season riding.

Battery

Shimano Altus 8-Speed

Face the shifting terrain of any urban environment with the 8 Speed Shimano drivetrain with Shimano Altus rear derailleur and Shimano Acera Rapid Fire 8 Speed shifters.

Specifications

Colours Matt Black
Frame Size 18"
Frame XDS Alloy
Fork Steel 700c
Handlebar XDS Alloy (W:620mm 6°H:30mm)
Grip Rubber Comfort Grips
Stem HL Alloy Adjustable. (φ28.6mm E:105mm H:41mm -10+50°Ï†25.4mm)
Seat post XDS Alloy (Φ27.2x350mm)
Seat Clamp HL Anodised Alloy
Saddle Cionlli Comfort Saddle
Pedals Alloy Cage, PP Body, 9/16"
Front Brakes Tektro Aries Cable Disc Brake
Rear Brakes Tektro Aries Cable Disc Brake
Brake Levers Tektro Auriga Cast Aluminium Two Finger Lever & Bracket
Gear Shifter Shimano Acera ST-EF500 EZ-Fire Plus 8 Speed
Rear Derallieur Front: Shimano Altus FD-M310 Rear: Shimano Acera MD-360
Freewheel Shimano Altus CS-HG200 8 Speed Cassette Sprocket. 11-32t
Chainwheel & Cranks Shimano Tourney FC-TY501, 175mm, 48X38X28T
Chain KMC (1/2"x3/32"x116L)
Headset (φ28.6xφ44xφ30mm 10PCS H=22)
Front Hub KT Alloy (13Gx36H M9x100x108mm)
Rear Hub See Electrical Specs below
Bell Alloy/Plastic
Spokes Stainless Steel (13G)
Tyre Kenda Hybrid 700c x 40c
Rim XDS Alloy (700C x 622 x 19 x 13G x 36H)
Motor Bafang. RM G120.250.DC, 700C, 25km/h, 36V/250W,
Display Bafang C10.UART LCD Display, DC 36V, 0-5 Modes
Sensor Bafang. SR PA01.12.S
Charger Information Phylion. CZ2AG7J24 Input: 100-240V 1.6A(MAX) 47/63HZ / Output:42V 2A
Motor Cable Bafang. CR S105.250.SN. 700",36V-250W,15A,25km/H, 0-5 level
Battery Phylion. SF-03 CB5A0181 36V/11Ah

Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.

Bike Size Guide

Alloy Frame
Frame Size Number 16"M 16"M 18"M
Wheel Size 700c 700c 700c
A - Seat Tube 40.6cm 40.6cm 45.7cm
B - Seat Tube Angle 73.5° 73.5° 73.5°
C - Head Tube Length 13cm 13cm 14cm
D - Effective Top Tube 57.5cm 57.5cm 59cm
E - Chainstay length 45.5cm 45.5cm 45.5cm
F - Wheelbase 109.19cm 109.19cm 110.76cm
Measure Bike Inseam
  • HOW TO MEASURE YOUR INSEAM FOR BIKE

  • 1 Stand straight with your back against the wall and feet shoulder-width apart.
  • 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
  • 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
