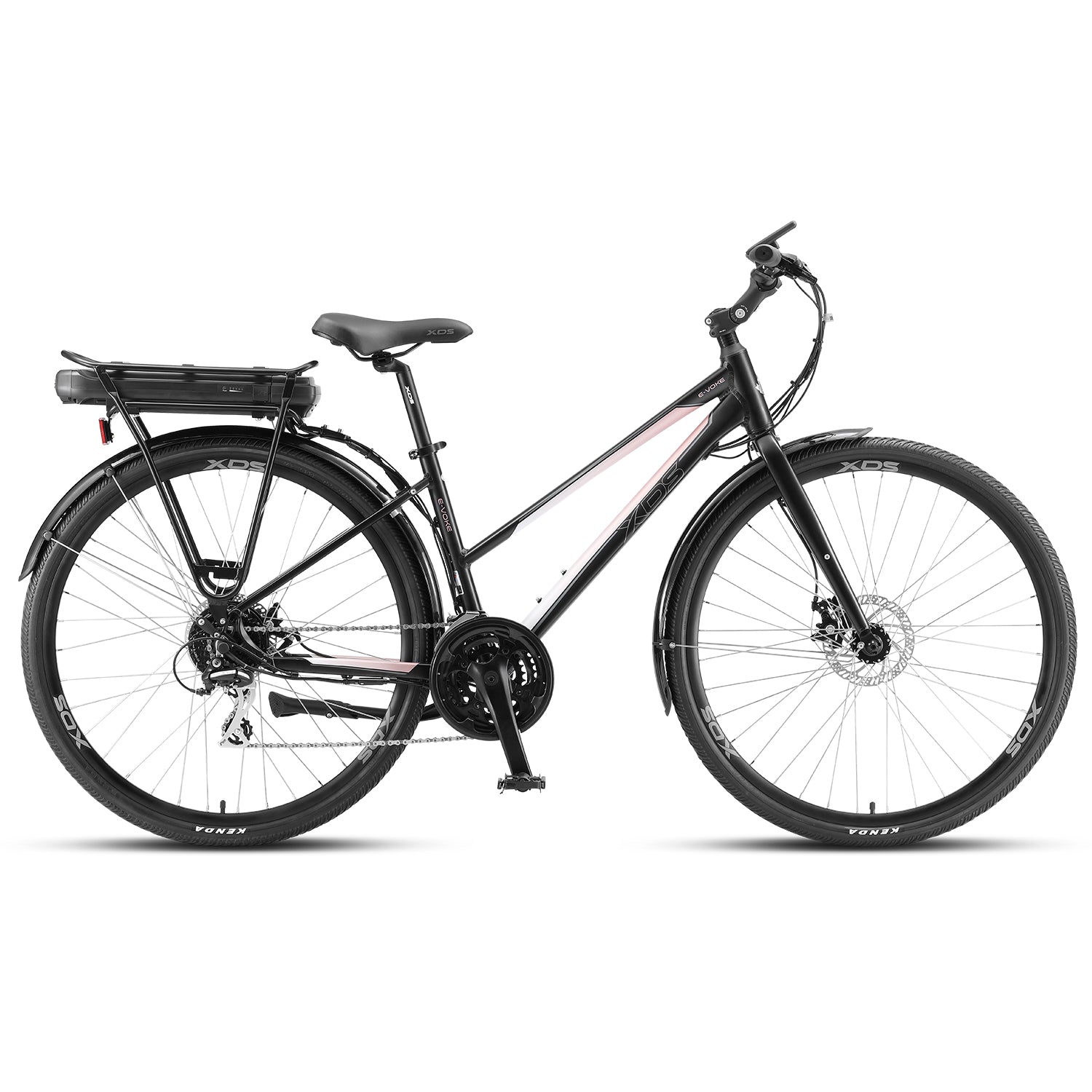

Lightweight Alloy Frame
Improve the agility and handling of your ride with a lightweight alloy frame, complete with the low step through style for easier mounting and dismounting.
Practical and Convenient
A range of additional features make the E-VOKE ideal for riding in any situation including front and rear PVC mudguards and an alloy rear rack, perfect for attaching bags on long rides.
Lithium Ion Battery
A great electric bike needs a great battery to work. The E-VOKE comes with a big 36v 2200mAh Panasonic cell Battery to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.
250W DC Brushless Hub Drive Motor
With a rear wheel Hub Drive Motor, climbing steep hills and tackling unfavourable terrain becomes effortless. Pedal Assistance System (PAS) will sense and amplify your pedalling effort by powering the front wheel to assist in speeds up to a maximum of 25km/h.
Be in Control
With a large backlit Bafang LCD Display and built-in controller, you'll be able to see your speed, trip stats (max speed, average speed, trip total and odometer),current power assist & battery charge. Cycle through 5 levels of power assist, with higher numbers providing more motor assistance during pedalling.
Superior Stopping Power
Feel secure coming to a stop with front and rear Tektro Disc Brakes. Riding in wet and muddy conditions, Disc Brakes offer far superior stopping power to rim wall brakes making them the best option for all season riding.
Shimano Altus 8-Speed
Face the shifting terrain of any urban environment with the 8 Speed Shimano drivetrain with Shimano Altus rear derailleur and Shimano Acera Rapid Fire 8 Speed shifters.
|Handlebar||XDS Alloy (Wï¼š620mm 6°Hï¼š30mm)|
|Grip||Rubber Comfort Grips|
|Stem||HL Alloy Adjustable. (Ï†28.6mm E:105mm H:41mm -10+50°Ï†25.4mm)|
|Seat post||XDS Alloy (Î¦27.2x350mm)|
|Seat Clamp||HL Anodised Alloy|
|Saddle||Cionlli Comfort Saddle|
|Pedals||Alloy Cage, PP Body, 9/16"|
|Front Brakes||Tektro Aries Cable Disc Brake|
|Rear Brakes||Tektro Aries Cable Disc Brake|
|Brake Levers||Tektro Auriga Cast Aluminium Two Finger Lever & Bracket|
|Gear Shifter||Shimano Acera ST-EF500 EZ-Fire Plus 8 Speed|
|Rear Derallieur||Front: Shimano Altus FD-M310 Rear: Shimano Acera MD-360|
|Freewheel||Shimano Altus CS-HG200 8 Speed Cassette Sprocket. 11-32t|
|Chainwheel & Cranks||Shimano Tourney FC-TY501, 175mm, 48X38X28T|
|Headset||(Ï†28.6xÏ†44xÏ†30mm 10PCS H=22)|
|Front Hub||KT Alloy (13Gx36H M9x100x108mm)|
|Rear Hub||See Electrical Specs below|
|Spokes||Stainless Steel (13G)|
|Tyre||Kenda Hybrid 700c x 40c|
|Rim||XDS Alloy (700C x 622 x 19 x 13G x 36H)|
|Motor||Bafang. RM G120.250.DC, 700C, 25km/h, 36V/250W,|
|Display||Bafang C10.UART LCD Display, DC 36V, 0-5 Modes|
|Sensor||Bafang. SR PA01.12.S|
|Charger Information||Phylion. CZ2AG7J24 Input: 100-240V 1.6A(MAX) 47/63HZ / Output:42V 2A|
|Motor Cable||Bafang. CR S105.250.SN. 700"ï¼Œ36V-250Wï¼Œ15Aï¼Œ25km/H, 0-5 level|
|Battery||Phylion. SF-03 CB5A0181 36V/11Ah|
Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
