RRP $2,499.00

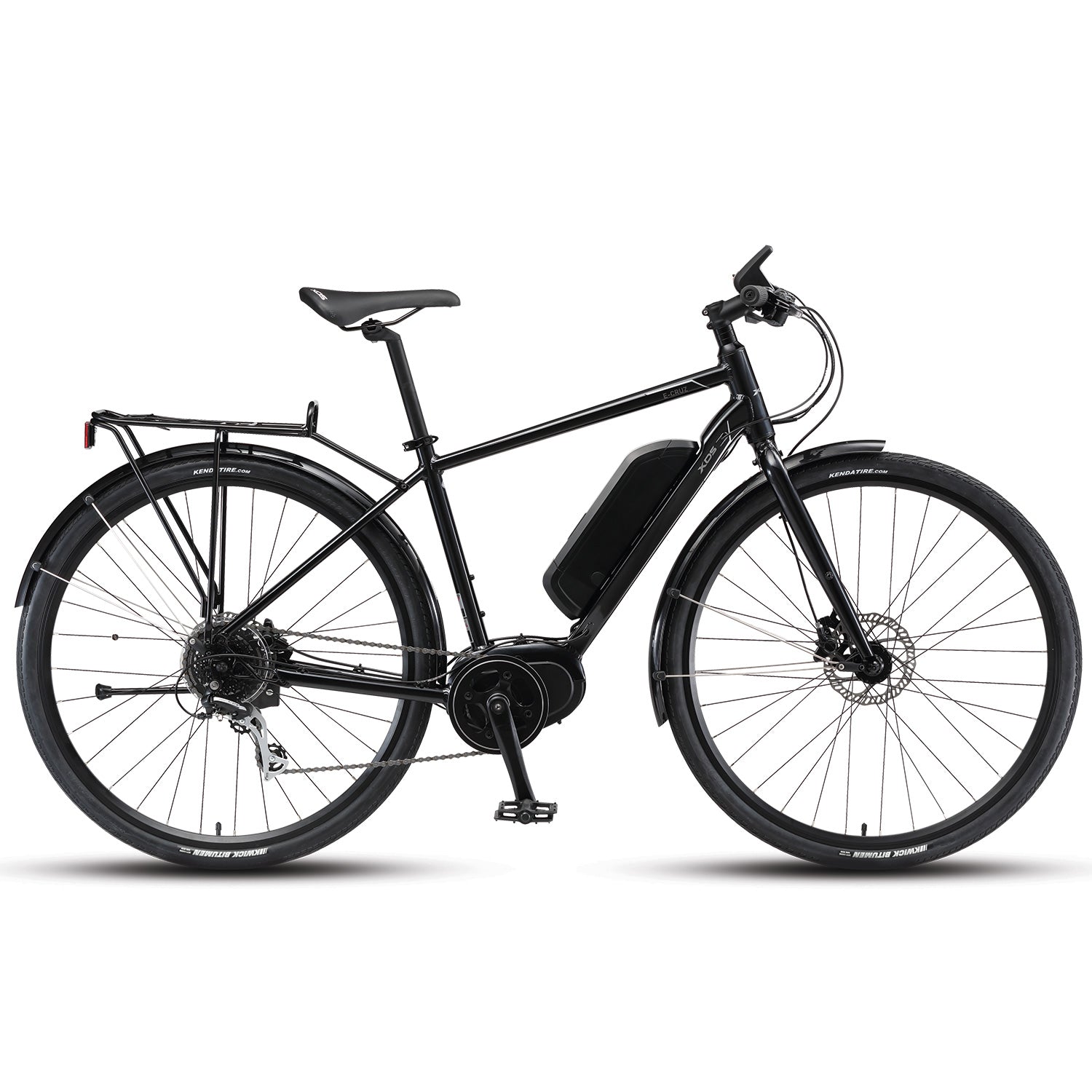

Stay fresh for next your destination with easy & effortless commuting on the XDS Men’s E-Cruz E-Bike. An adaptive pedal assist system (PAS) on the Bafang Mid-Drive MAX-01 Electric Motor system coupled with a 36V Li-Ion Panasonic battery lets you go further, and faster. On top of that, 8-speed Shimano Acera and Hydraulic Disc brakes for every-day reliability.

Colour: Black


Sunday mornings will never be the same after the XDS Men’s E-Cruz electric bike. After a big night, or still recovering from a long week at work, you’ll want to get out for a bit of fresh air. Ride down to the café, or perhaps travel even further with an electric motor capable of pedal assist up to distances of 75km. By giving you the extra stamina for commuting long distances to school or work, or Sunday morning recoveries, the E-Cruz keeps you fresh for the next task ahead and takes a lot of the strain out of your ride.

To be clear, you are still pedalling, but the brilliance of the Bafang Mid-Drive MAX-01 PAS is that it senses and amplifies your own pedalling by sending power through the drivetrain. The simple to use Bafang LCD display puts you in control of this function, letting you choose between 0-5 levels of power output from the motor. Mid-Drive motors are effectively geared as opposed to hub drive, making your ride even more efficient. Between the 5 levels of pedal assist and 8 speed Shimano Acera drivetrain, you’ll find the perfect gear ratio for any level of incline.

Come to a safe stop with superior hydraulic disc brake system that will not falter in any riding condition. Hydraulic braking provides better control and modulation of braking with less effort required. Find even greater control and manoeuvrability from t with a lightweight alloy frame

This is a commuter’s bike. With front and rear mudguards you can ride this bike in any conditions and preserve the cleanliness of your clothes, and with a rear rack find a more convenient place to store bags while you travel. The XDS E-Cruz is the perfect bike for regularly riding to school or work, but even more perfect for anyone getting a late start on their weekend.


Lightweight Alloy Frame

Improve the agility and handling of your ride with a lightweight alloy frame.

Practical and Convenient

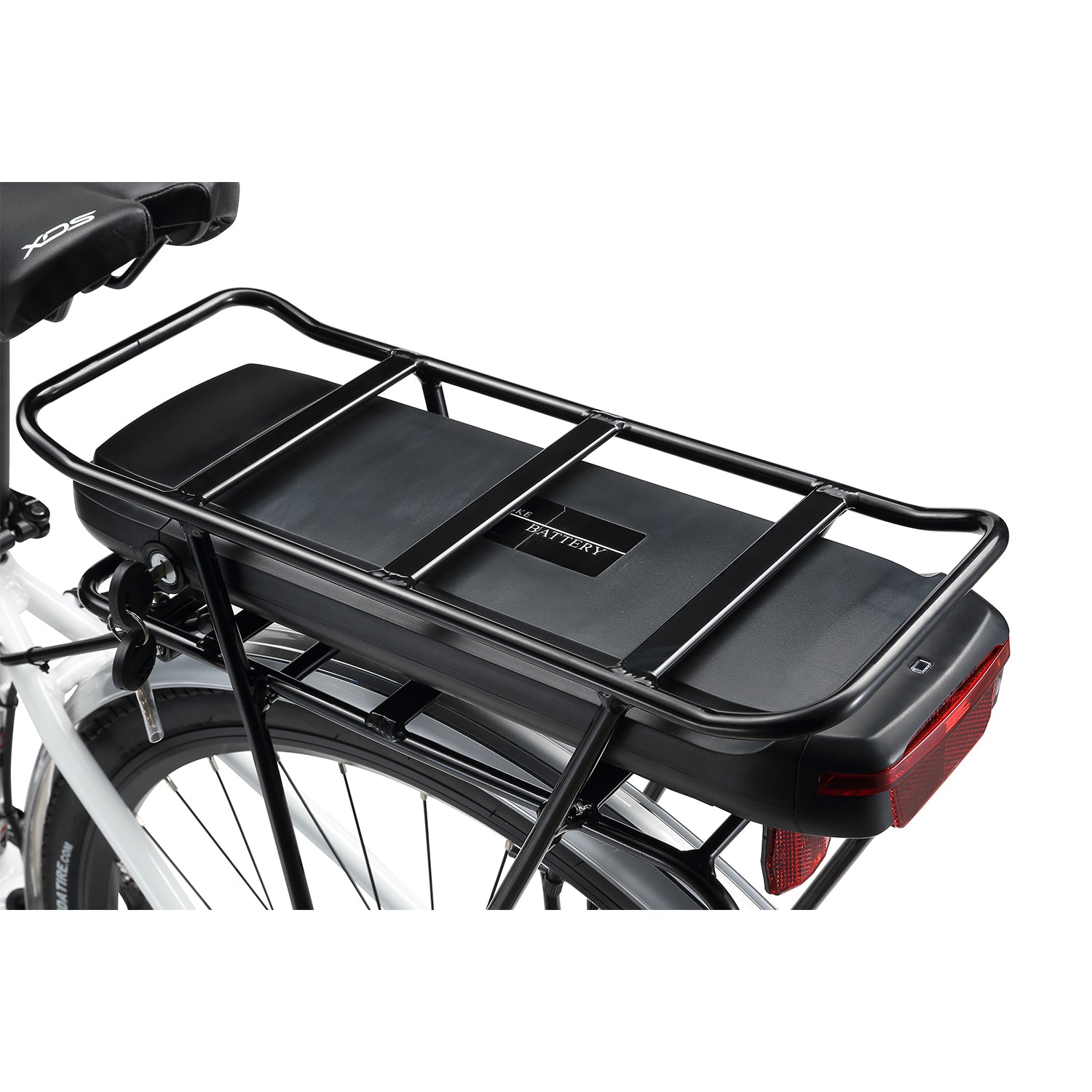

A range of additional features make the E-Cruz ideal for riding in any situation including front and rear PVC mudguards and an alloy rear rack, perfect for attaching bags on long rides.

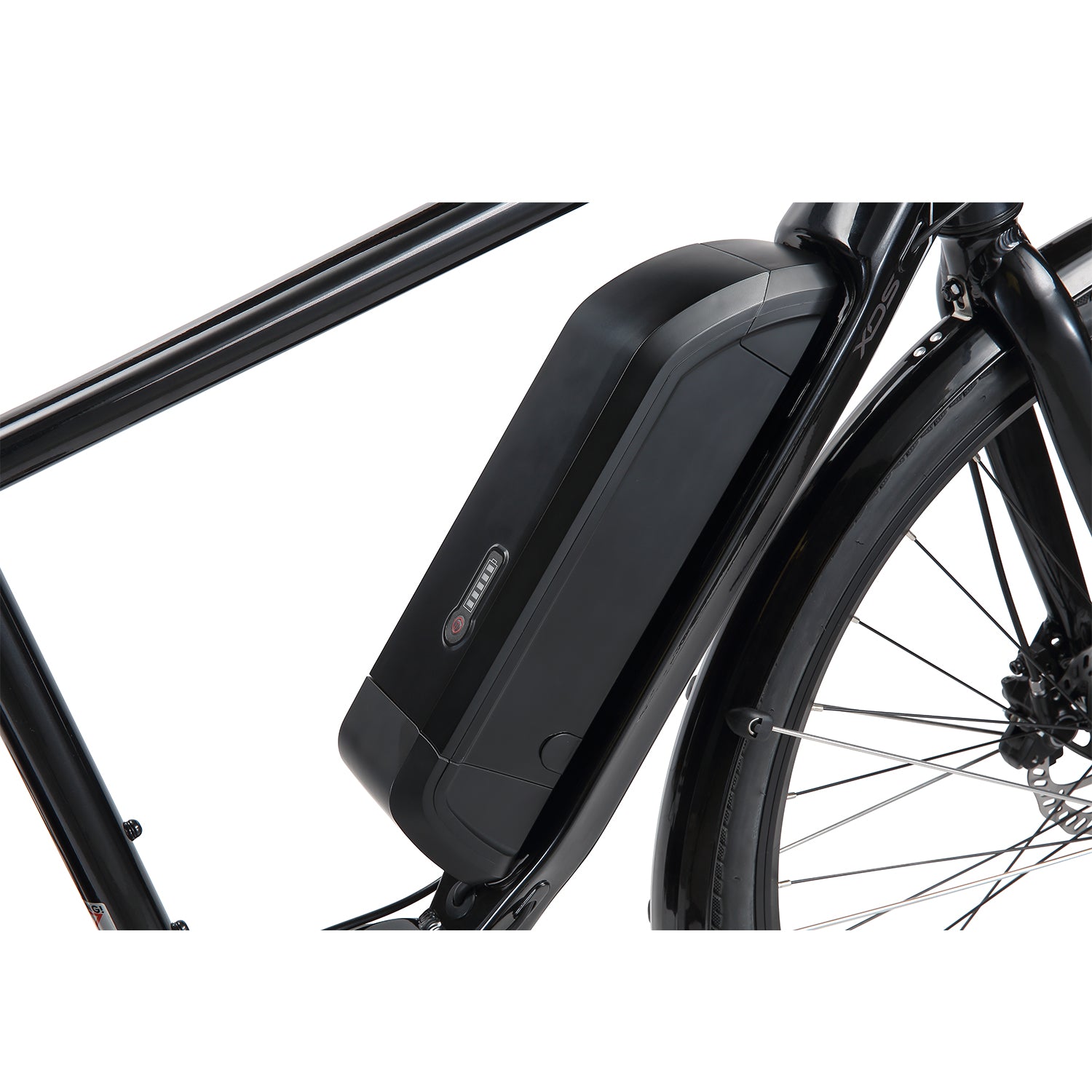

Lithium-Ion Battery with Panasonic Cells

A great electric bike needs a great battery to work. The E-Cruz comes with a big 36v 2900mAh Panasonic cell to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.

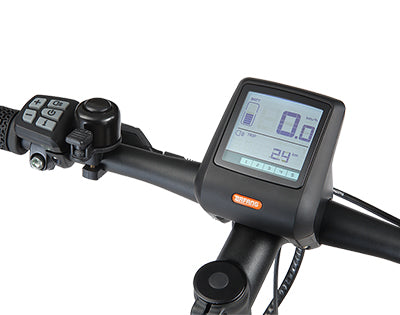

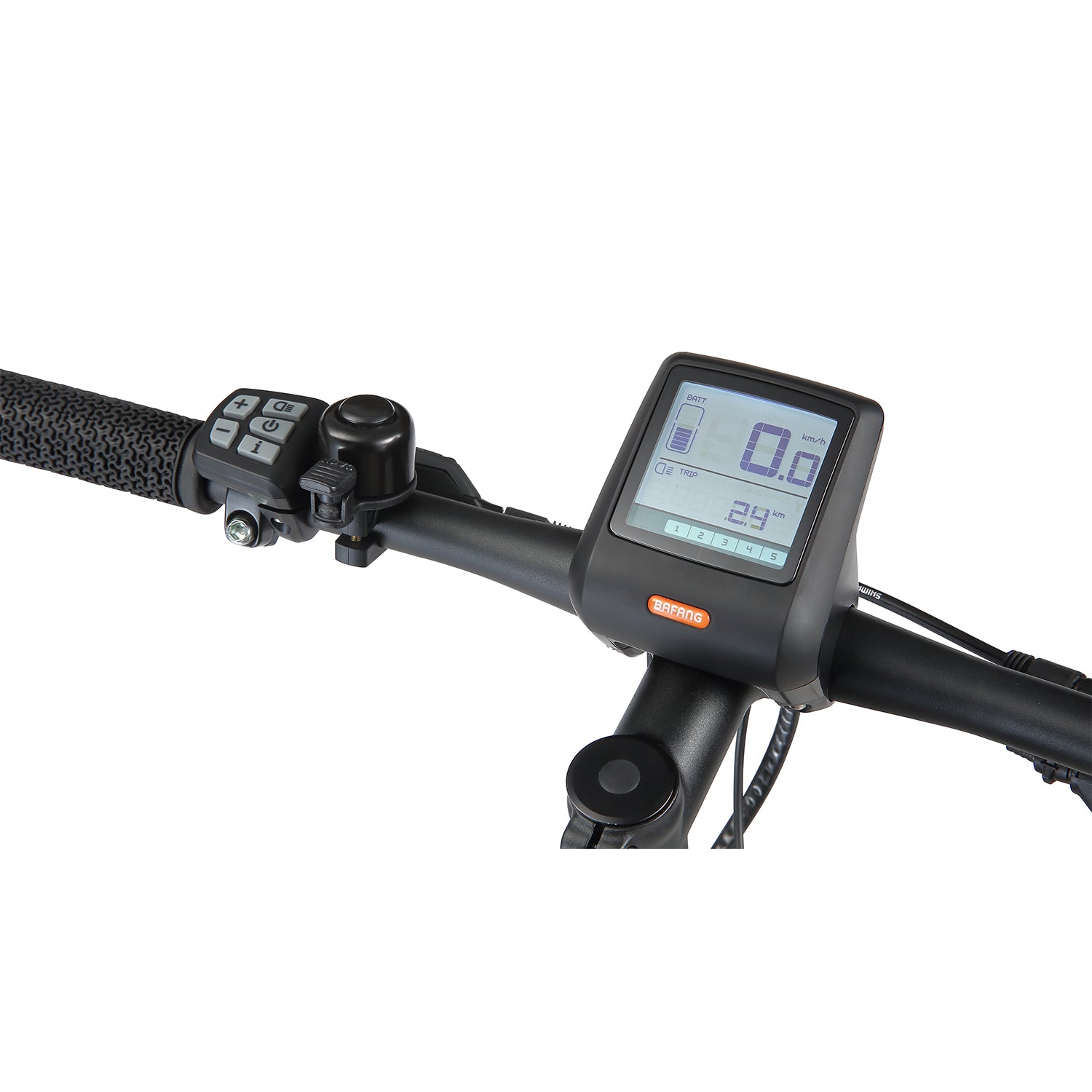

Be in Control

With a large backlit Bafang LCD Display and built-in controller, you'll be able to see your speed, trip stats (max speed, average speed, trip total and odometer), current power assist & battery charge. You get 5 levels of power assist, with the higher number providing more motor assistance during pedals.

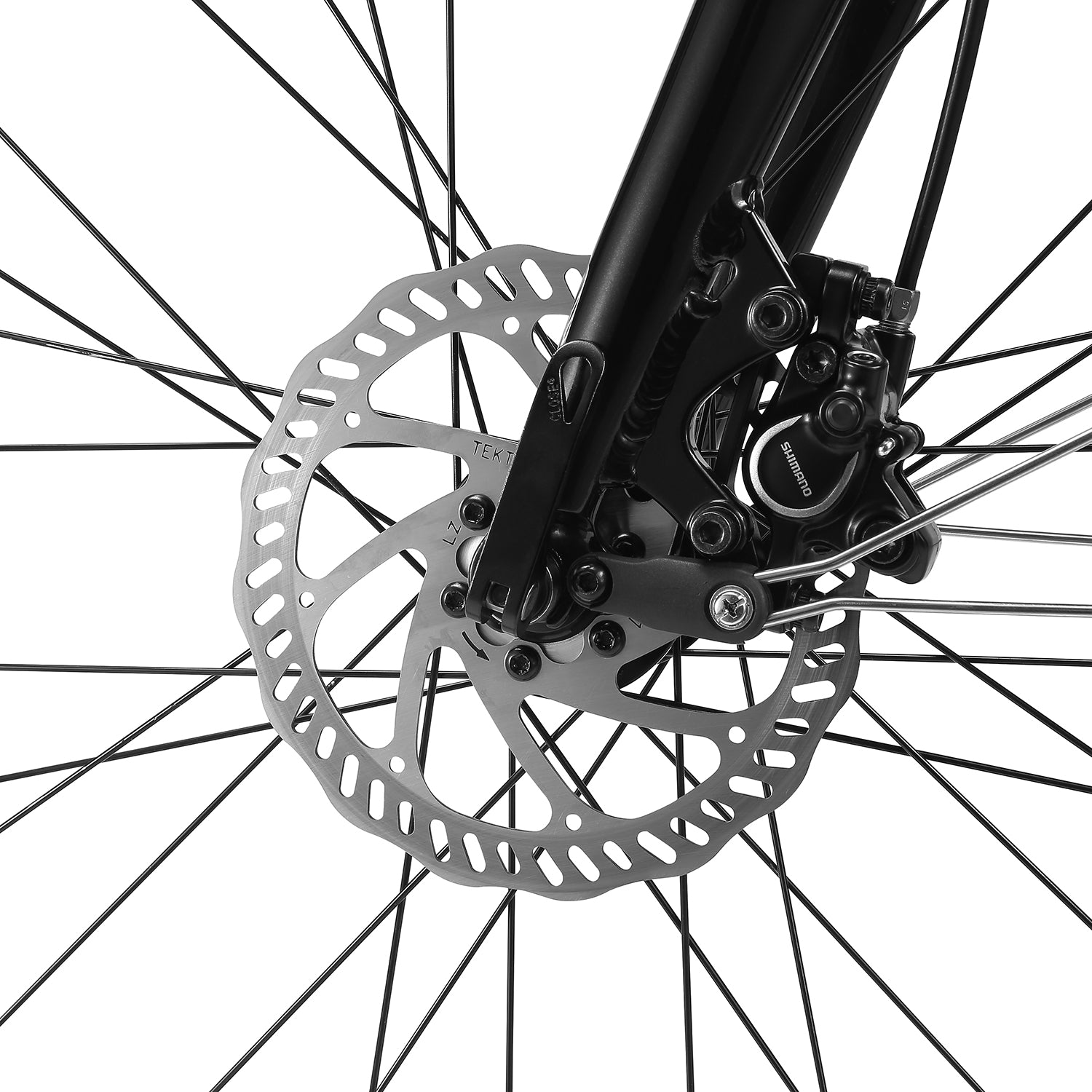

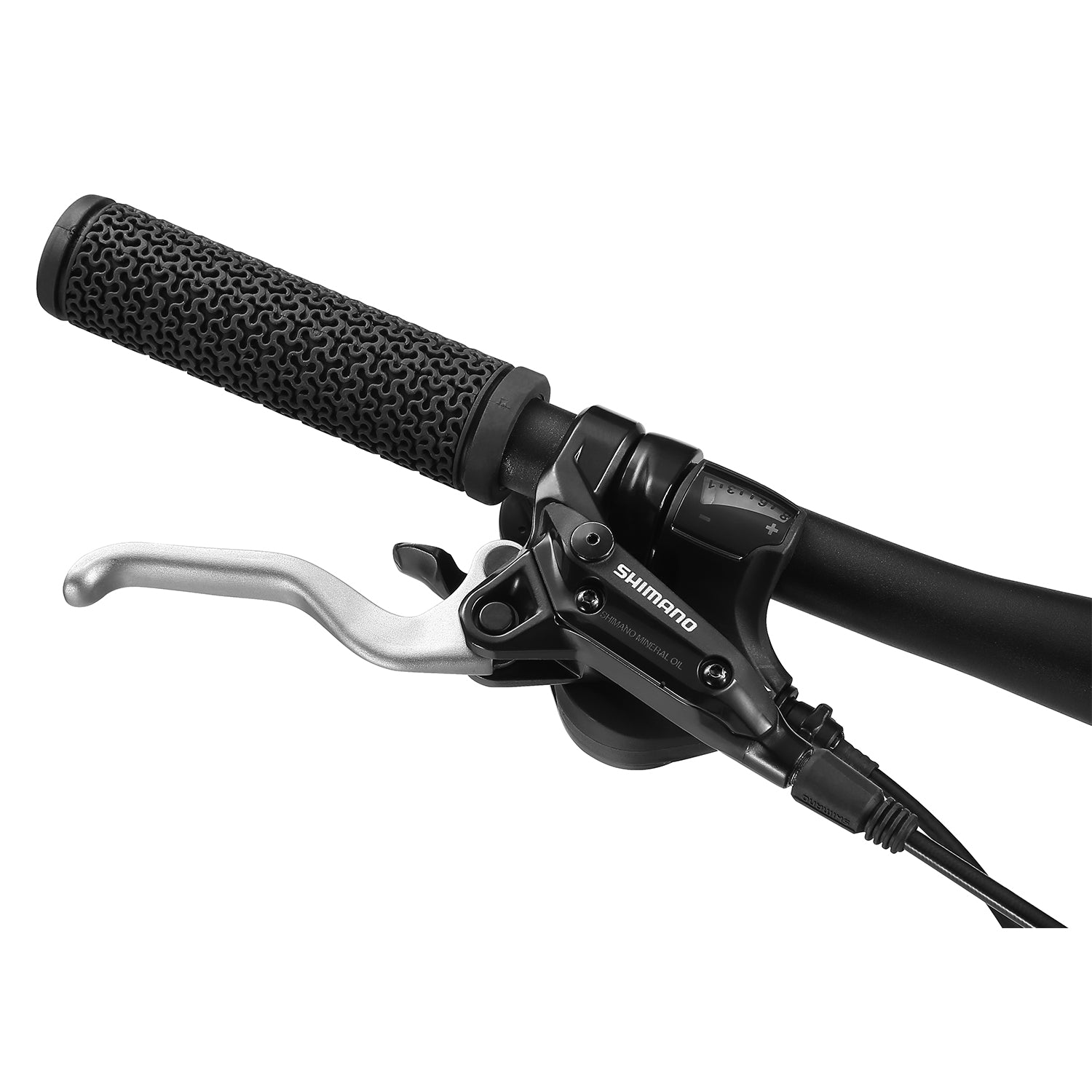

Superior Stopping Power

Experience the unparalleled stopping power of hydraulic disc brakes, capable of bringing you safely to a halt in any conditions. Hydraulic disc brakes are more reliable than their mechanical counterparts and afford riders greater control with less effort required.

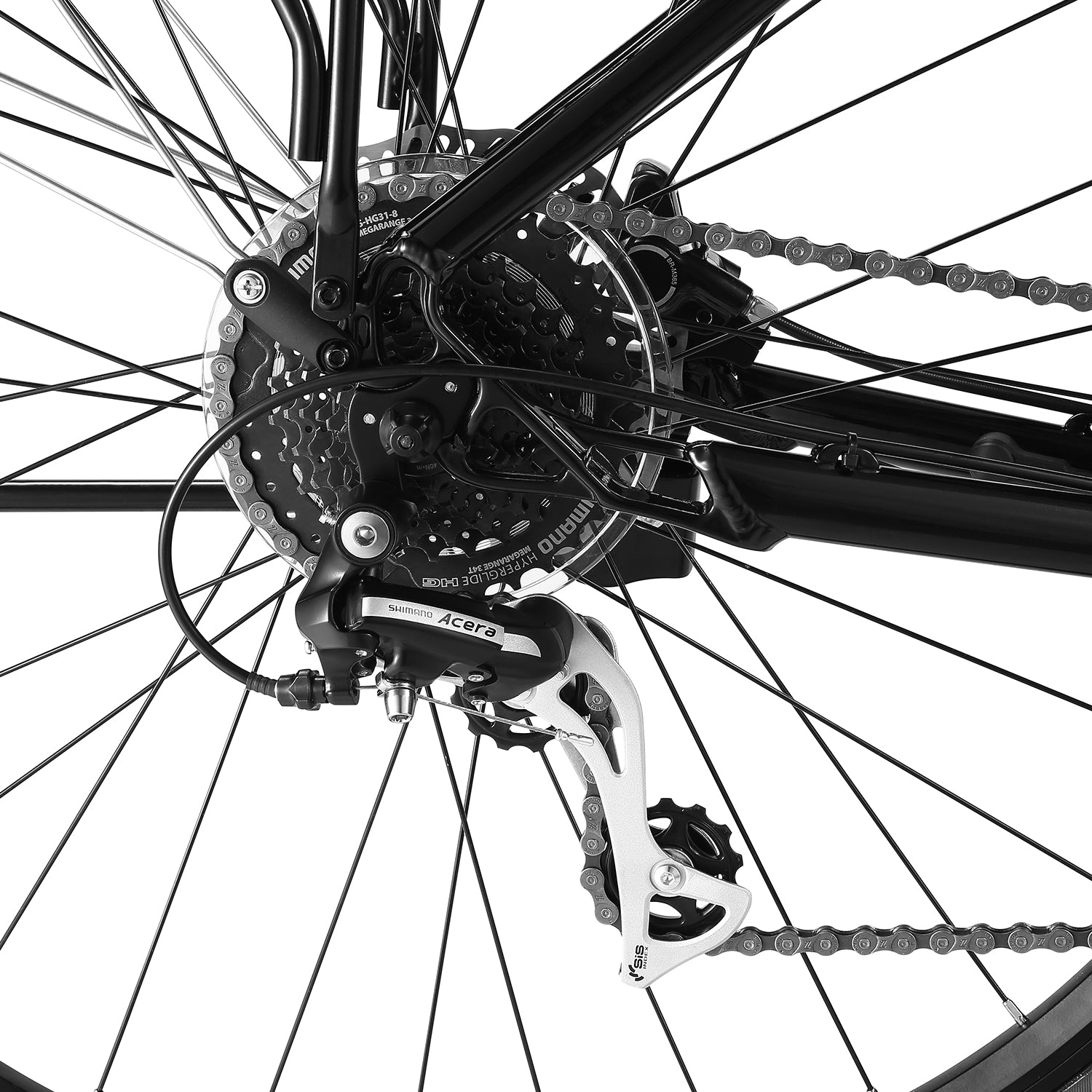

8 Speed Shimano Acera Drivetrain

Find consistent cadence climbing through just about any gradient with the Shimano Acera 8 Speed Drivetrain. Cycling between gears is a breeze with a Shimano Acera Rapid Fire Plus Shifter.

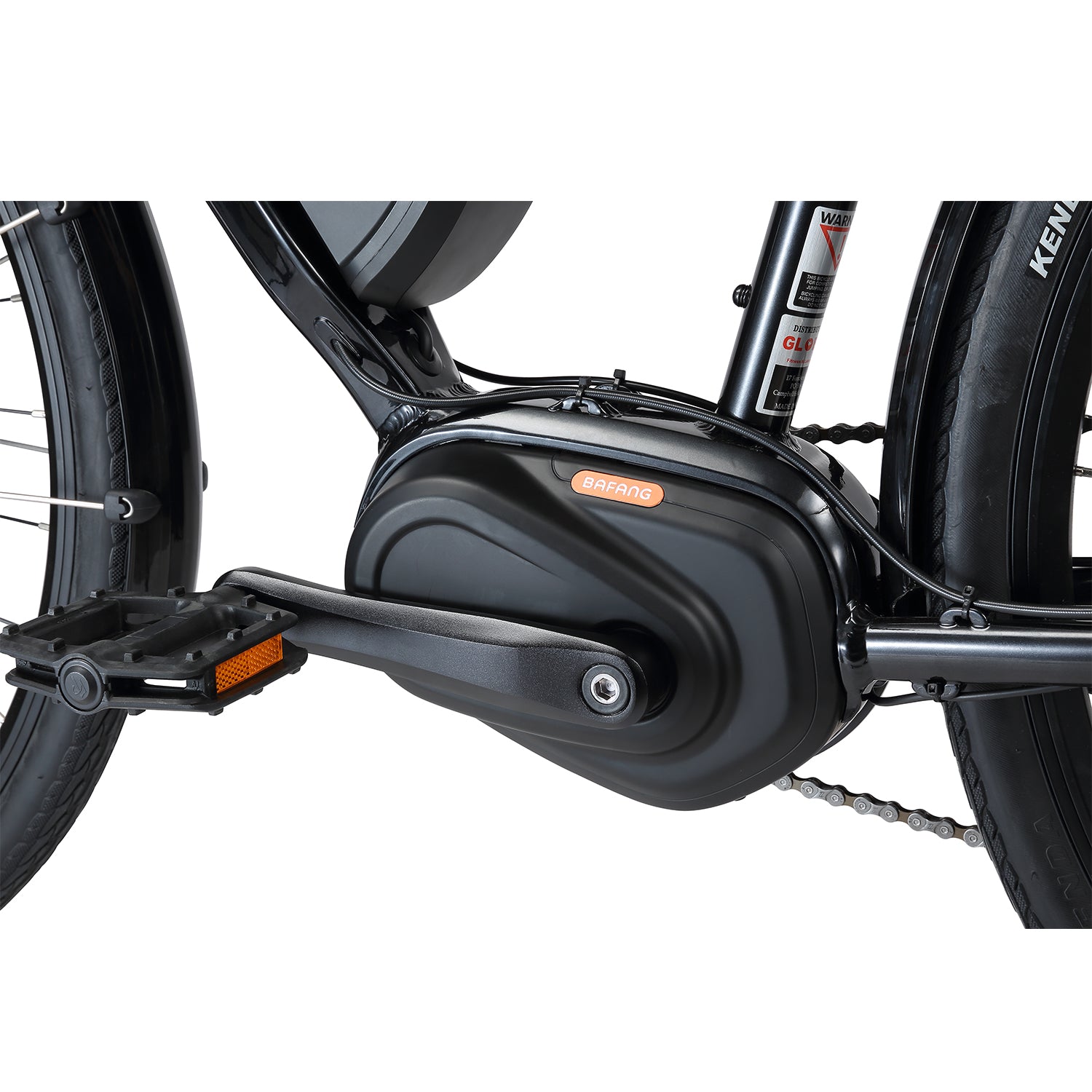

The Mid-Drive Advantage

Mid-Drive Systems are excellent for out-putting big amounts of torque, applicable for everyday commuting, climbing hills and powering through unfavourable terrain. Instead of individually powering the front or rear wheel through a single-speed conventional hub motor, the highly acclaimed Bafang MAX-01 allows you to take advantage of the bike's drivetrain, and sends power through the gearing to efficiently amplify your power seamlessly.

Mid-Drive Advantages:

• More predictable control and speed
• Equal Weight Distribution (Fitted in the middle)
• Better power efficiency


Gear Shift Sensor

When shifting gears, riders should reduce torque through the drivetrain for a smoother transition. Typically, electric bikes emit torque five times higher than riders are capable of producing on their own, so regularly shifting gears at high speeds can be damaging to your drivetrain. The Gear Sensor briefly cuts out the motor when changing gears to provide a more secure and prolong the life of your drivetrain.


Colours Black
Frame Sizes 16", 18.5", 20
Frame XDS 700C Alloy
Fork XDS Alloy (CR/MO 700C 28.6)
Handlebar XDS Alloy, Black (W: 660mm 6° 31.8mm)
Grip Rubber, Black (XH-G107, 130mm)
Stem XDS Alloy, Black (φ28.6mm E:80mm H:41mm 7° ï¿ 31.8mm)
Seat Post XDS Alloy (φ27.2x350mm)
Seat Clamp XDS Alloy (31.8mm)
Saddle YBT Black
Pedals FP with Ball Bearing (9/16")
Front Brakes Tektro Hydraulic Brake (TR160-7(ï¿ 160mm))
Rear Brakes Tektro Hydraulic Brake (TR160-7(ï¿ 160mm))
Brake Levers Tektro Alloy Hydraulic Brake Levers
Spokes Stainless Steel (13G)
Rear Shifter Shimano Acera Rapid Fire Plus SL-M360 8 Speed
Rear Derallieur Shimano Acera RD-M360 8 Speed
Freewheel Shimano HG31 (11-34T 8-SPD)
Chainwheel & Cranks Bafang (3/32"x32T, 49mm, Cranks L/R: 9/16",L=170L,W/M8x1.0Px15Lx1)
Chain Steel (1/2"x3/32"x116L)
Headset Iron/Alloy (φ28.6xφ44xφ30mm 10PCS H=22mm HW-20)
Front Hub Alloy, KTMD7F (14Gx32H M9x100x108mm KT-204N 112mm)
Rear Hub Alloy, KTMD4R (14Gx32H M10x135x145mm 8/9/10-SP KT-205N 151mm)
Mudguards PVC (SP-50A-700C-7A F/R 700C W=50mm ï¿ 3.2mm)
Bell Alloy/Plastic (ï¿ 22.2)
Rack Alloy (700C H:306.7/397.2mm 240mm )
Kickstand Iron
Tyre 700Cx38C A/V 30TPI
Rim Alloy (700Cx622x19x14Gx32H A/V H=21)
Electrical Components
Motor BAFANG MM G330.250, 36V/250W, Limit 25km/h, Black
Battery 36V/11.6Ah, 2900mAh cell, W/Intelligent protection board,W/communication, AU
Display Bafang LCD Display, DC 36V, 0-5 Modes, CAN, W/Walk Boost, W/light switch
Charger Information SSLC084V42XH GS CE 100-240V 1.6A(MAX)50/60HZ Output:42V 2A AU
Motor Cable MM G33 power connection (1000mm, 1000mm)
Sensor Bafang, 1 Pulse, 5V, 500mm

Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.

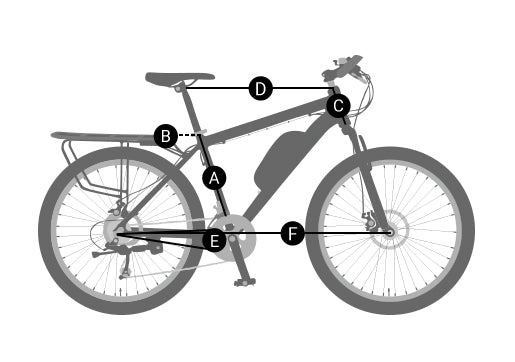

Bike Size Guide

Alloy Frame
Frame Size Number16"M18"M20"M
Wheel Size700c700c700c
A - Seat Tube40.6cm40.6cm50.8cm
B - Seat Tube Angle73.5°73.5°73.5°
C - Head Tube Length14.5cm14.5cm16cm
D - Effective Top Tube56cm56cm59cm
E - Chainstay length46.3cm46.3cm46.3cm
F - Wheelbase107.89cm107.89cm110.98cm
Measure Bike Inseam

  • 1 Stand straight with your back against the wall and feet shoulder-width apart.
  • 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
  • 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
