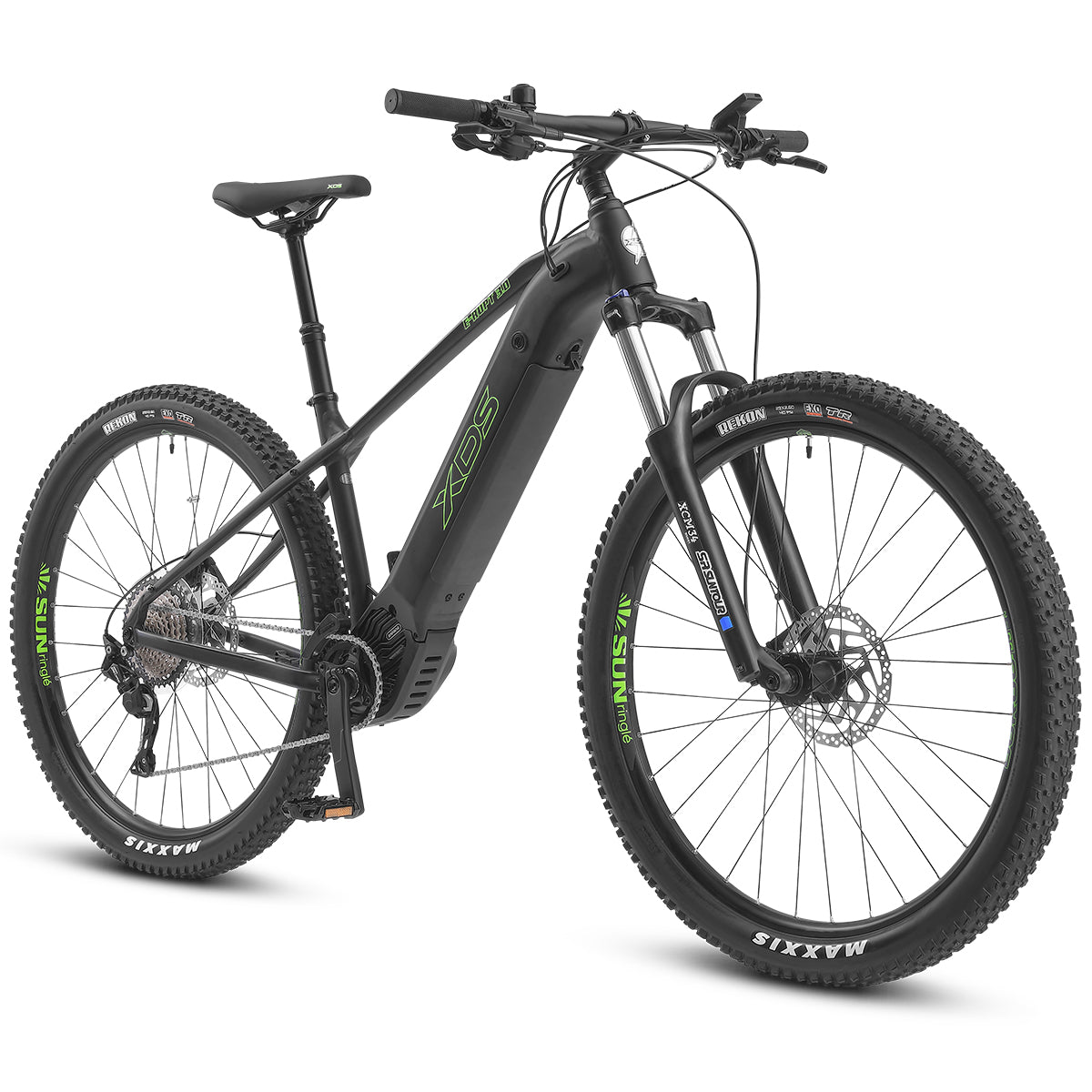

E-Rupt 3.0 MTB

E-Rupt 3.0 MTB

RRP $3,999.00

Colour: Stealth Black


Frame Size S 390, M 420, L 450, XL 490
Frame XDS 6061 Alloy
Fork Suntour XCM34 Boost LO, 130mm travel
Handlebar Alloy, 780mm wide; 5mm Rise
Grip MTB
Stem Alloy 31.8mm, E: 45mm
Seatpost Dropper Post, internal routing
Seat Clamp Alloy
Saddle Black steel rail, MTB
Gear Shifter Shimano Deore 10 speed
Front Brake Shimano MT 400 Hydraulic with 1800mm rota
Rear Brake Shimano MT 400 Hydraulic with 1800mm rota
Freewheel Shimano HG-500-10, 10speed 11-42t
Pedal MTB
Chainwheel Bafang Max 38t
Bottom Bracket Bafang
Headset Alloy intergrated
Front Hub Promax sealed cartridge, 110 x 15
Rear Hub Promax sealed cartridge 148 x 12
Tyre Maxxis Reckon 29 x 2.6 EXO/TR, 60tpi
Rim Sunringle Duroc 35, STR tubeless, 32mm internal width
Bell Alloy flick
Chainguard N/A
Kickstand N/A

Electrical Components

Motor Bafang G520, 95Nm, 250 watt
Battery Bafang F03, 11.6Ah, 36v, 450Wh
Controller Bafang
Display Bafang DP C230 LCD displaywith thunb control
Charger DLG Charger 36v, 3A

Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.

Bike Size Guide

Alloy Frame
Frame Size Number 16" 18" 20"
Wheel Size 27.5" 27.5 27.5c
A - Seat Tube 40.6cmcm 45.7cm 50.8cm
B - Seat Tube Angle 75° 75° 75°
C - Head Tube Length 13cm 13cm 13cm
D - Effective Top Tube 61.5cm 65cm 68.5cm
E - Chainstay length 45cm 45cm 45cm
F - Wheelbase 120.38cm 123.89cm 127.43cm
Measure Bike Inseam

  • 1 Stand straight with your back against the wall and feet shoulder-width apart.
  • 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
  • 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
