RRP $749.00

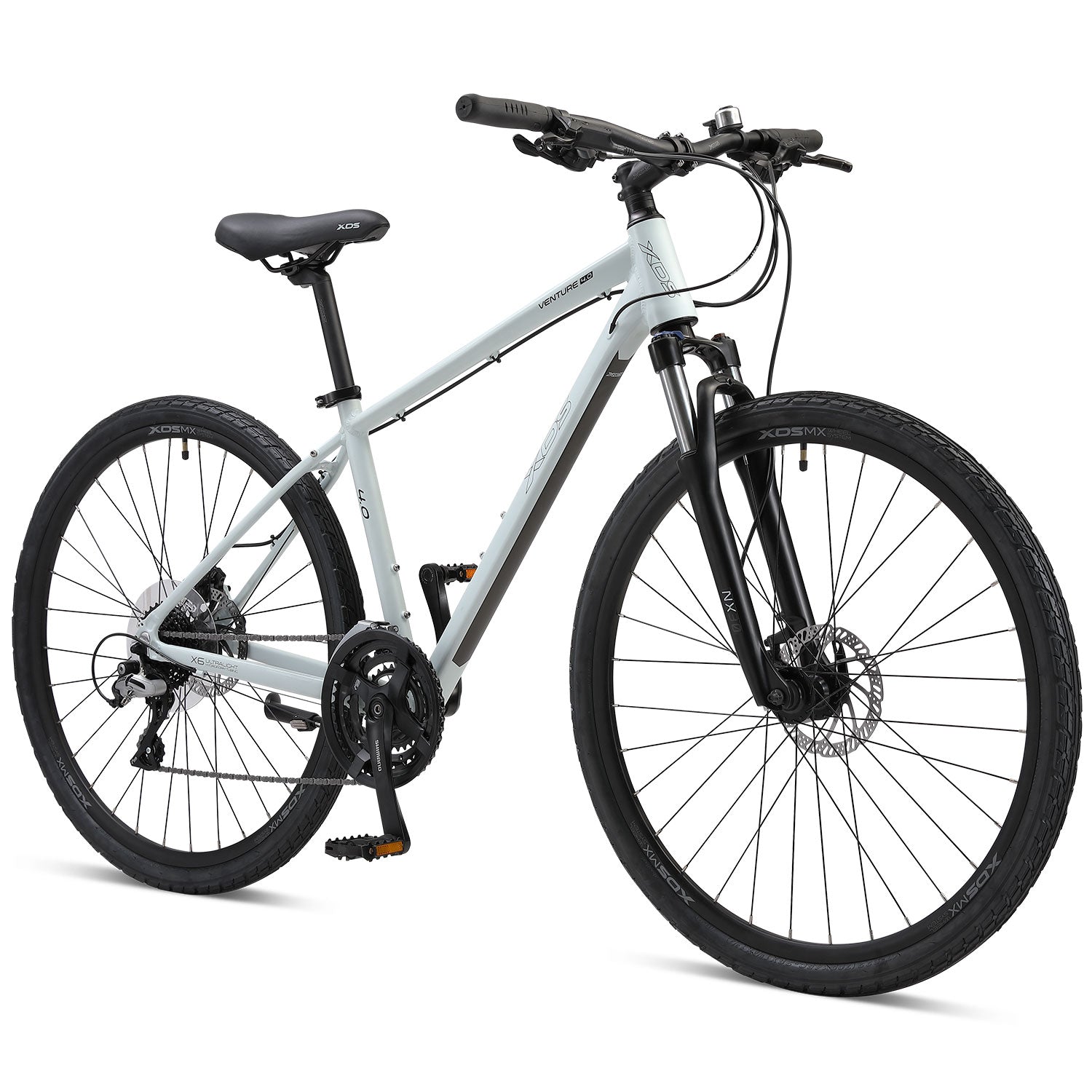

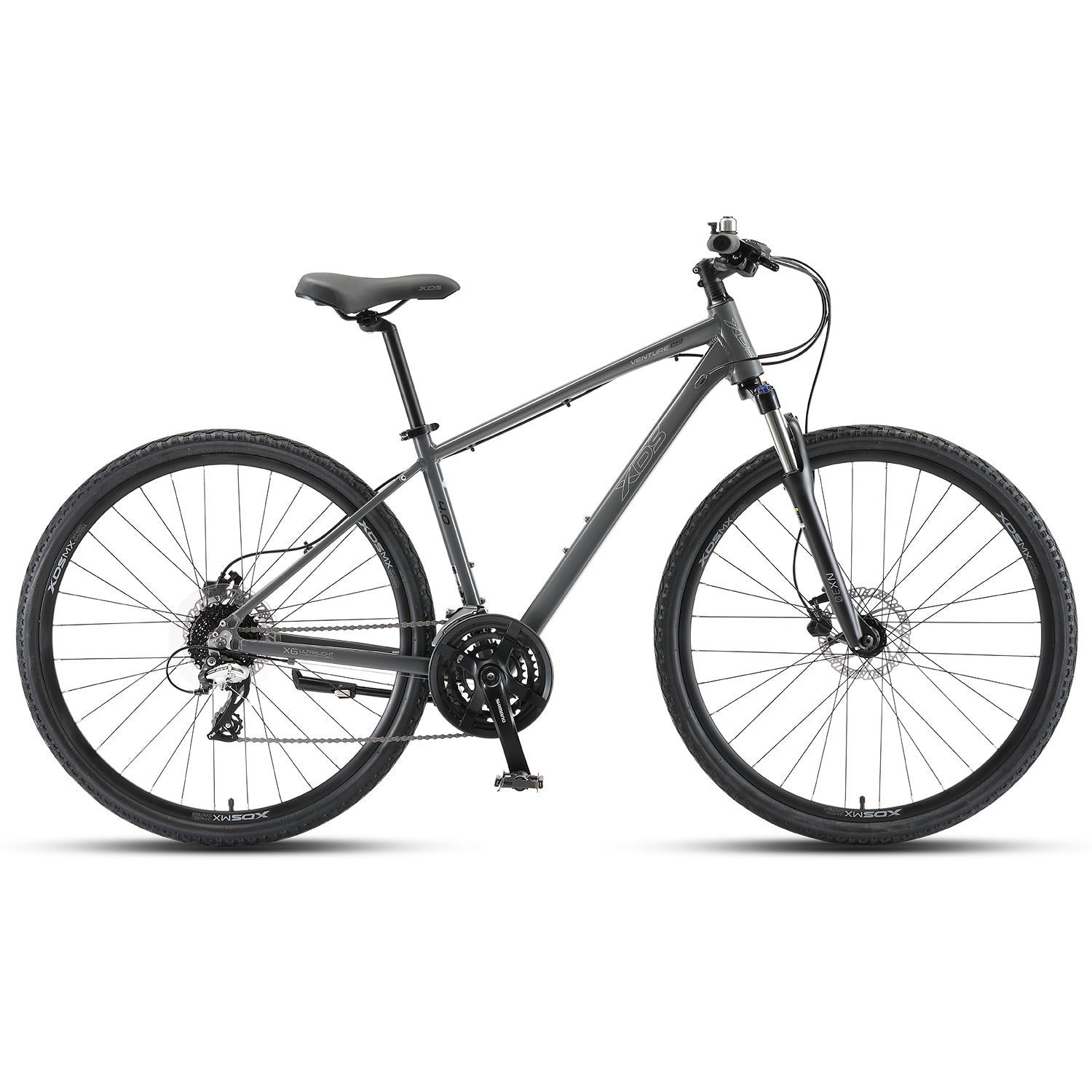

Venture 4.0 is the ultimate sports bike. Complete with 700c x 40 tyres for increased comfort you’ll find better protection against bumps and punctures. The durable, lightweight 6061 alloy frame provides an efficient pedal system. Brake with confidence with the reliable hydraulic Shimano disc brakes. Tackle the terrain with serious suspension to absorb the bumps, whilst relying on the 24-Speed Shimano Drivetrain to get you over all inclines.

XDVENTURE4-21NP-15
Size:
Colour: News Print

Features

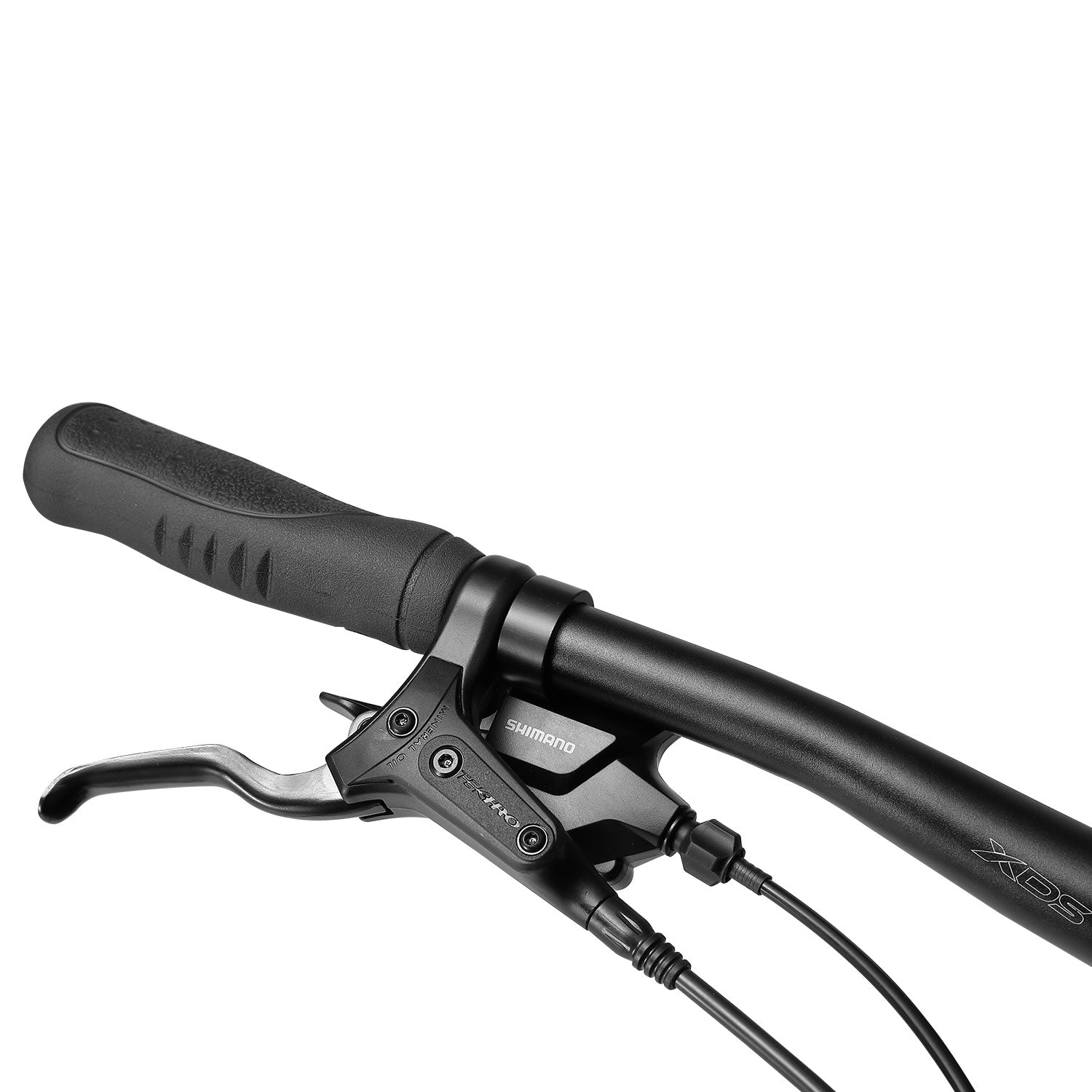

Reliable Braking

Stop comfortably and smoothly with front and rear hydraulic Shimano disc brakes. These brakes are simple, reliable, and easy to maintain.

Shimano 27-Speed Altus Drivetrain

Find the flexibility to tackle a range of inclines with a Shimano 27-Speed Altus Drivetrain. You’ll be able to find a suitable gear ratio to have a smooth cadence over ever changing inclines and flat roads.

Serious Suspension

For a comfortable ride, Venture 4.0 offers smooth suspension to absorb all bumps on the terrain you encounter.

Specifications

Frame XDS 6061 Alloy
Fork XDS NX30 Suspension, 65mm travel
Handlebar XDS Alloy 31.8 680mm wide
Grip Comfort Rubber
Stem XDS A-Head 60mm
Seatpost Alloy micro adjust 27.2 x 350mm
Seat Clamp Alloy 31.8mm with Quick Release
Saddle Comfort style
Gear Shifter Shimano M315 Rapidfire, 3speed
Gear Shifter Shimano M315 Rapidfire, 8 speed
Front Derailleur Shimano Altus M310 front derailleur
Rear Derailleur Shimano Altus M310 Rear Derailleur 8-speed
Front Brake Tektro M275 Hydraulic disc with 160mm rota
Rear Brake Tektro M275 Hydraulic disc with 160mm rota
Freewheel Shimano CS-HG318 - 8 Speed, 11-32t
Pedal Plastic/Steel with bearings
Chainwheel Shimano TY501, 48x38xx28T with chain guard
Chain 1/2 x 3/32 x 1116L
Bottom Bracket Cartridge
Headset Alloy/Steel integrated
Front Hub Alloy 32H Quick Release Disc
Rear Hub Alloy 32H Quick Release, Disc, Freehub
Spokes 14G Stainless Steel with brass nipples
Tyre 700c x 45 Multi tread
Rim XDS XD211 32H 700c Alloy
Bell Alloy flick
Kickstand Alloy

Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.

Bike Size Guide

Alloy Frame
Frame Size Number 15" 17" 19" 21"
Wheel Size 700c 700c 700c 700c
Suggested Height 165-175cm 175-185cm 185-195cm 195cm+
Minimum Suggested Inseam 74cm 78cm 81cm 84cm
A - Seat Tube 38.1cm 43.2cm 48.3cm 53.3cm
B - Seat Tube Angle 73.5° 73.5° 73.5° 73.5°
C - Head Tube Length 13cm 13cm 13cm 13cm
D - Effective Top Tube 57.05cm 57.05cm 57.05cm 57.05cm
E - Chainstay length 45.5cm 45.5cm 45.5cm 45.5cm
F - Wheelbase 109.11cm 109.11cm 109.11cm 109.11cm
G - Standover 72cm 76cm 79cm 82cm
Measure Bike Inseam
  • HOW TO MEASURE YOUR INSEAM FOR BIKE

  • 1 Stand straight with your back against the wall and feet shoulder-width apart.
  • 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
  • 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
