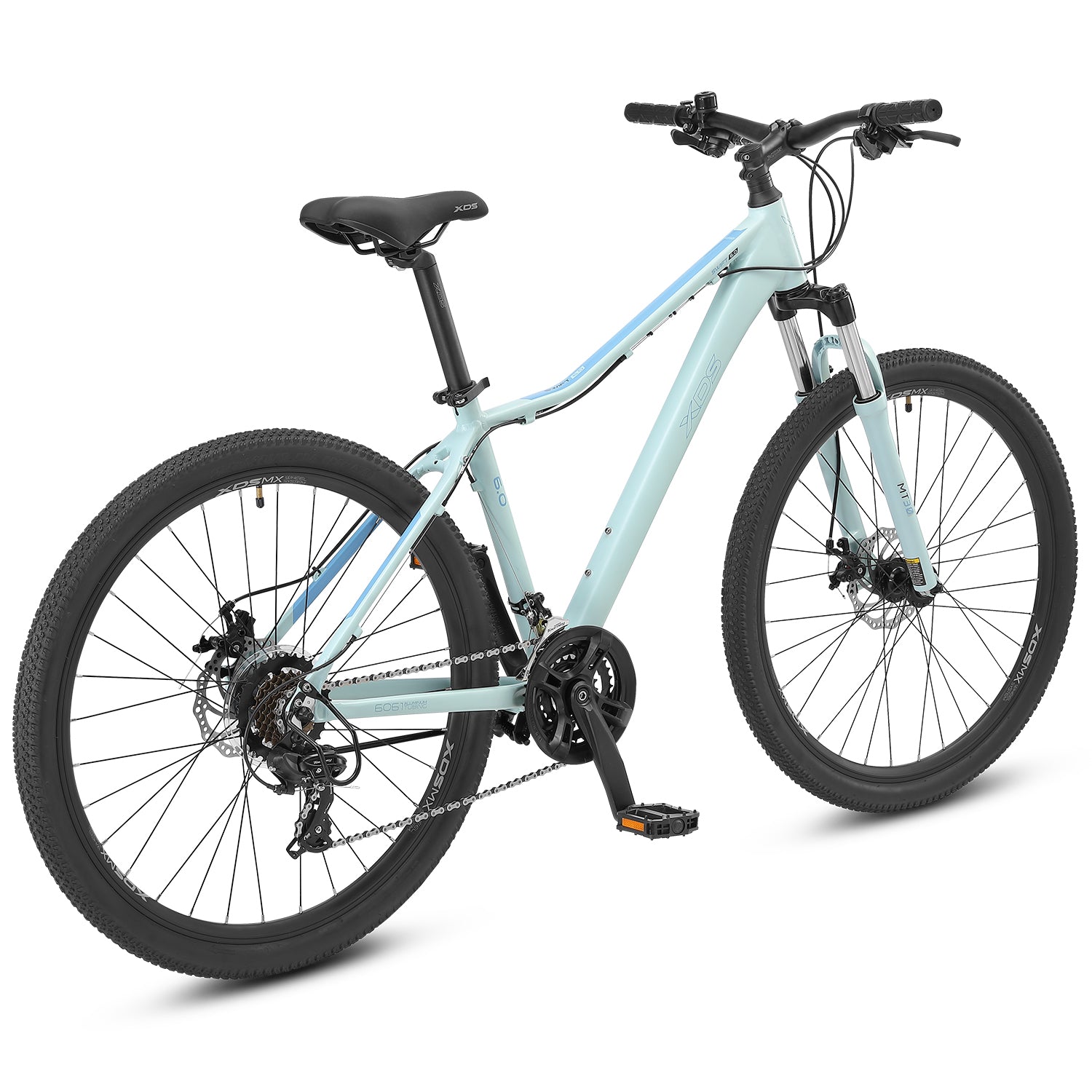

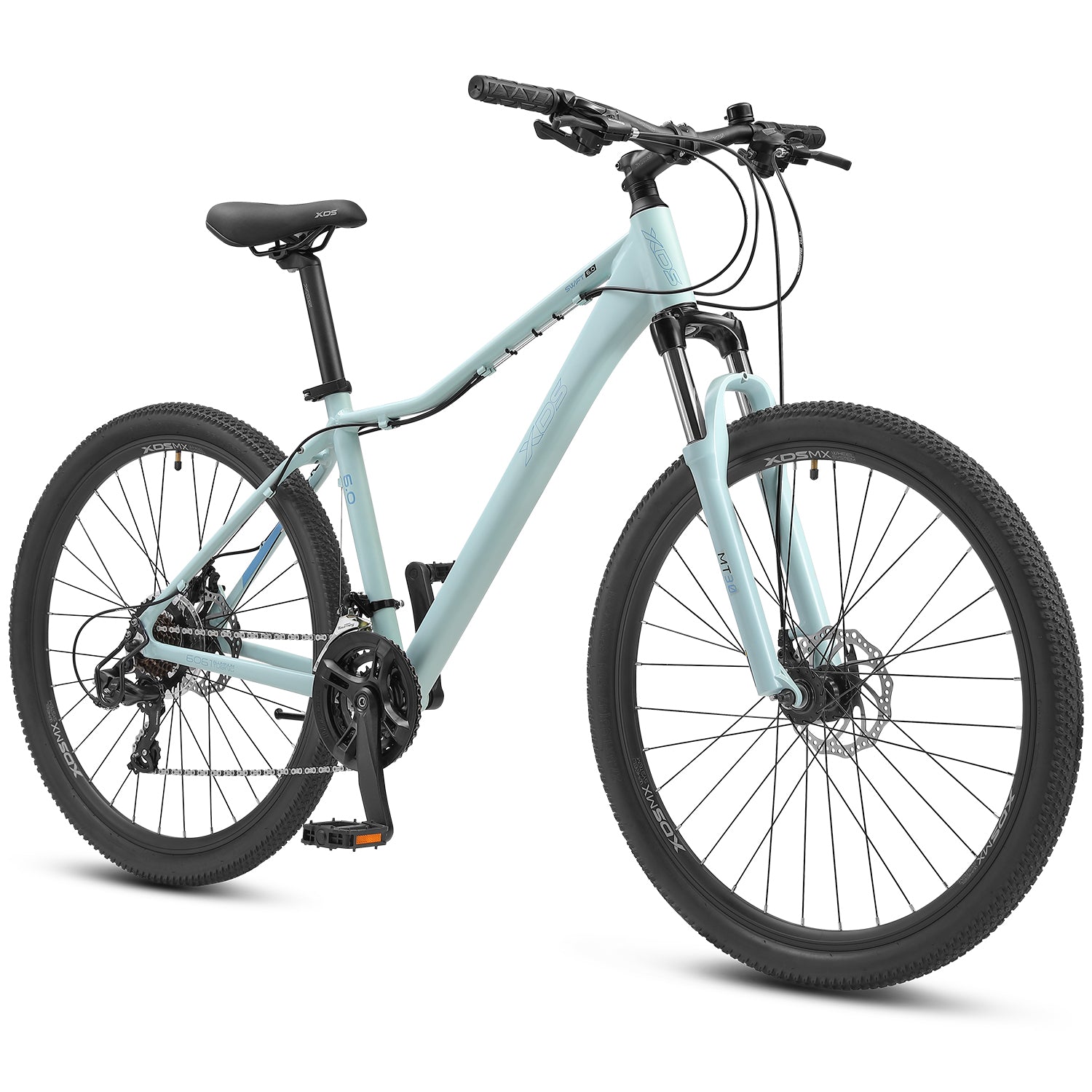

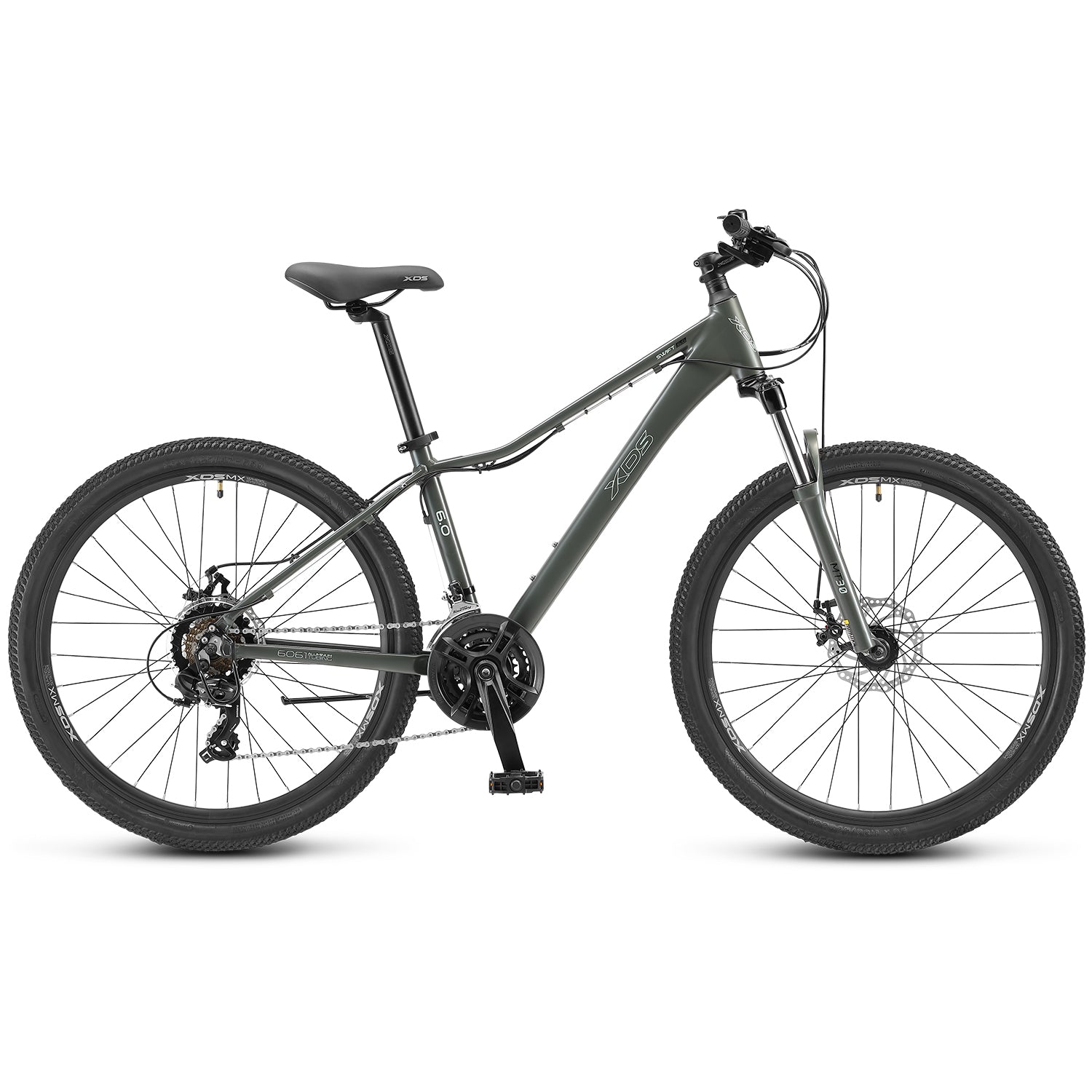

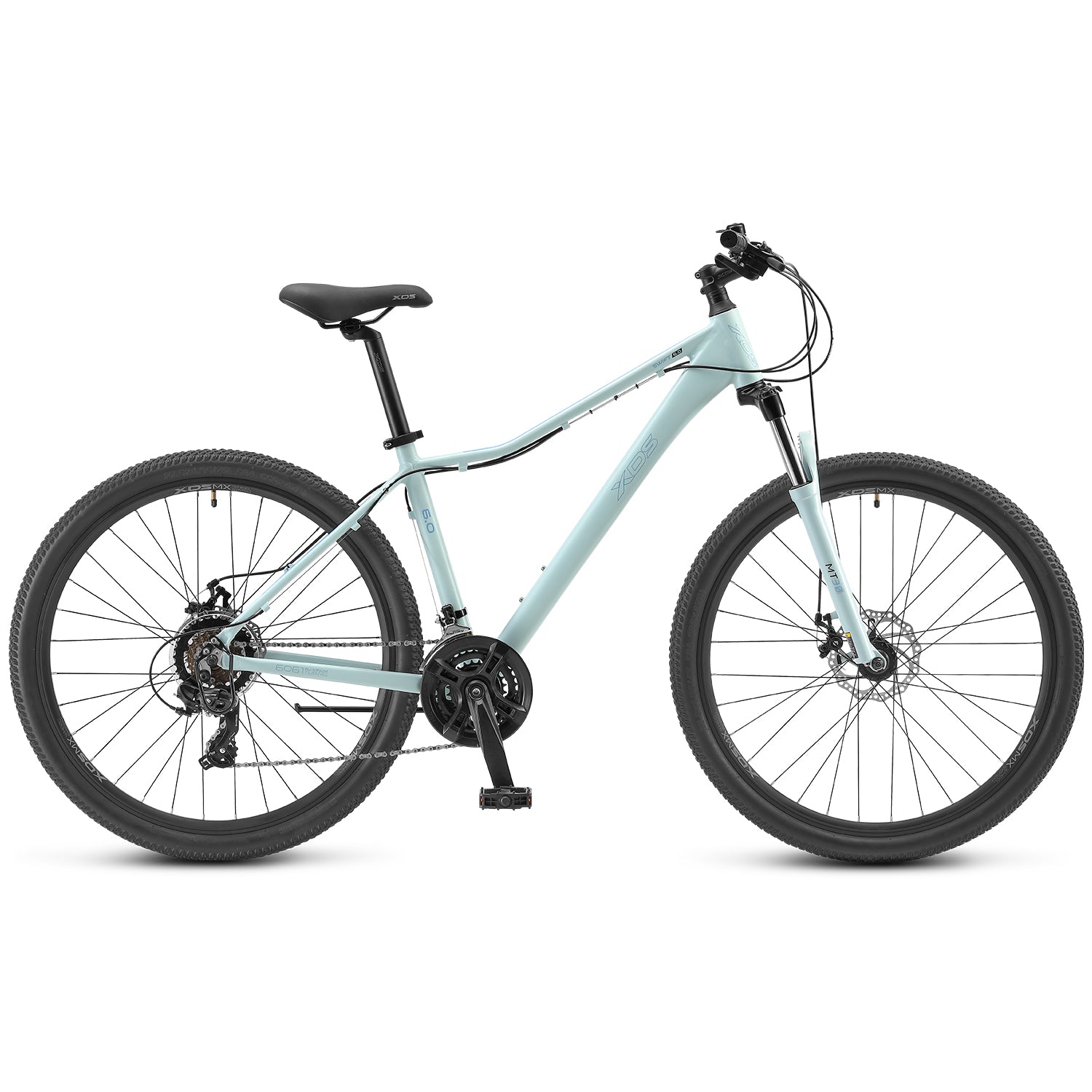

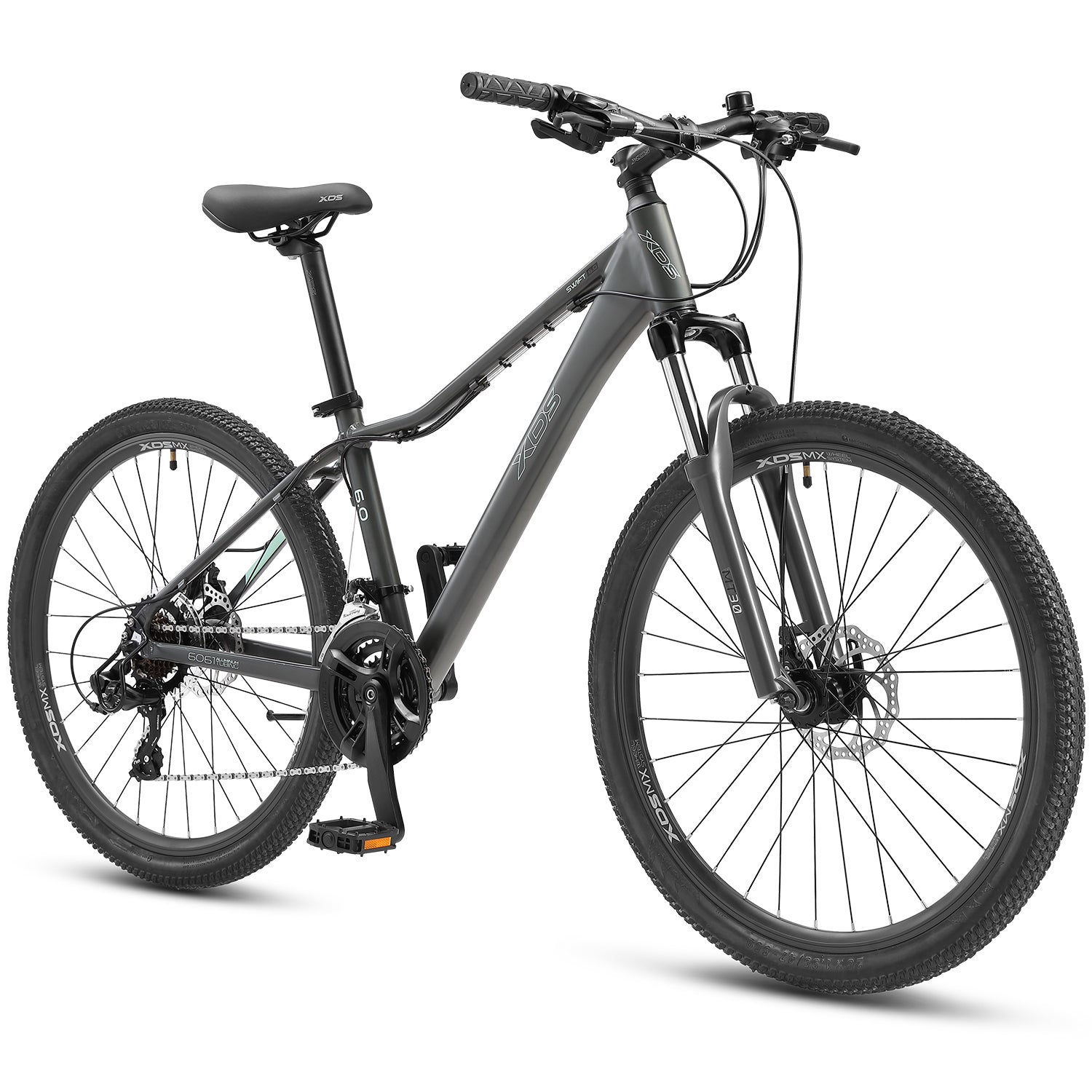

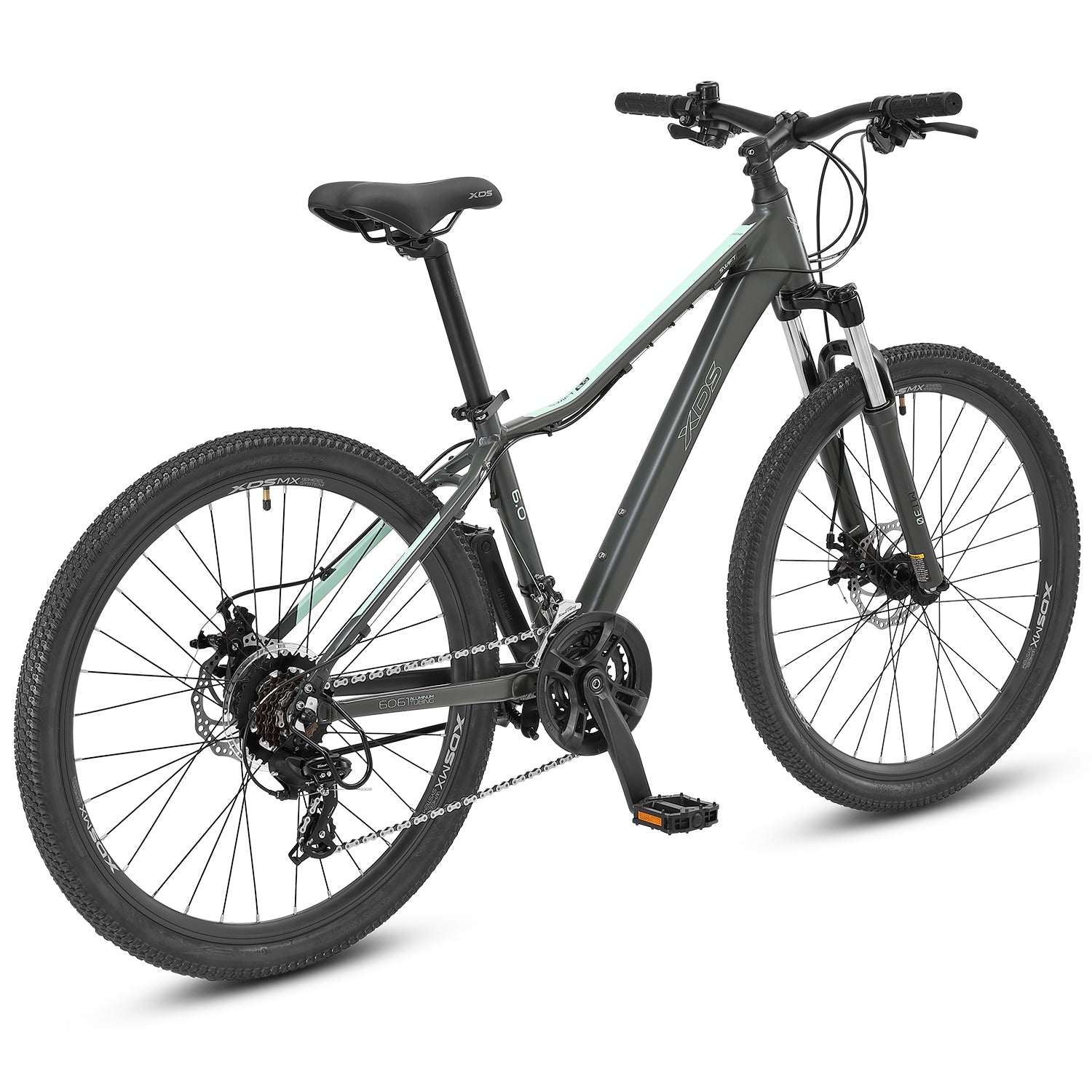

Revolutionary X6 Ultralight Alloy Frame
Experience a revolution in lightweight and durable alloy with the unique XDS engineered X6 Ultralight Aluminum Alloy Frame. The X6 is a top-tier hydro formed alloy frame using the composition of the stiffest aluminum alloy to bring you the lightest, highest quality and top-tier reliability. Co-developed with Central South University Aluminum Alloy Research Institute for engineering excellence.

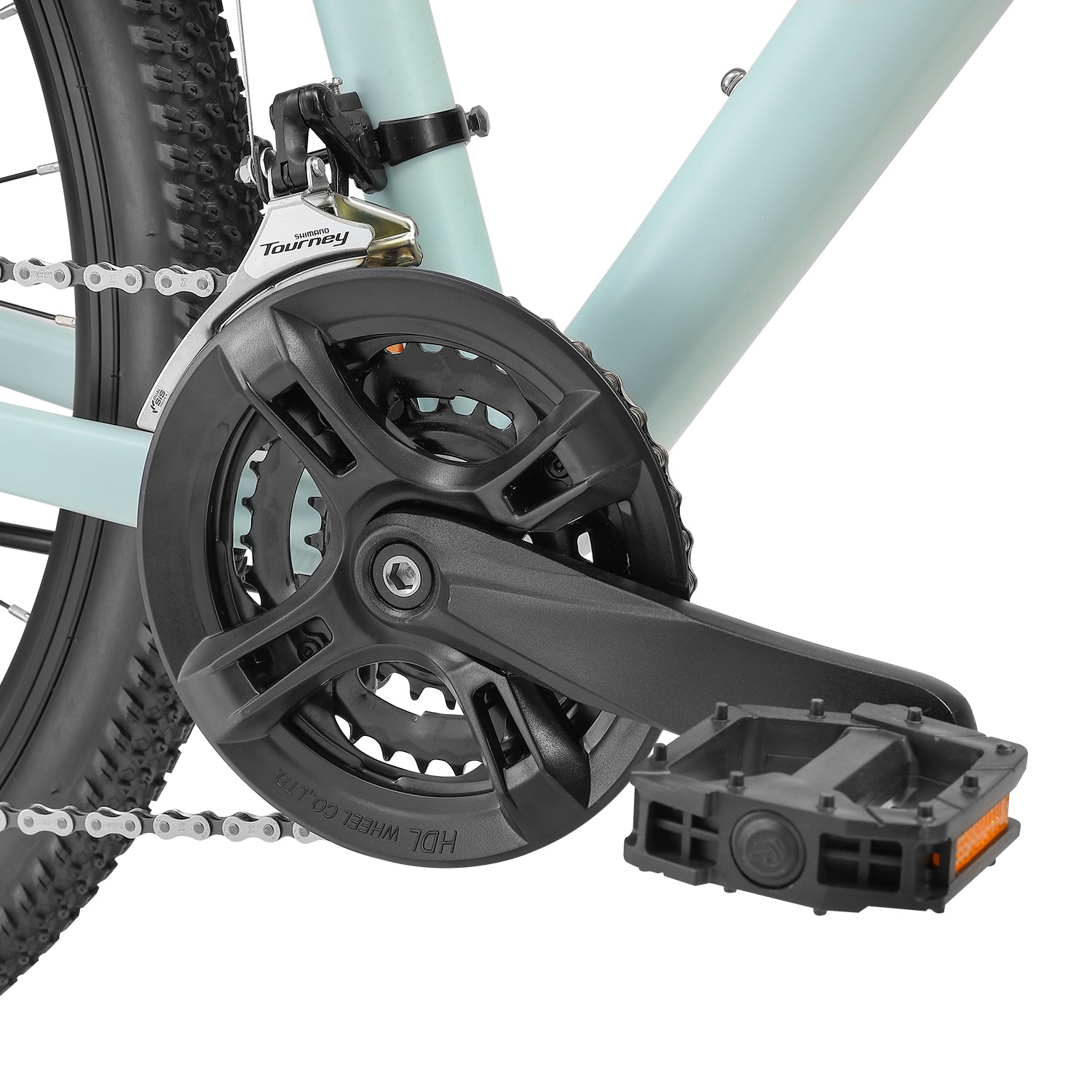

Find the most appropriate gearing ratio for tackling arange of inclines on and off-road with the 21 Speed Shimano Tourney drivetrain. Shift gears easily with Shimano EZ Fire Plus shifter.

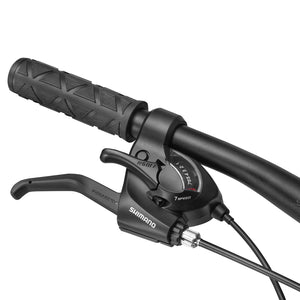

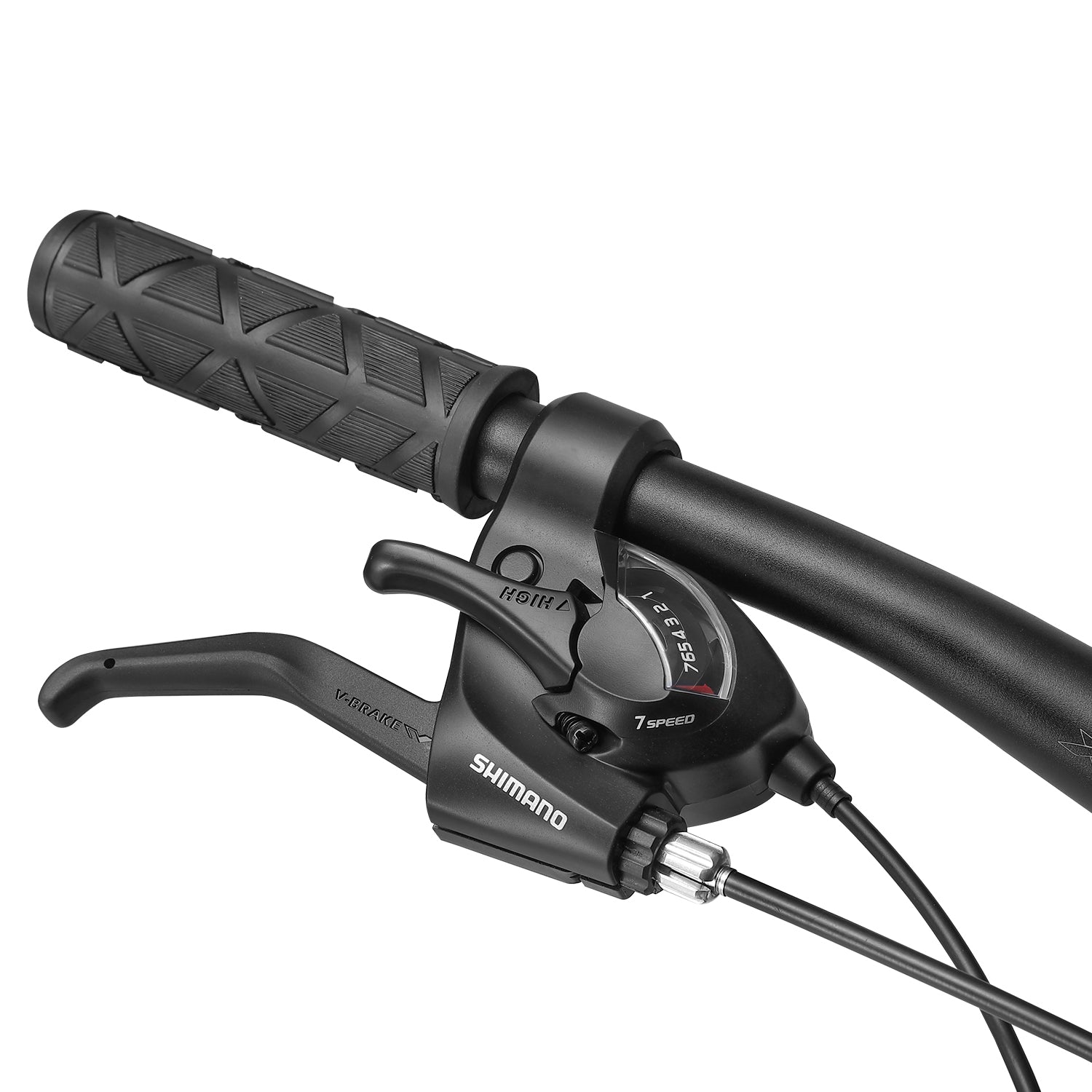

Integrated Shifting and Braking
Discover the convenience of shifting and engaging your brakes from one integrated unit with Shimano EZ Fire Plus shift levers.
|Frame Size||26/13",15" - 27.5/17"|
|Frame||XDS X6 6061 Alloy|
|Fork||XDS MT30 100mm travel|
|Handlebar||XDS Alloy 31.8 640mm wide|
|Stem||XDS Alloy A-Head 70mm|
|Seatpost||XDS Alloy 31.6 x 350mm with clamp|
|Seat Clamp||Alloy 31.8mm with Quick Release|
|Gear Shifter||Shimano EF41 EZ Fire Plus 3 speed|
|Gear Shifter||Shimano EF41 EZ Fire Plus 7 speed|
|Front Derailleur||Shimano Tourney TY300 front derailleur|

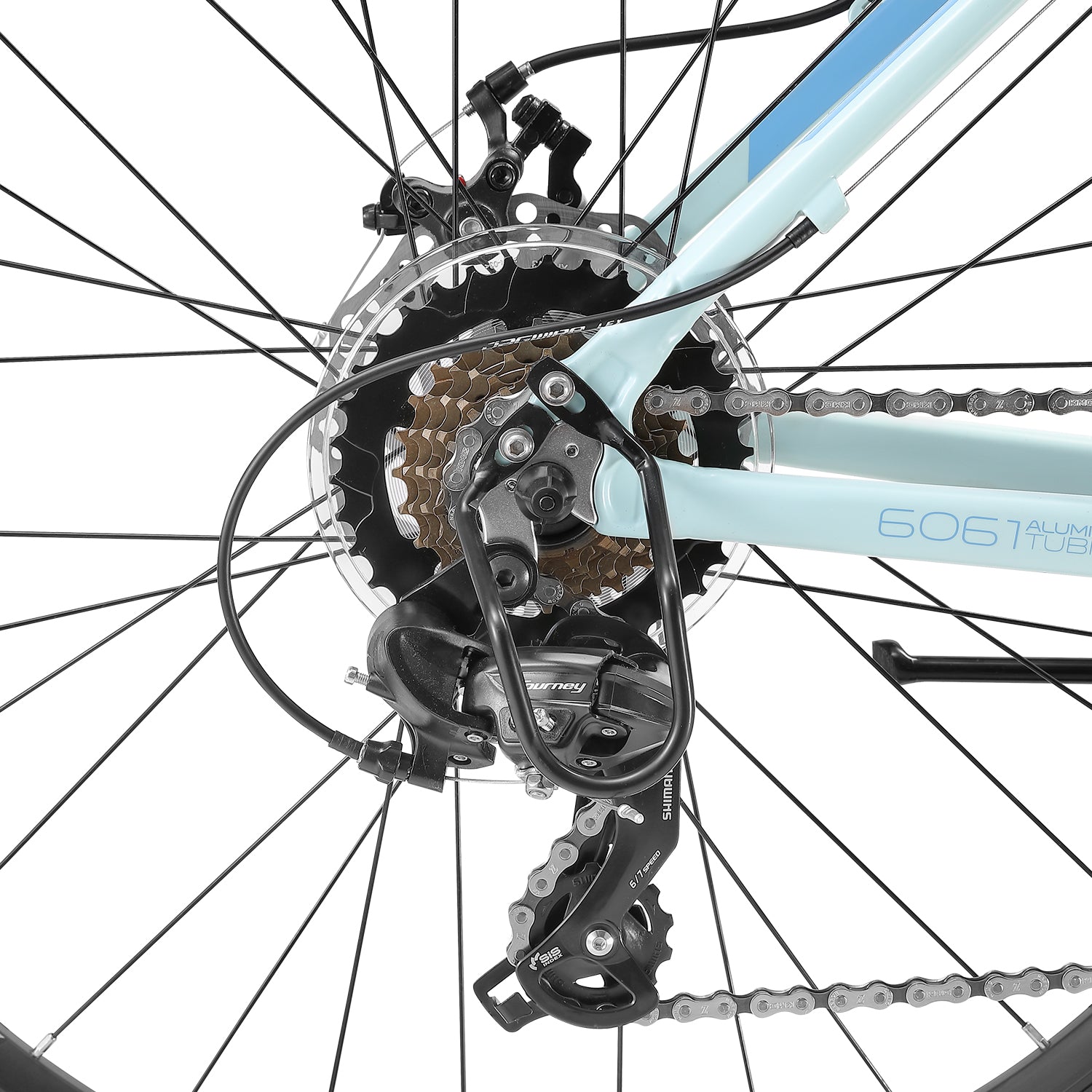

|Rear Derailleur||Shimano Tourney TY300 Rear Derailleur 7-speed|

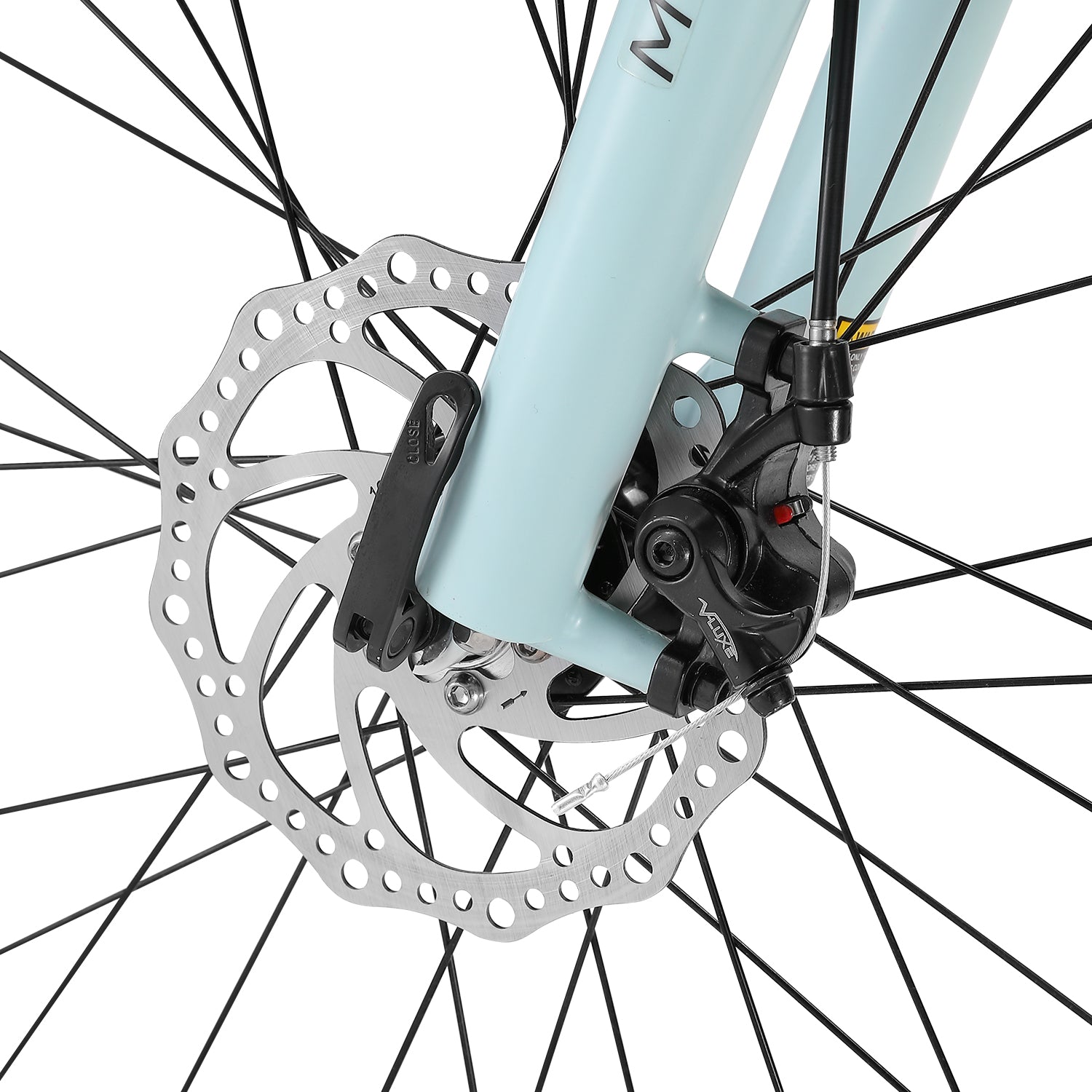

|Front Brake||Power BX260 Mechanical disc with 160mm rota|
|Rear Brake||Power BX260 Mechanical disc with 160mm rota|
|Freewheel||Power FW-7SIG 14-34T 7 speed Cluster|
|Pedal||MTB Plastic with bearings|
|Chainwheel||HD 42x34x24T steel rings with Alloy 170mm Cranks|
|Front Hub||Alloy 32H Quick Release Disc|
|Rear Hub||Alloy 32H Quick Release, Disc|
|Spokes||14G Steel with brass nipples|
|Tyre||MTB 26 x 1.95, 27.5 x 1.95 all Black|
|Rim||XDS XV21 32H Alloy|
Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
Bike Size Guide
|Frame Size Number||13"||15"||17"|
|Minimum Suggested Inseam||66cm||70cm||74cm|
|A - Seat Tube||33cm||38.1cm||43.2cm|
|B - Seat Tube Angle||73°||72°||72°|
|C - Head Tube Length||12,5cm||12,5cm||12,5cm|
|D - Effective Top Tube||55.48cm||55.48cm||55.48cm|
|E - Chainstay length||43.5cm||43.5cm||43.5cm|
|F - Wheelbase||105.72cm||105.72cm||109.47cm|
|G - Standover||64cm||68cm||72cm|
HOW TO MEASURE YOUR INSEAM FOR BIKE
- 1 Stand straight with your back against the wall and feet shoulder-width apart.
- 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
- 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
