Revolutionary X6 Ultralight Alloy Frame
Experience a revolution in lightweight and durable alloy with the unique XDS engineered X6 Ultralight Aluminum Alloy Frame. The X6 is a top-tier hydro formed alloy frame using the composition of the stiffest aluminum alloy to bring you the lightest, highest quality and top-tier reliability. Co-developed with Central South University Aluminum Alloy Research Institute for engineering excellence.

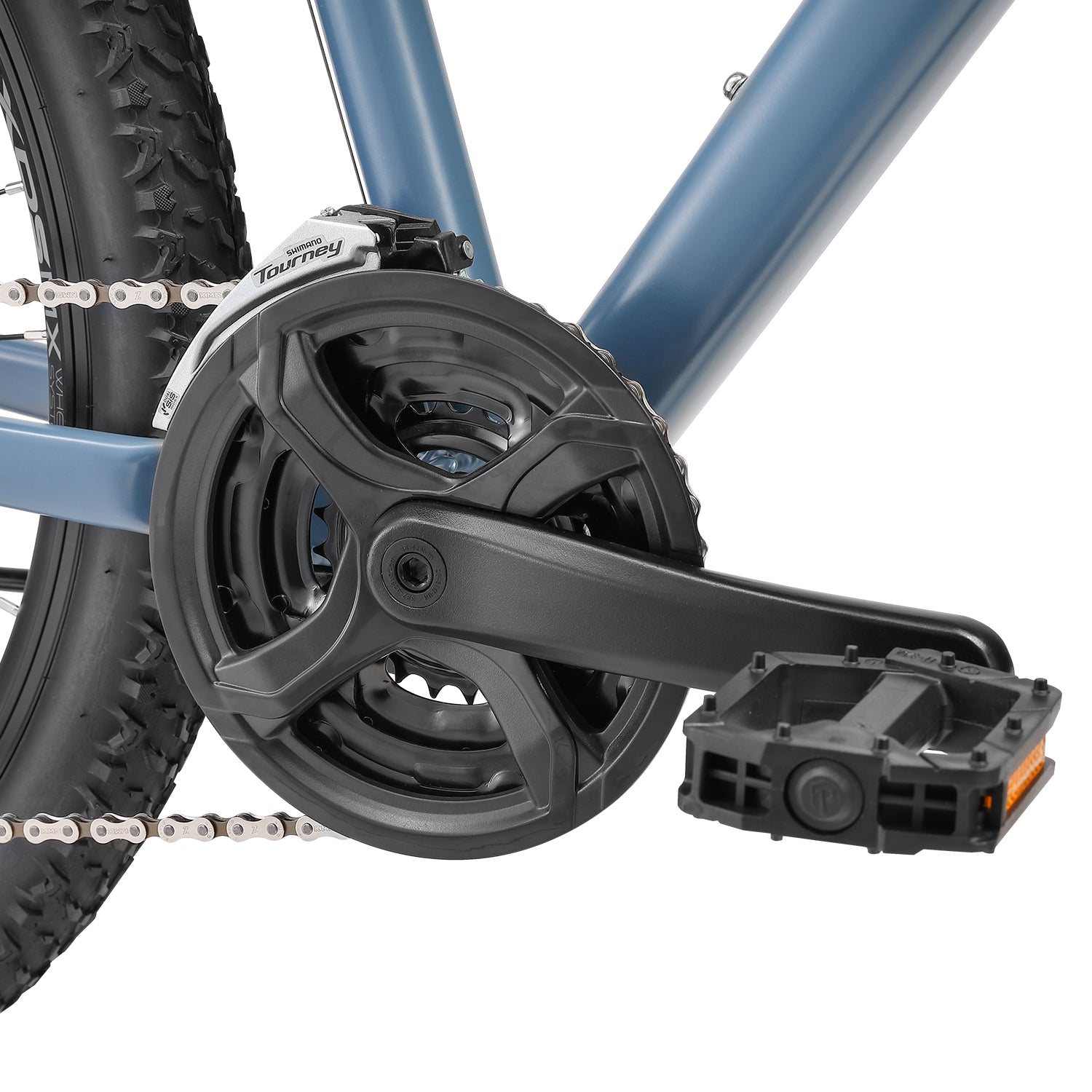

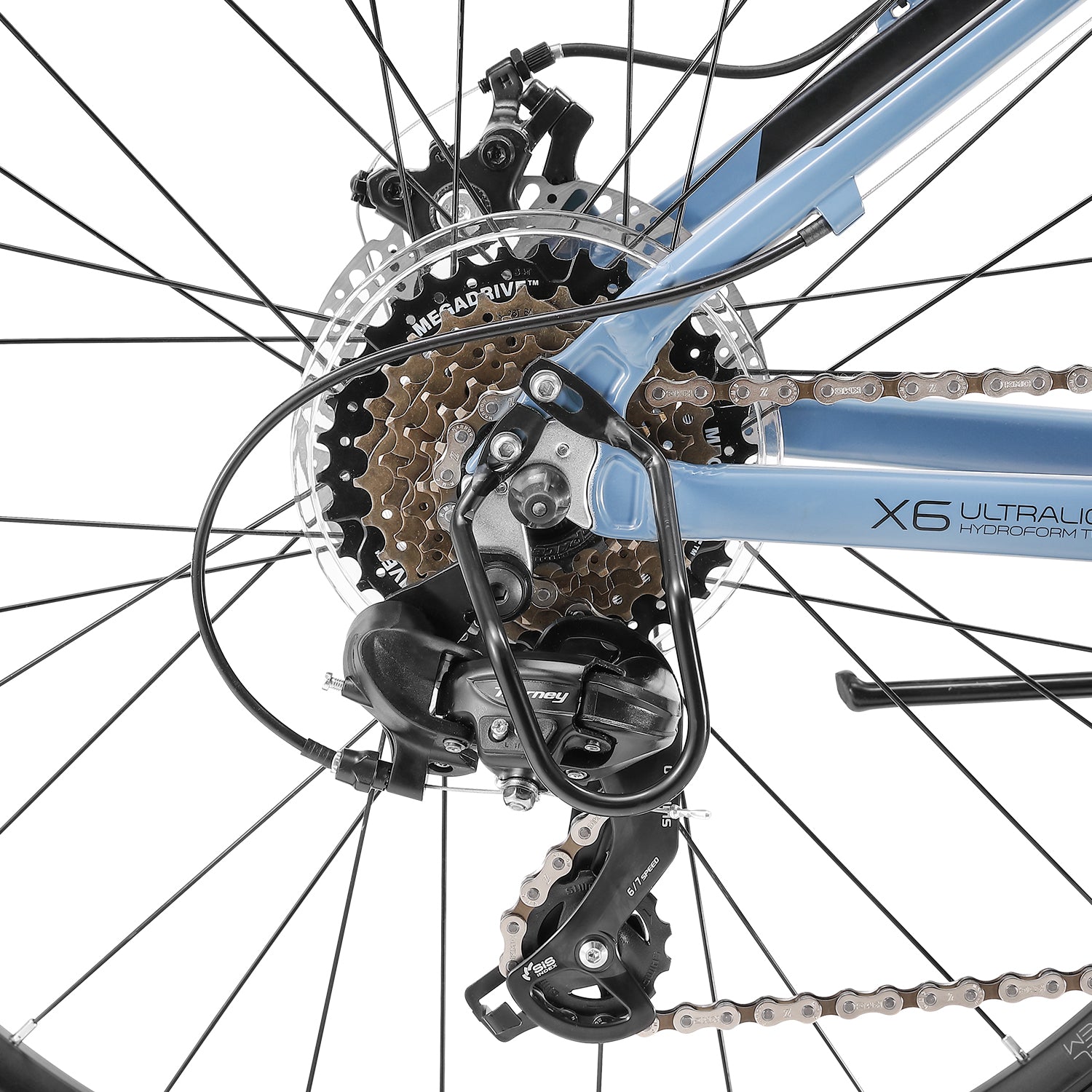

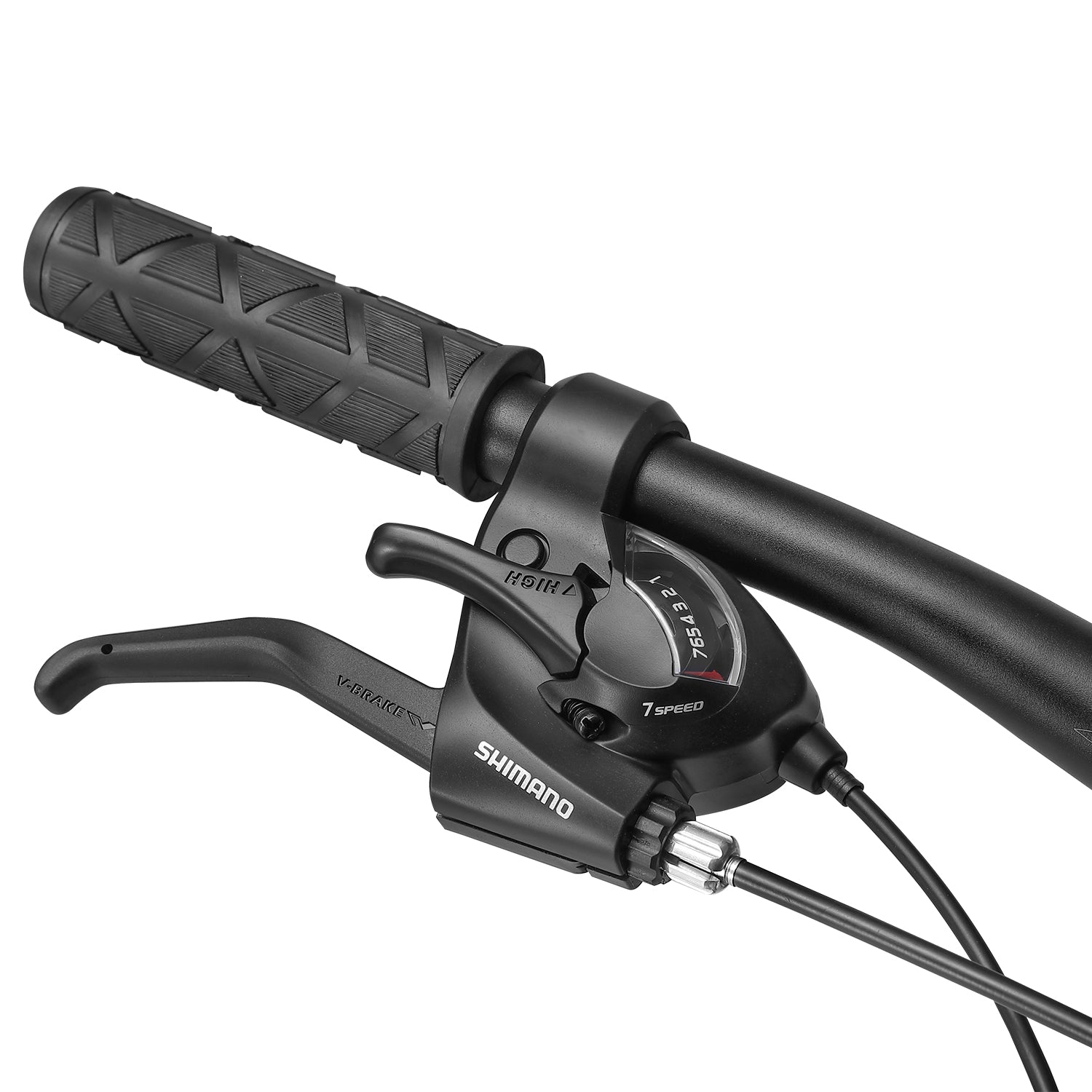

Find the most appropriate gearing ratio for tackling arange of inclines on and off-road with the 21 Speed Shimano Tourney drivetrain. Shift gears easily with Shimano EZ Fire Plus shifter.
Absorb Rough Bumps

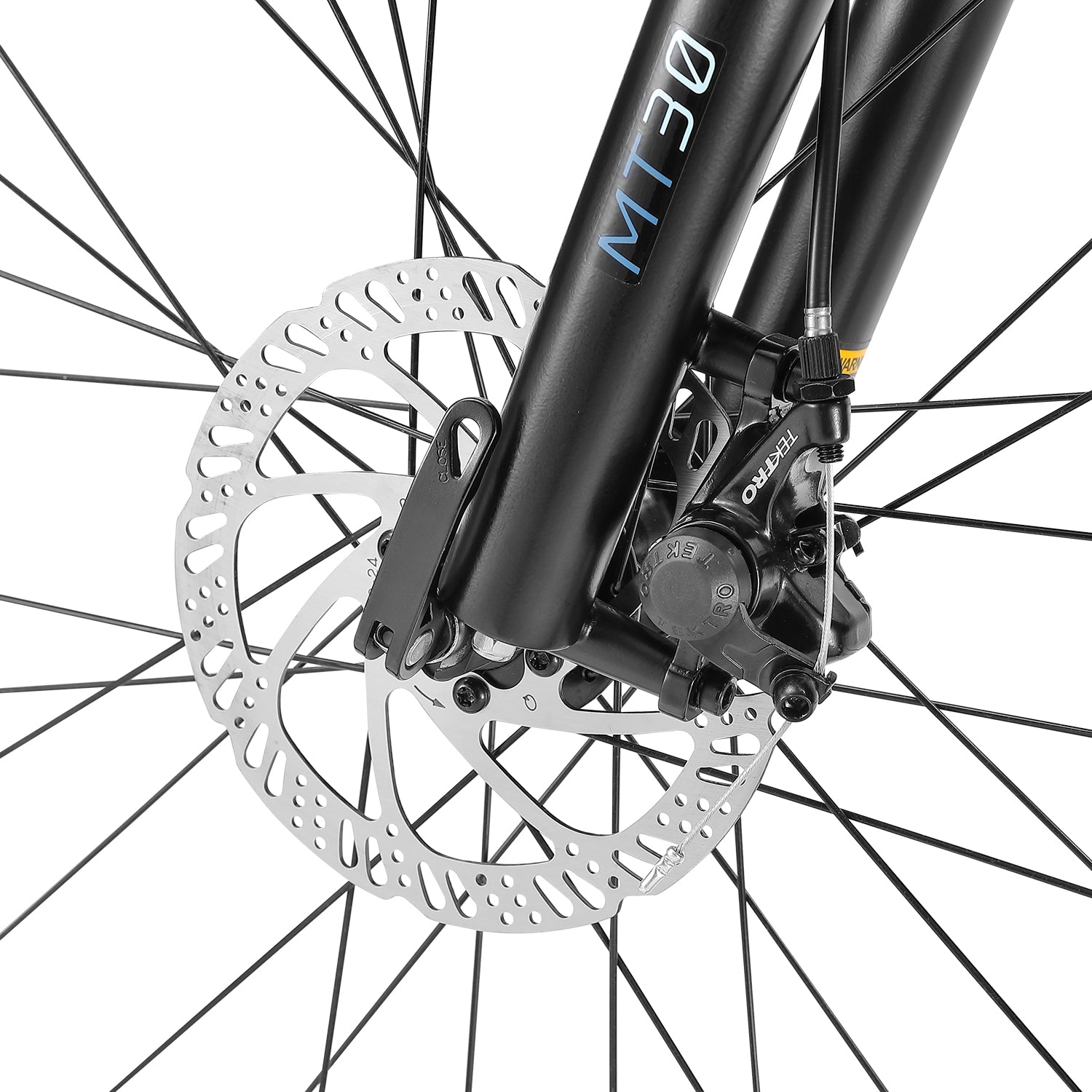

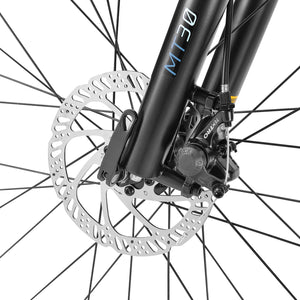

XDS MT30 suspension forks absorb blows from uneven surfaces, keeping yourself and your frame comfortable. XDS MT30 also has a lockout feature for those smooth trail rides.
|Colours||Mint, Pale Blue|
|Frame Sizes||13", 15", 17"|
|Frame||XDS X6 Alloy|
|Fork||Suntour XCT HLO (28.6 x 25.4 x 205mm)|
|Handlebar||XDS Alloy, Black (W:680mm H:25mm 10° 31.8mm)|
|Grip||Rubber, Black (L:130mm)|
|Stem||XDS Alloy, Black (28.6mm E:70mm H:40 6° 31.8mm)|
|Seatpost||XDS Alloy, Black (31.6x350mm)|
|Seat Clamp||Alloy, Black (35mm)|
|Saddle||Velo NP12 Black|
|Pedals||FP with Ball Bearing, Black (9/16")|
|Front Brakes||Alloy V-Brake L:110mm|
|Rear Brakes||Alloy V-Brake L:110mm|
|Brake Levers||Integrated Brakes/Shifters|
|Spokes||Stainless Steel (14G L:259mm)|
|Front Shifter||Shimano EZ Fire Plus EF50L: 3-SPD Index 2 Finger 1800mm|
|Rear Shifter||Shimano EZ Fire Plus EF50R: 7-SPD Index 2 Finger 2050mm|
|Front Derailleur||Shimano Tourney TY50 34.9 Clamp 42T (66-69°)|
|Rear Derailleur||Shimano Tourney TY50 7/6-SPD Index|
|Freewheel||Shimano TZ31 14-34T 7-SPD|
|Chainwheel & Cranks||SR Alloy/Steel, Black (3/32" x 24/34 Silver 42T x 170)|
|Chain||KMC Z51 (1/2" x 3/32" x 108L)|
|Bottom Bracket||BC1.37 x 24T 68mm L:122.5mm|
|Headset||Alloy Steel, Black (28.6 x 44 x 30mm H:22.5mm)|
|Front Hub||KT M9 Alloy Quick Release, Black (14Gx32H 100x108mm)|
|Rear Hub||KT M10 Alloy, Black (14Gx32H M10x135x145mm 7-SPD CNC)|
|Kickstand||Alloy H:250mm Black|
|Rim||XDS Alloy XV21, Black (26"x1.5"x14Gx32H) A/V|
|Tyres||Wire A/V Black (26"x2.0")|
Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
Bike Size Guide
|Frame Size Number||13"||15"||17"|
|Minimum Suggested Inseam||66cm||70cm||74cm|
|A - Seat Tube||33cm||38.1cm||43.2cm|
|B - Seat Tube Angle||73°||72°||72°|
|C - Head Tube Length||12,5cm||12,5cm||12,5cm|
|D - Effective Top Tube||55.68cm||55.48cm||55.48cm|
|E - Chainstay length||43.5cm||43.5cm||43.5cm|
|F - Wheelbase||105.72cm||105.72cm||109.47cm|
|G - Standover||64cm||68cm||72cm|
HOW TO MEASURE YOUR INSEAM FOR BIKE
- 1 Stand straight with your back against the wall and feet shoulder-width apart.
- 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
- 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
