RRP $749.00

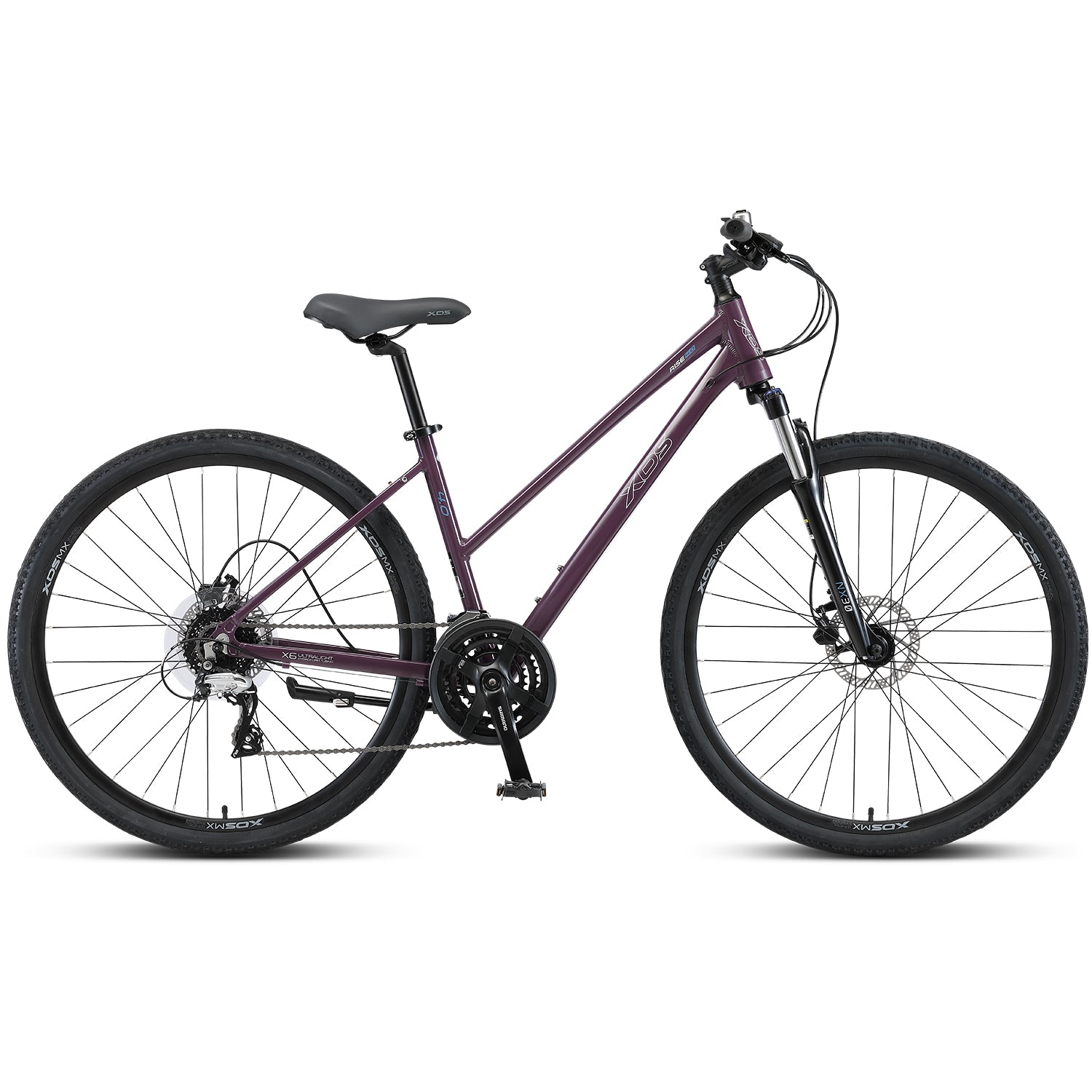

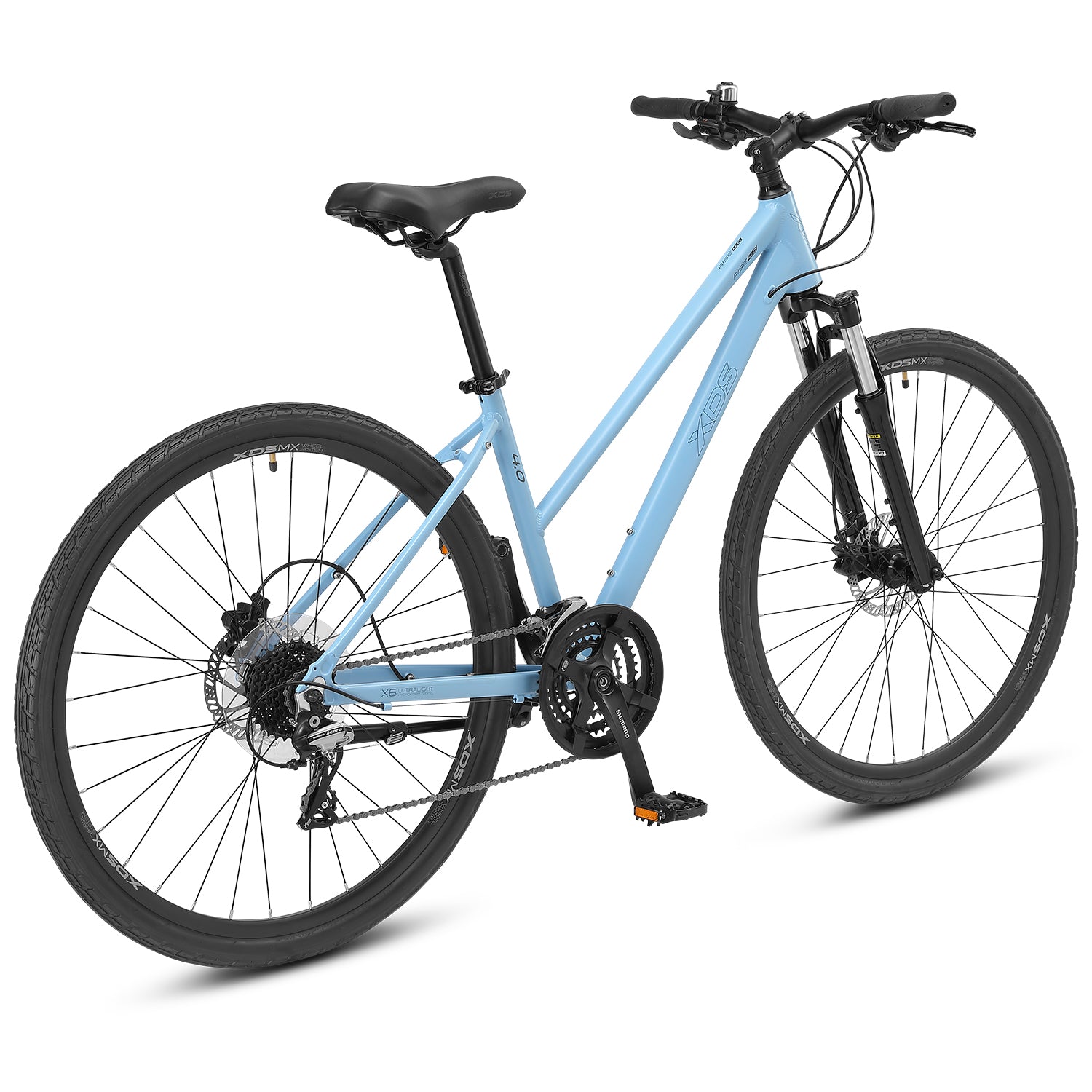

Rise 4.0 is the ultimate sports bike. Complete with 700c x 40 tyres for increased comfort you’ll find better protection against bumps and punctures. The step through, lightweight 6061 alloy frame provides an efficient pedal system. Brake with confidence with the reliable hydraulic Shimano disc brakes. Tackle the terrain with serious suspension to absorb the bumps, whilst relying on the 8-Speed Shimano Atlus Drivetrain to get you over all inclines.

Colour: Blue Bell


Lightweight 6061 Alloy Frame

Experience less drag with a lightweight but durable alloy frame. With an easy step through design, enjoy the ultimate in comfort and pedal more efficiently every ride.

Wide 700c Tyres

Fitted with wider 700 x 40c tyres for a better ride on all surfaces, increased comfort against bumps and better protection against punctures.

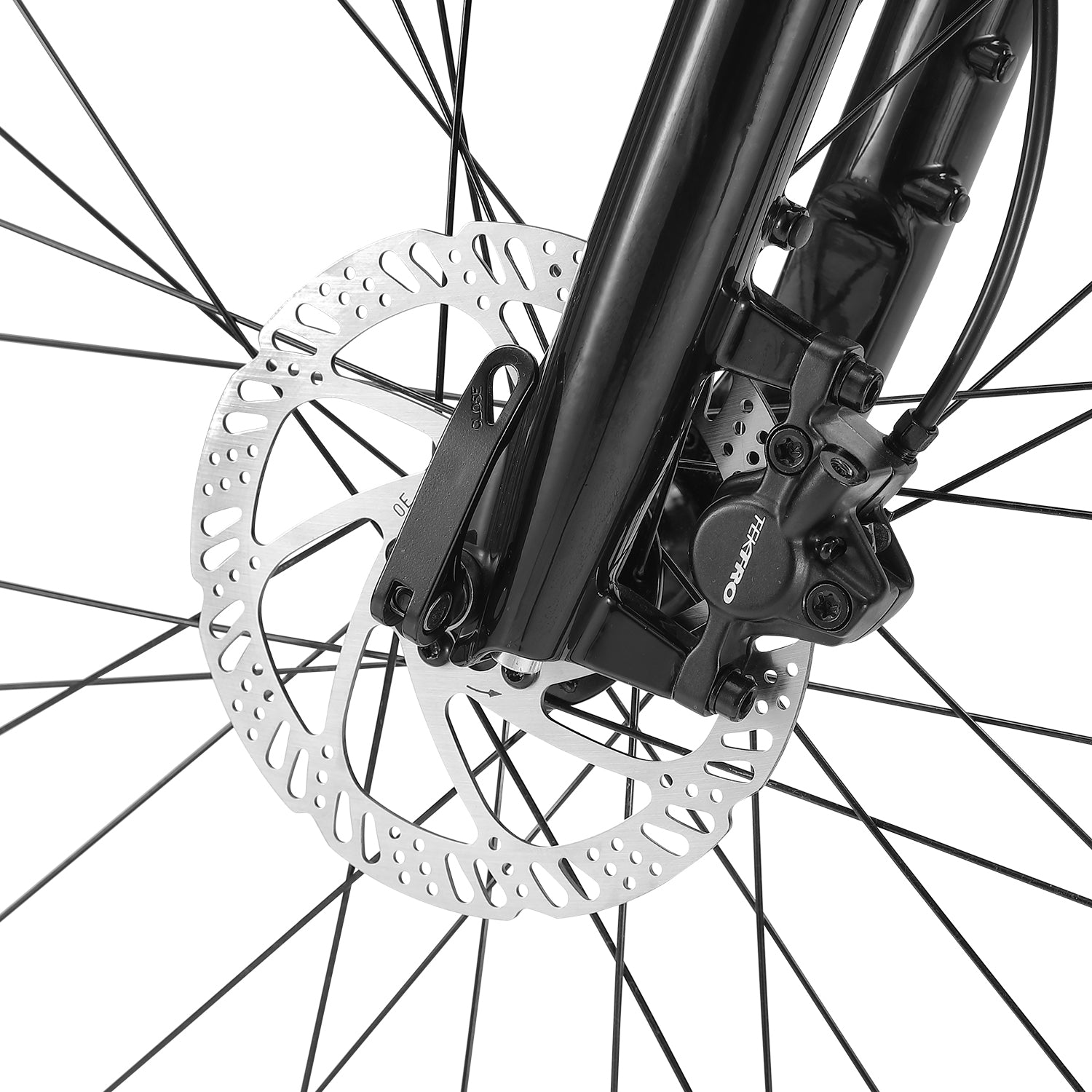

Reliable Braking

Stop comfortably and smoothly with front and rear hydraulic Shimano disc brakes. These brakes are simple,reliable, and easy to maintain.

8-Speed Shimano Atlus Drivetrain

Find the flexibility to tackle a range of inclines with a Shimano 8-Speed Altus Drivetrain. You’ll be able to find a suitable gear ratio to have a smooth cadence over ever changing inclines and flat roads.

Serious Suspension

For a comfortable ride, Rise 4.0 offers smooth suspension to absorb all bumps on the terrain you encounter.


Frame XDS 6061 Alloy
Fork XDS NX30 Suspension, 65mm travel
Handlebar XDS Alloy 31.8 680mm wide
Grip Comfort Rubber
Stem XDS A-Head 60mm
Seatpost Alloy micro adjust 27.2 x 350mm
Seat Clamp Alloy 31.8mm with Quick Release
Saddle Comfort style
Gear Shifter Shimano M315 Rapidfire, 3speed
Gear Shifter Shimano M315 Rapidfire, 8 speed
Front Derailleur Shimano Altus M310 front derailleur
Rear Derailleur Shimano Altus M310 Rear Derailleur 8-speed
Front Brake Tektro M275 Hydraulic disc with 160mm rota
Rear Brake Tektro M275 Hydraulic disc with 160mm rota
Freewheel Shimano CS-HG318 - 8 Speed, 11-32t
Pedal Plastic/Steel with bearings
Chainwheel Shimano TY501, 48x38xx28T with chain guard
Chain 1/2 x 3/32 x 1116L
Bottom Bracket Cartridge
Headset Alloy/Steel integrated
Front Hub Alloy 32H Quick Release Disc
Rear Hub Alloy 32H Quick Release, Disc, Freehub
Spokes 14G Stainless Steel with brass nipples
Tyre 700c x 45 Multi tread
Rim XDS XD211 32H 700c Alloy
Bell Alloy flick
Kickstand Alloy

Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.

Bike Size Guide

Alloy Frame
Frame Size Number 15" 17" 19"
Wheel Size 700C 700C 700C
Suggested Height 150-160cm 160-170cm 170-180cm
Minimum Suggested Inseam 65cm 66cm 68cm
A - Seat Tube 38.1cm 43.2cm 48.3cm
B - Seat Tube Angle 73.5° 73.5° 73.5°
C - Head Tube Length 14cm 14cm 14cm
D - Effective Top Tube 57cm 57cm 57cm
E - Chainstay length 45.5cm 45.5cm 45.5cm
F - Wheelbase 108.44cm 108.44cm 108.44cm
G - Standover 63cm 64cm 65cm
Measure Bike Inseam

  • 1 Stand straight with your back against the wall and feet shoulder-width apart.
  • 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
  • 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
