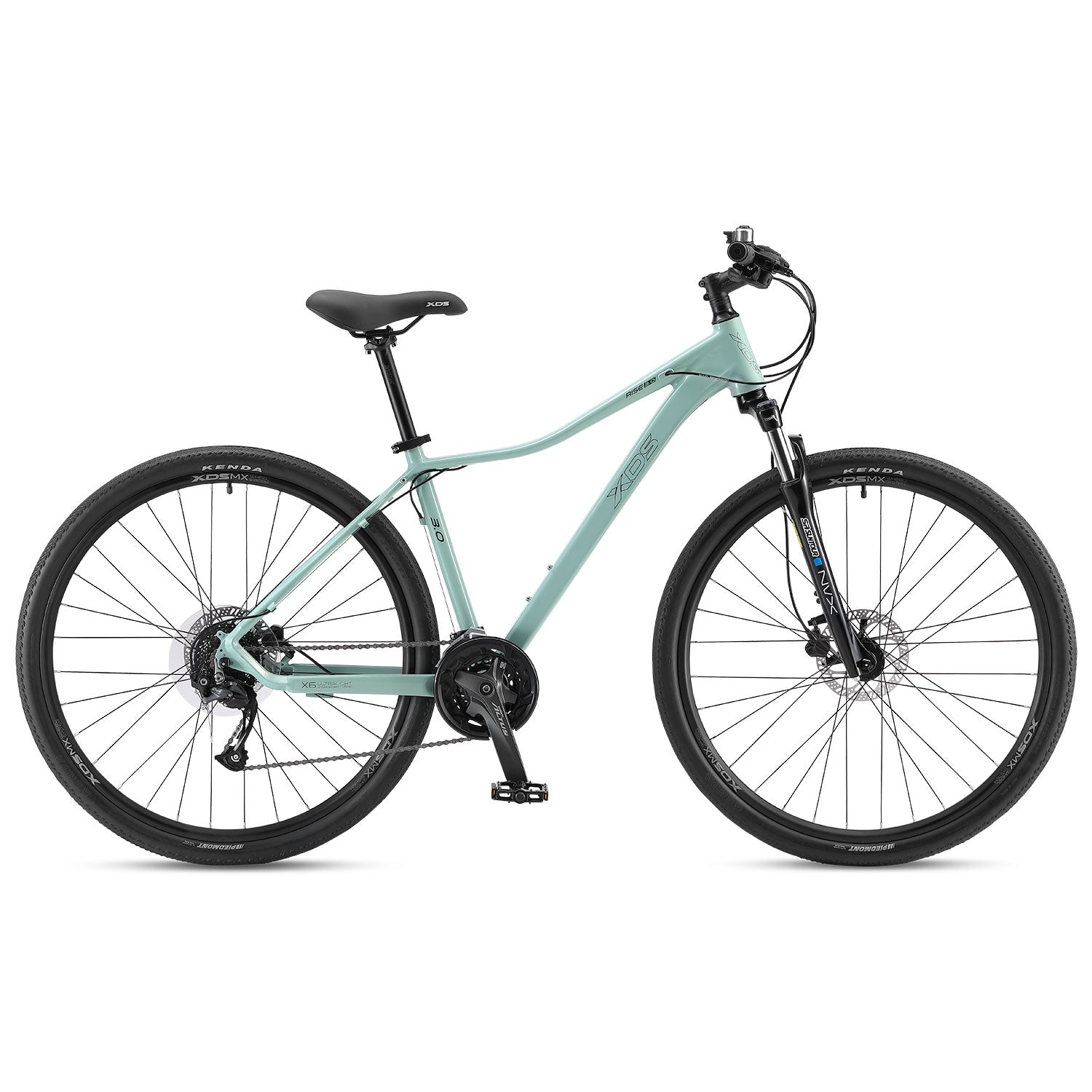

Rise 3.0 is the ultimate sports bike. Complete with 700c x 40 tyres for increased comfort you’ll find better protection against bumps and punctures. The innovative X6 Alloy Frame provides an efficient pedal system. Brake with confidence with the reliable hydraulic disc brakes. Tackle the terrain with serious suspension to absorb the bumps, whilst relying on the 9 Speed Shimano Altus Shadow Drivetrain over any incline.
Find a Retailer
Recommended Retail Prices excludes shipping costs, dealer assembly/prep and accessories. Please speak to your nearest store for more information.
Features
Revolutionary X6 Ultralight Aluminum Frame
Experience a revolution in lightweight and durable alloy with the unique XDS engineered X6 Ultralight Aluminum Frame. The X6 is a top-tier hydroformed aluminum frame using the composition of the stiffest aluminum to bring you the lightest, highest quality and top-tier reliability. Co-developed with Central South University Aluminum Research Institute for engineering excellence.
Absorb Rough Bumps
Suntour Nex DS HLO suspension forks absorb blows from uneven surfaces, keeping yourself and your frame comfortable during every ride.
Shimano Altus Shadow 9 Speed
Find the most appropriate gearing ratio for tackling a range of inclines on and off-road with the Shimano Altus Shadow 9 Speed Drivetrain. Shift gears easily with your Shimano Rapidfire shifters.
Specifications
| Frame | XDS X6, 6061 Alloy |
| Fork | Suntour NEX-DS-HLO, 63mm Travel |
| Handlebar | XDS Alloy 31.8 680mm wide |
| Grip | Comfort Rubber |
| Stem | XDS A-Head 70mm |
| Seatpost | Alloy micro adjust 27.2 x 350mm |
| Seat Clamp | Alloy 31.8mm with Quick Release |
| Saddle | Comfort style |
| Gear Shifter | Shimano M2010 Rapidfire, 3speed |
| Gear Shifter | Shimano M2010 Rapidfire, 9 speed |
| Front Derailleur | Shimano Altus M2000 front derailleur |
| Rear Derailleur | Shimano RD-M2000 Shadow Rear Derailleur 9-speed |
| Front Brake | Tektro M275 Hydraulic disc with 160mm rota |
| Rear Brake | Tektro M275 Hydraulic disc with 160mm rota |
| Freewheel | Shimano CS-HG200 - 9 Speed, 11-32t |
| Pedal | Alloy with bearings |

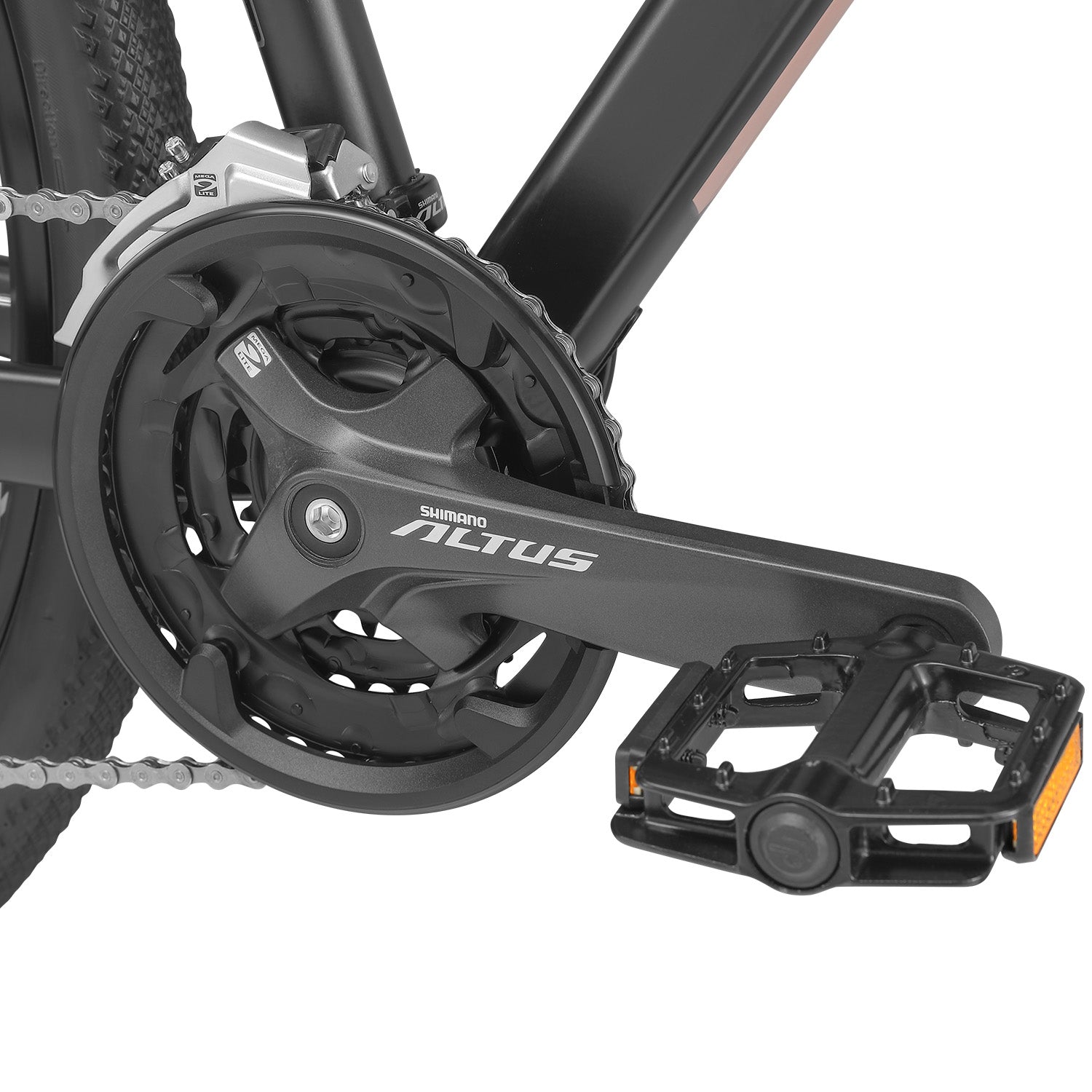

| Chainwheel | Shimano M2000, 48x30xx22T with chain guard |
| Chain | 1/2 x 11/128 x 108L |
| Bottom Bracket | Shimano Cartridge |
| Headset | Steel integrated |
| Front Hub | Alloy 32H Quick Release Disc |
| Rear Hub | Alloy 32H Quick Release, Disc, Freehub |
| Spokes | 14G Stainless Steel with brass nipples |
| Tyre | 700c x 45 30TPI |
| Rim | XDS X-MX21 32H 700c Alloy |
| Bell | Alloy flick |
Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
Bike Size Guide
| Frame Size Number | 15" | 17" | 19" |
| Wheel Size | 700C | 700C | 700C |
| Suggested Height | 155-165cm | 165-175cm | 175-185cm |
| Minimum Suggested Inseam | 70cm | 74cm | 78cm |
| A - Seat Tube | 38.1cm | 43.2cm | 48.2cm |
| B - Seat Tube Angle | 73° | 72° | 72° |
| C - Head Tube Length | 12.5cm | 12.5cm | 12.5cm |
| D - Effective Top Tube | 59.76cm | 59.76cm | 59.8cm |
| E - Chainstay length | 44cm | 44cm | 44cm |
| F - Wheelbase | 109.11cm | 109.11cm | 109.11cm |
| G - Standover | 68.2cm | 72.3cm | 76cm |
