Features
Vintage Meets Modern

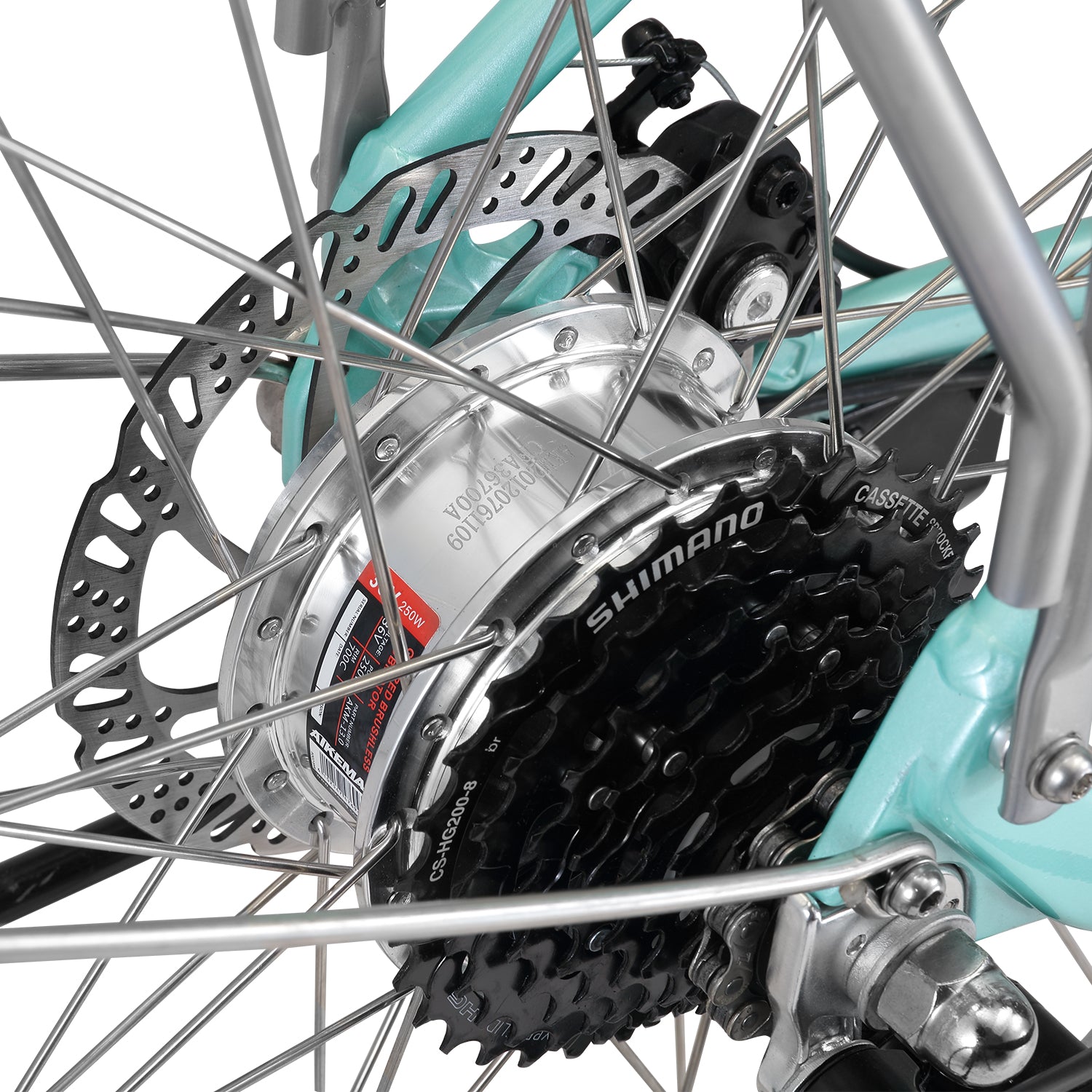

Capture the retro look without sacrificing the ease and comfort of a revolutionary electric bike. Fitted with a 250w Hub-Drive motor to power you through your daily commute or leisurely rides.
Lithium Ion Battery

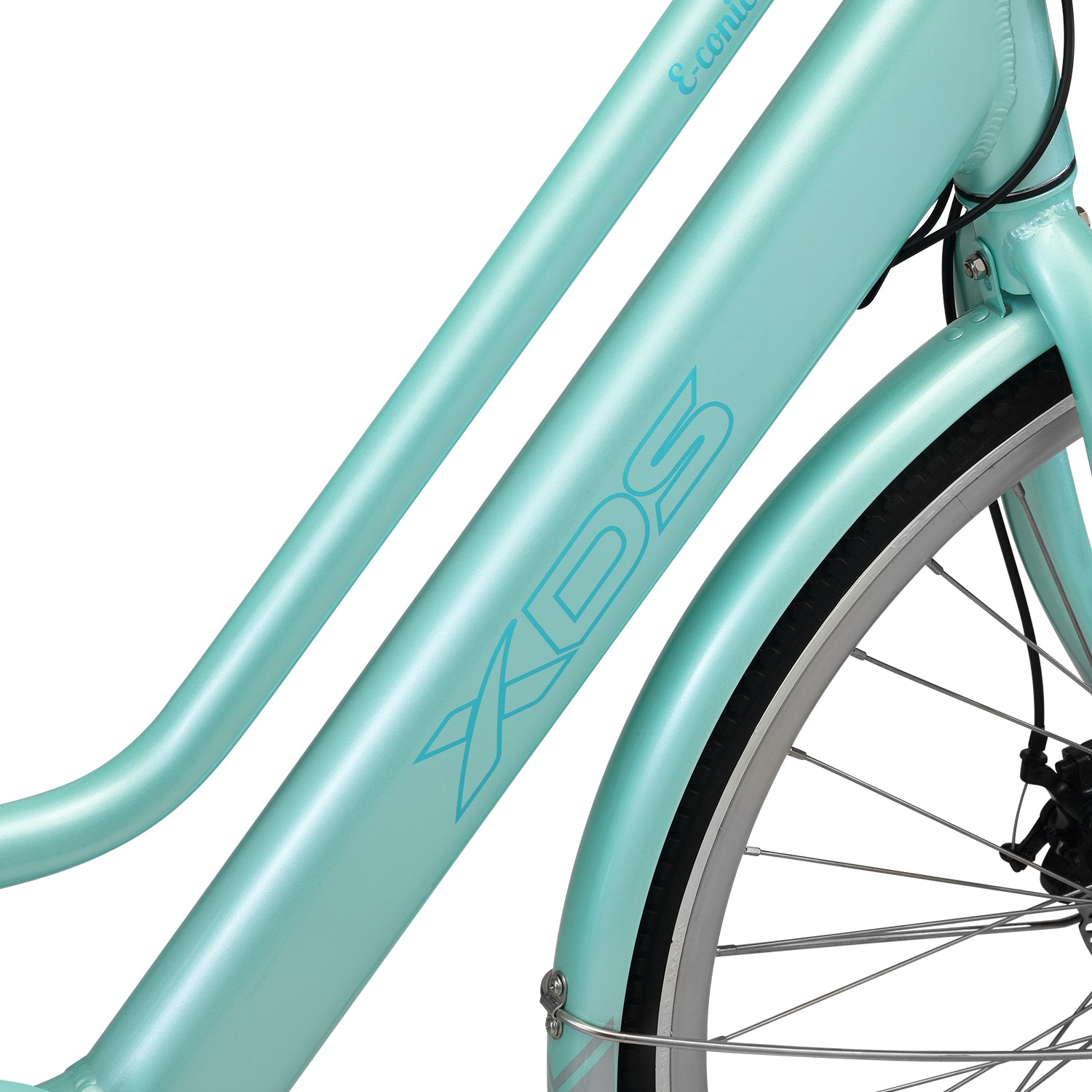

A great electric bike needs a great battery to work. The E-CONIC comes with a frame integrated battery with 36v 3200mAh high quality cells to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.
Supportive Posture
The comfortable Cionlli rail and spring saddle and swept back handlebars encourage riding with an upright posture for better spinal support.
Specifications
| Frame Size | 15" and 17" |
| Frame | XDS 6061 Alloy with internal battery |
| Fork | Steel |
| Handlebar | Alloy 610 wide |
| Grip | Foam Comfort |
| Stem | Alloy 80mm |
| Seatpost | Alloy 27.2 x 300mm |
| Seat Clamp | Alloy with Quick Release |
| Saddle | XDS Comfort |
| Gear Shifter | Shimano SLM-310 8sp |
| Rear Derailleur | Shimano RDM-310 8sp |
| Front Brake | Tektro M280 Cable Disc with 160mm Rotor |
| Rear Brake | Tektro M280 Cable Disc with 160mm Rotor |
| Freewheel | Shimano HG200 12-32T 8sp |
| Pedal | Comfort style with ball bearings |
| Chainwheel | HDL-L132 42T 170mm Crank |
| Chain | Z72 1/2 x 3/32 x 112L |
| Bottom Bracket | VP-BC73 |
| Headset | Alloy/Steel |
| Front Hub | KT Alloy |
| Rear Hub | KT Alloy |
| Spokes | Slainless steel 13G |
| Tyre | Kenda 700c x 35 |
| Rim | Alloy XD211 700c |
| Bell | Alloy flick |
| Chainguard | Steel F-Shape |
| Kickstand | Steel stay mount |
| Basket | Steel and Cane |
| Fender | Steel Front and Rear |
Electrical Components
| Motor | 85SX 36V/250W |
| Battery | 36v / 9.6Ah, 10S3P BMS Comp Uart DC2.1 charge Port |
| Speed Sensor | CGQS6 |
| Display | KD58C LCD Display, DC 36V. 0-5 Modes. 700c 25kmh |
| Charger | Input: 100-240V 1.6A9Max) 47/63HZ Output: 42V 2A |
| Controller | KZW25700c, 36V-250W, 15A, 25kmh, 0-5 level |
Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
Bike Size Guide
| Frame Size Number | 15' | 17' |
| Wheel Size | 700c | 700c |
| A - Seat Tube | 38.1cm | 43.2cm |
| B - Seat Tube Angle | 72.5° | 72.5° |
| C - Head Tube Length | 20cm | 20cm |
| D - Effective Top Tube | 57.4cm | 59cm |
| E - Chainstay length | 46cm | 46cm |
| F - Wheelbase | 109.03cm | 110.63cm |
