RRP $2,989.00

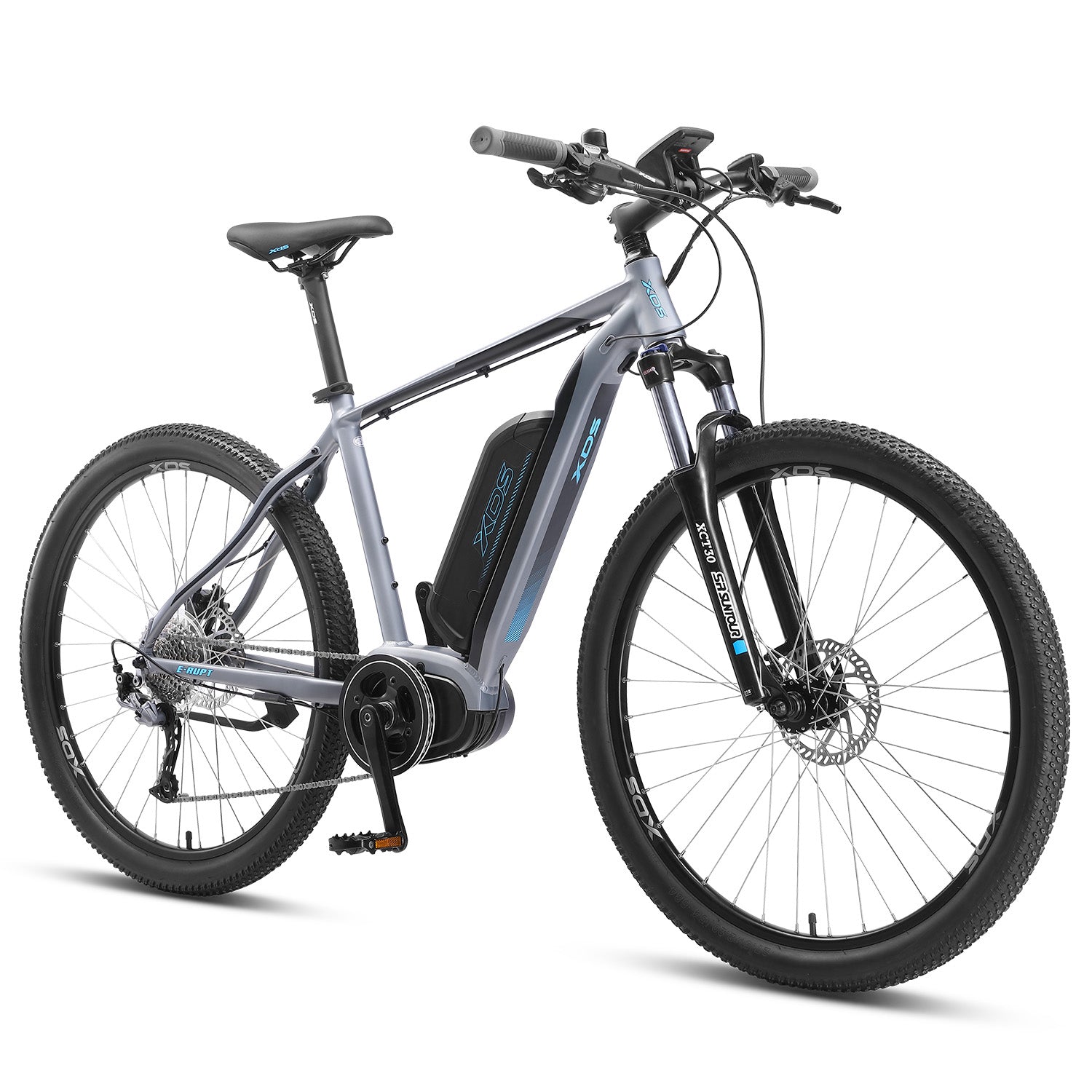

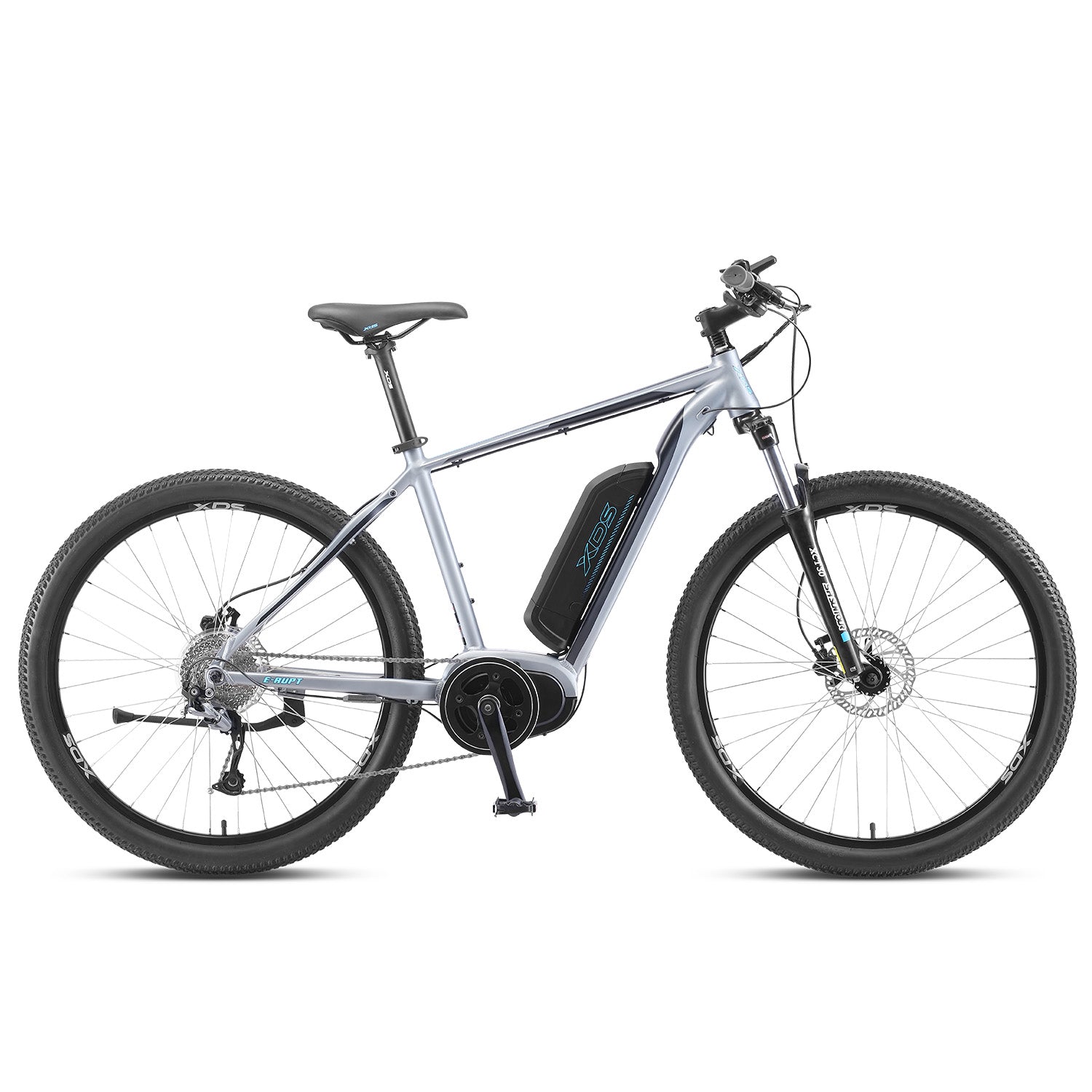

Tear through off-road trails on the powerful XDS E-Rupt. The Bafang Mid-Drive Motor, complete with LCD display, Gear Sensor, and 36V Panasonic battery elevate you beyond your capabilities. Dominate off-road with the revolutionary X6 Alloy frame, 10 speed Shimano Deore Drivetrain, Tektro Hydraulic Disc Brakes, and Suntour suspension forks.
EBIKERUPT19GGRY-16
Size:
Colour: Graphite Grey

Features

The Mid-Drive Advantage

Mid-Drive Systems are excellent for out-putting big amounts of torque, applicable for everyday commuting, climbing hills and powering through unfavourable terrain. Instead of individually powering the front or rear wheel through a single-speed conventional hub motor, the highly acclaimed Bafang MAX-01 allows you to take advantage of the bike's drivetrain, and sends power through the gearing to efficiently amplify your power seamlessly.

Mid-Drive Advantages:

"¢ More predictable control and speed
"¢ Equal Weight Distribution (Fitted in the middle)
"¢ Better power efficiency

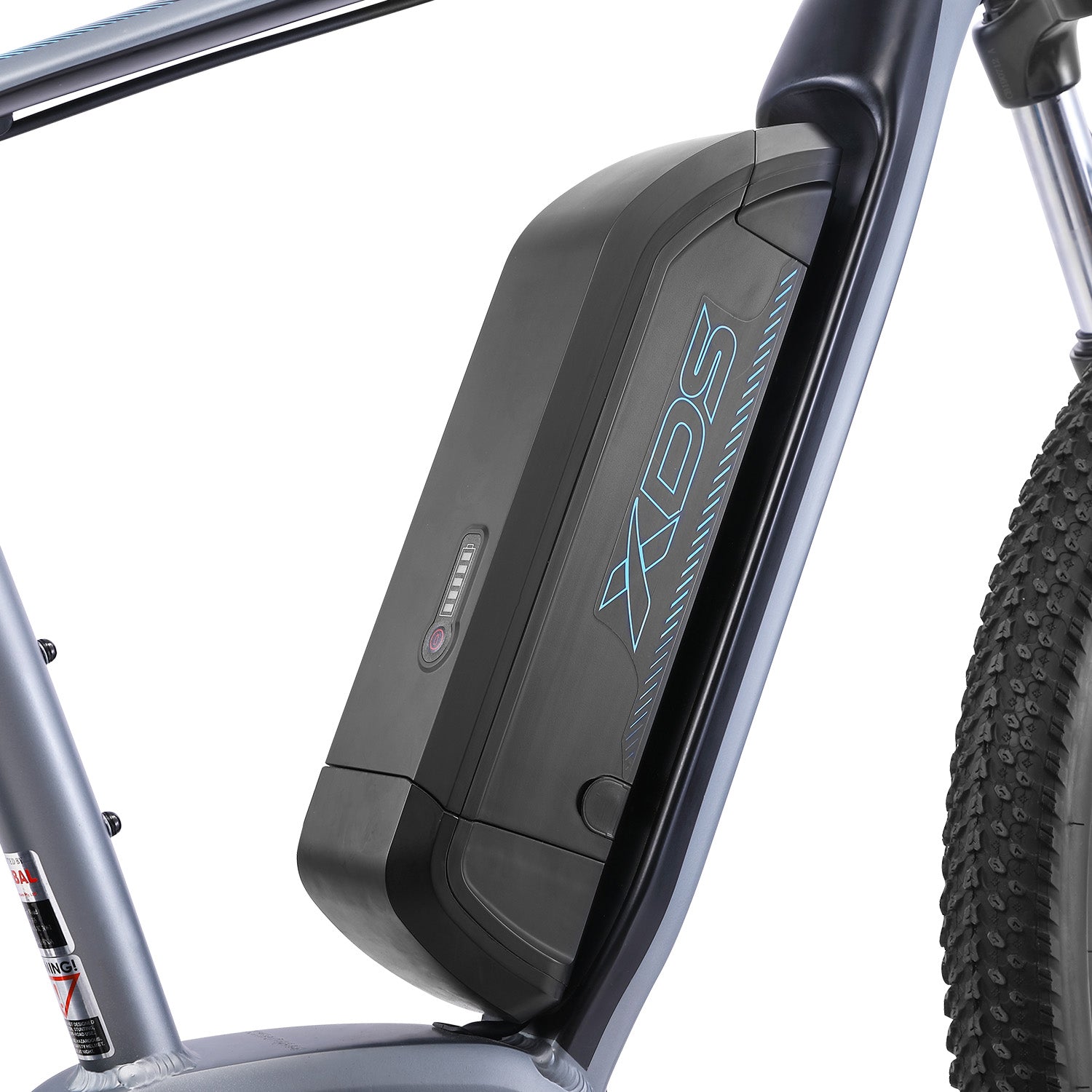

Lithium-Ion Battery with Panasonic Cells

A great electric bike needs a great battery to work. The E-Rupt comes with a big 36v 2900mAh Panasonic cell to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.

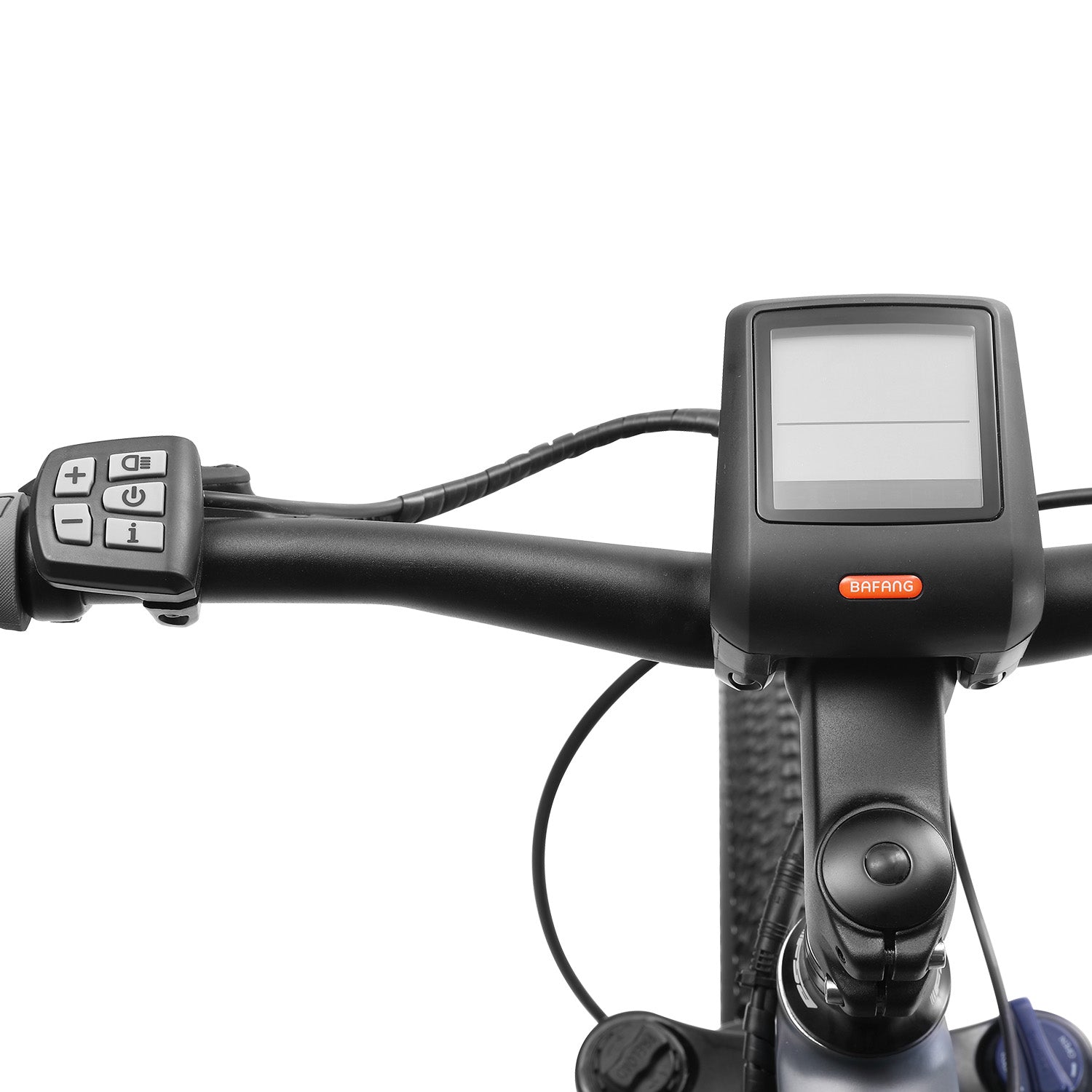

Be in control

With a large backlit Bafang LCD Display and built-in controller, you'll be able to see your speed, trip stats (max speed, average speed, trip total and odometer), current power assist & battery charge. Cycle through 5 levels of power assist, with higher numbers providing more motor assistance during pedalling.

Superior Stopping Power

Experience the unparalleled stopping power of hydraulic disc brakes, capable of bringing you safely to a halt in any conditions. Hydraulic disc brakes are more reliable than their mechanical counterparts and afford riders greater control with less effort required.

Gear Shift Sensor

When shifting gears, riders should reduce torque through the drivetrain for a smoother transition. Typically, electric bikes emit torque five times higher than riders are capable of producing on their own, so regularly shifting gears at high speeds can be damaging to your drivetrain. The Gear Sensor briefly cuts out the motor when changing gears to provide a more secure shift and prolong the life of your drivetrain.

Revolutionary X6 Ultralight Alloy Frame

Experience a revolution in lightweight and durable alloy with the unique XDS engineered X6 Ultralight Aluminium Alloy Frame. The X6 is a top-tier hydroformed alloy frame using the composition of the stiffest aluminium alloy to bring you the lightest, highest quality and top-tier reliability. Co-developed with Central South University Aluminium Alloy Research Institute for engineering excellence.

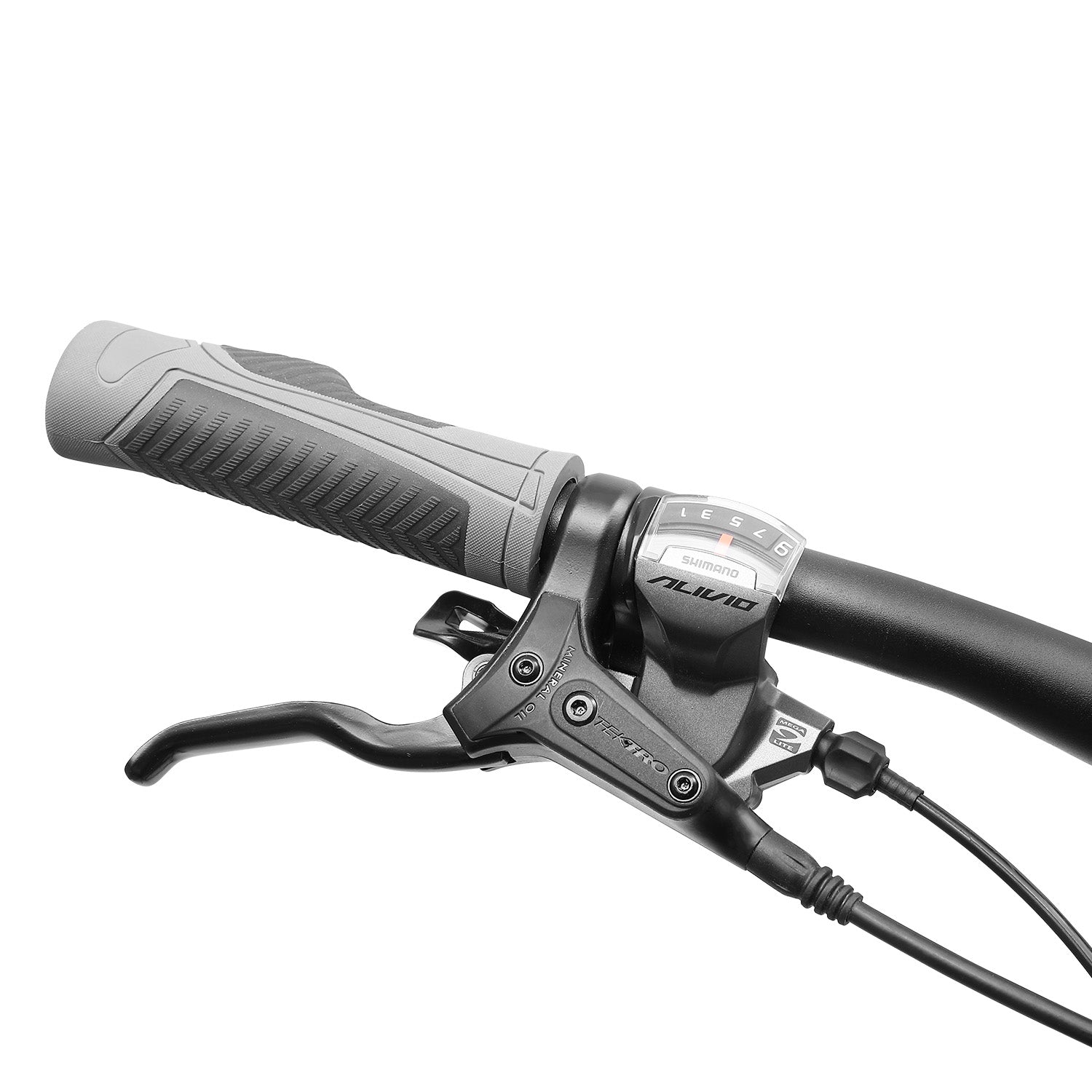

Shimano Alivio 9 Speed Drivetrain

Find consistency in pedalling through any incline and uncertain terrain, on road and off, with the Shimano Alivio 9 Speed Drivetrain. Shimano Rapid Fire Plus shifters make cycling through gears quick and simple.

Suspension Forks

Suntour XCT suspension forks absorb blows from uneven surfaces, keeping yourself and your frame comfortable. Suntour XCT also lets you adjust the travel of your suspension to tailor fit your ride.

Mid-Sized Mountain Bike Wheel

The 27.5" wheel size fits between the standard 26" mountain bike wheel, and the larger 29". As the middle option, the 27.5" benefits from the advantages of the 26" and 29" bikes. A 27.5" bike is more stable over bumpy roads than the 26", and easier to control in jerky, quick changing terrain than 29" wheels.

Road Legal & Compliance Tested

Don't settle for kits to modify your bike - buy a factory legal electric trike with no hassles. Our PAS (Pedal Assist System) is completely road legal, safety tested and is limited to a max speed of 25km/h.

Specifications

Colours Graphite Grey
Frame Sizes 16", 18", 20"
Frame XDS X6 Alloy
Fork Suntour XCT Suspension Fork DS-HLO, Threadless with Lock Out and Preload Adjuster (27.5" 28.6 x 25.4 x 196mm)
Handlebar Alloy X6 (W:680mm 5° H:25mm)
Grip Rubber (L:130mm)
Stem Alloy (φ28.6mm E:80mm H:43mm 7° ï¿ 31.8mm)
Seatpost Alloy, Black Clamp (ï¿ 31.6x350mm)
Seat Clamp Alloy with Quick Release (φ34.9mm)
Saddle Velo Sports, Black Leather
Pedals Iron/Plastic with CR/MO Axles, Ball Bearings (9/16")
Front Brakes Tektro Hydraulic Disc Brakes TR160-7 (160mm, 800mm, M6 x 18mm)
Rear Brakes Tektro Hydraulic Disc Brakes TR160-7 (160mm, 1325mm, M6 x 18mm)
Brake Levers Tektro Alloy Brake Levers
Rear Shifter Shimano Alivio Rapid Fire Plus SL-M4000 9 Speed

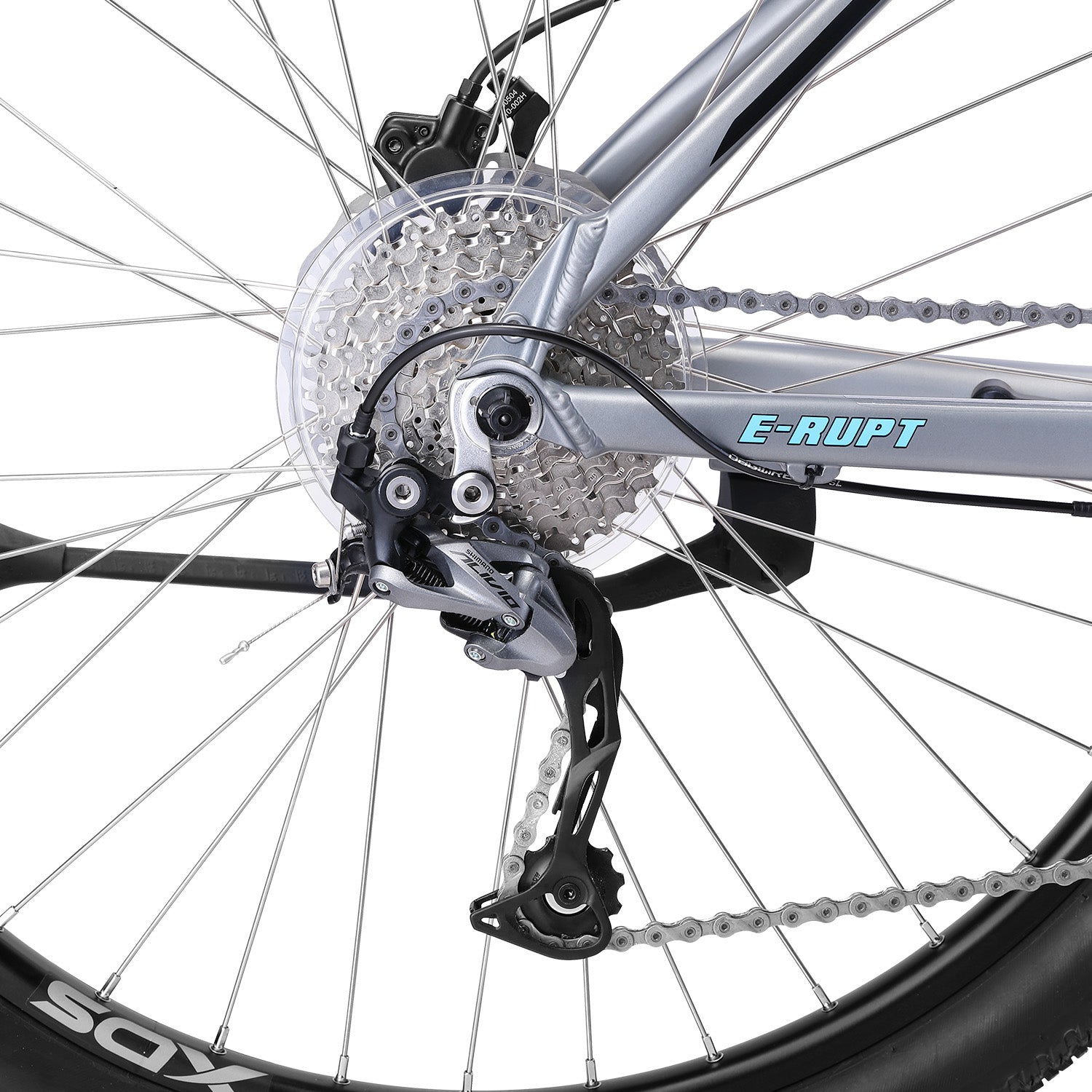

Rear Derallieur Shimano Alivio RD-M4000-SGS 9 Speed
Freewheel Shimano Cassette CS-HG400-9 9 Speed (11-34T)
Chainwheel & Cranks Bafang Alloy Black (11/128"x38T) Alloy Crank (9/16",L=170L,W/M8x1.0Px15Lx1)
Chain KMC e9 Sport (1/2" x 11/128" 116L)
Headset FSA Orbit (φ28.6xφ41.8-φ51.8xφ30mm H2166B H=16.3mm)
Front Hub KT-K68F (14Gx36H M9x100x108mm KT-204N 115mm)
Rear Hub KT-K68R (14Gx36H M10x135x145mm 8/9/10-SP KT-205N 151mm)
Bell Alloy/Plastic ( ï¿ 22.2)
Kickstand Alloy, Plastic End Cap
Spokes Stainless Steel (13G)
Tyres H-5129 (27.5"x2.2" steel 60TPI, A/V)
Rim XDS Alloy with Eyelet (27.5"x584x19x13Gx36H A/V H=17 W=25)
Electrical Components
Motor Bafang MM G330.250 36V/250W, Limit 25km/h,
CL:49mm, With Controller and Communication, AU
Display Bafang DP C07.UART LCD Display, DC 36V, 0-5 Modes,
UART communication, With Walk Boost, and Light Switch
Sensor Bafang Sensor, 1 Pulse, 5V, 500mm

Charger Information Phylion GS CE 100-240V 1.6A(MAX)50/60HZ output:42V 2A AU Plug AU
Battery Phylion 36V/11.6Ah, 2900mAh Cell, W/Intelligent Protection Board, W/Communication

Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
