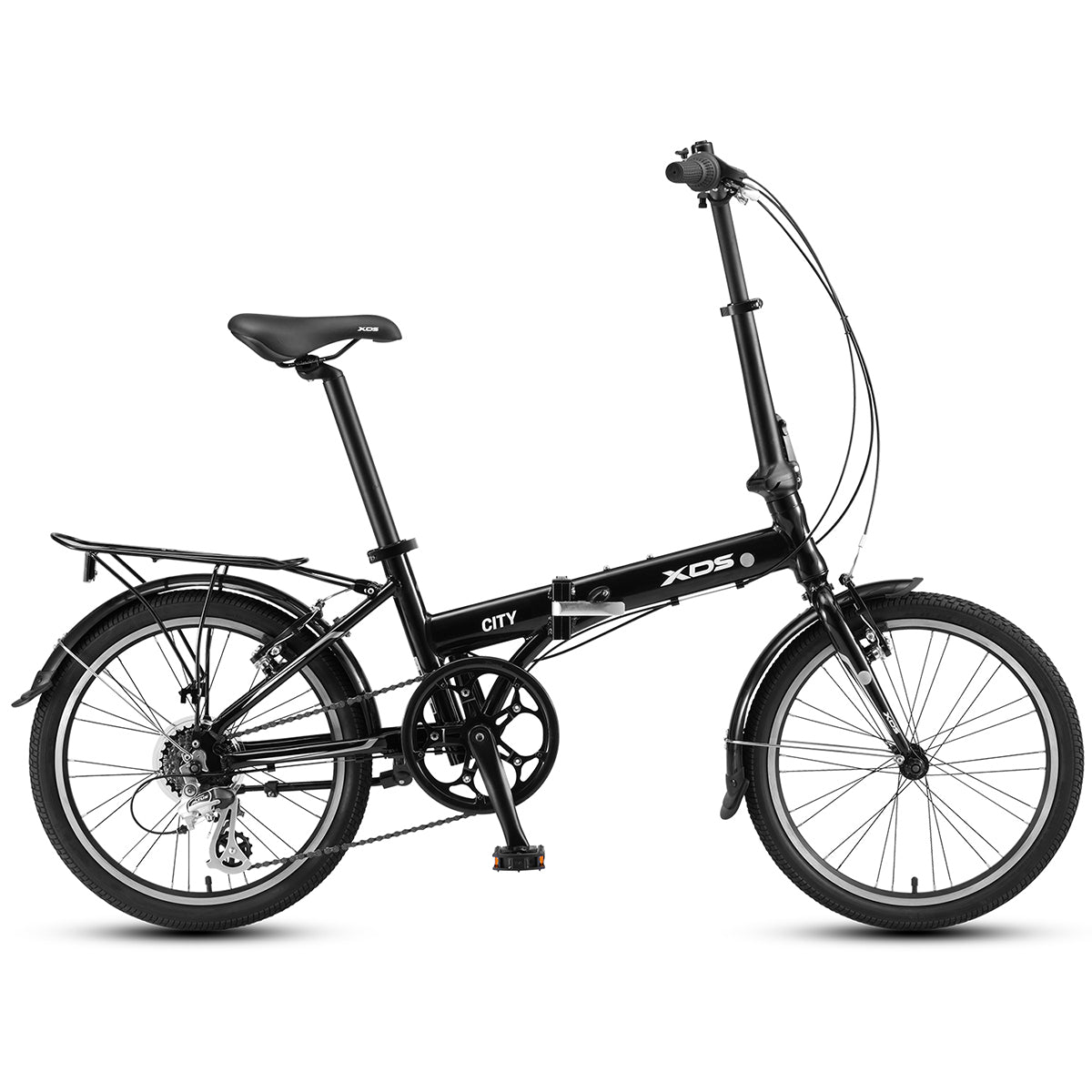

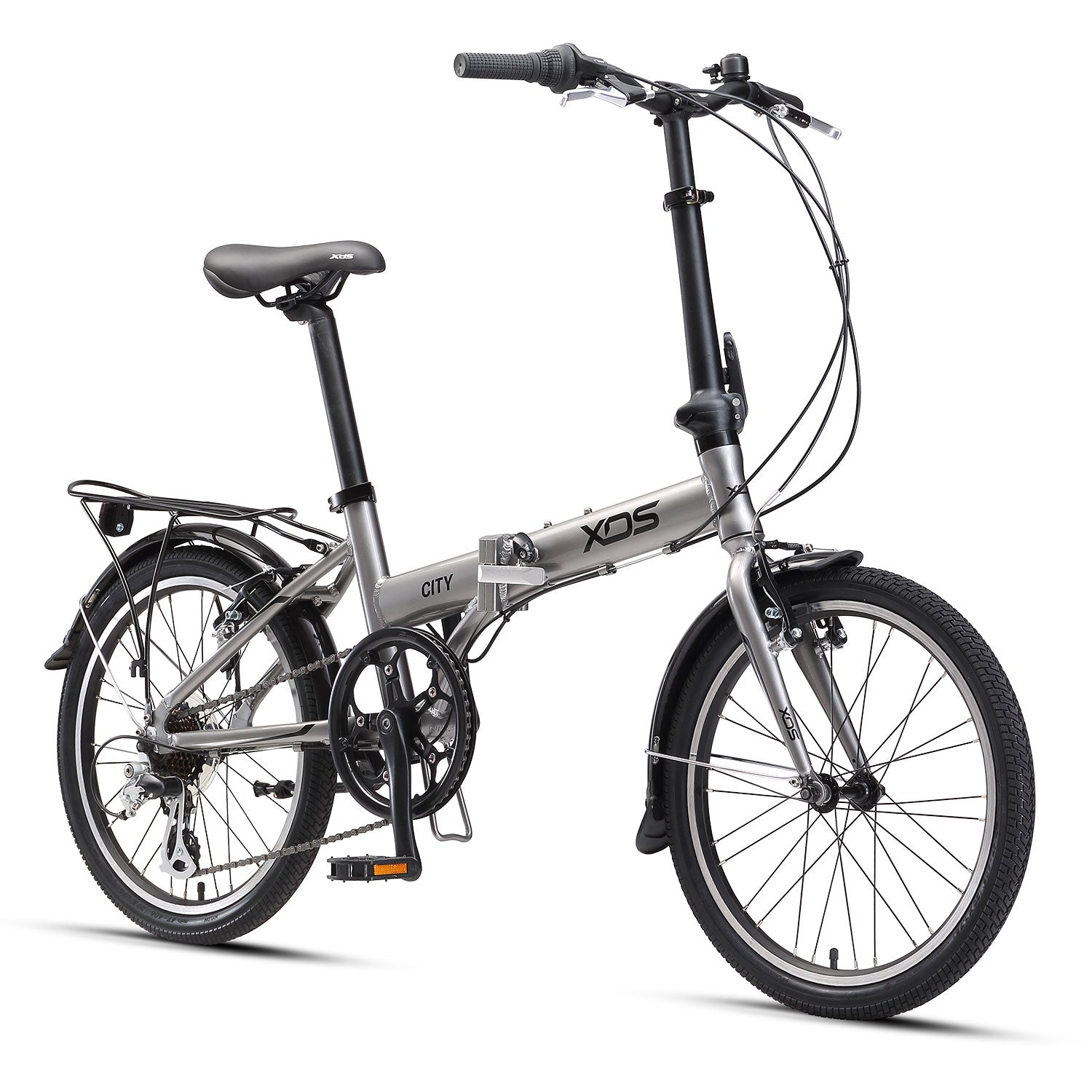

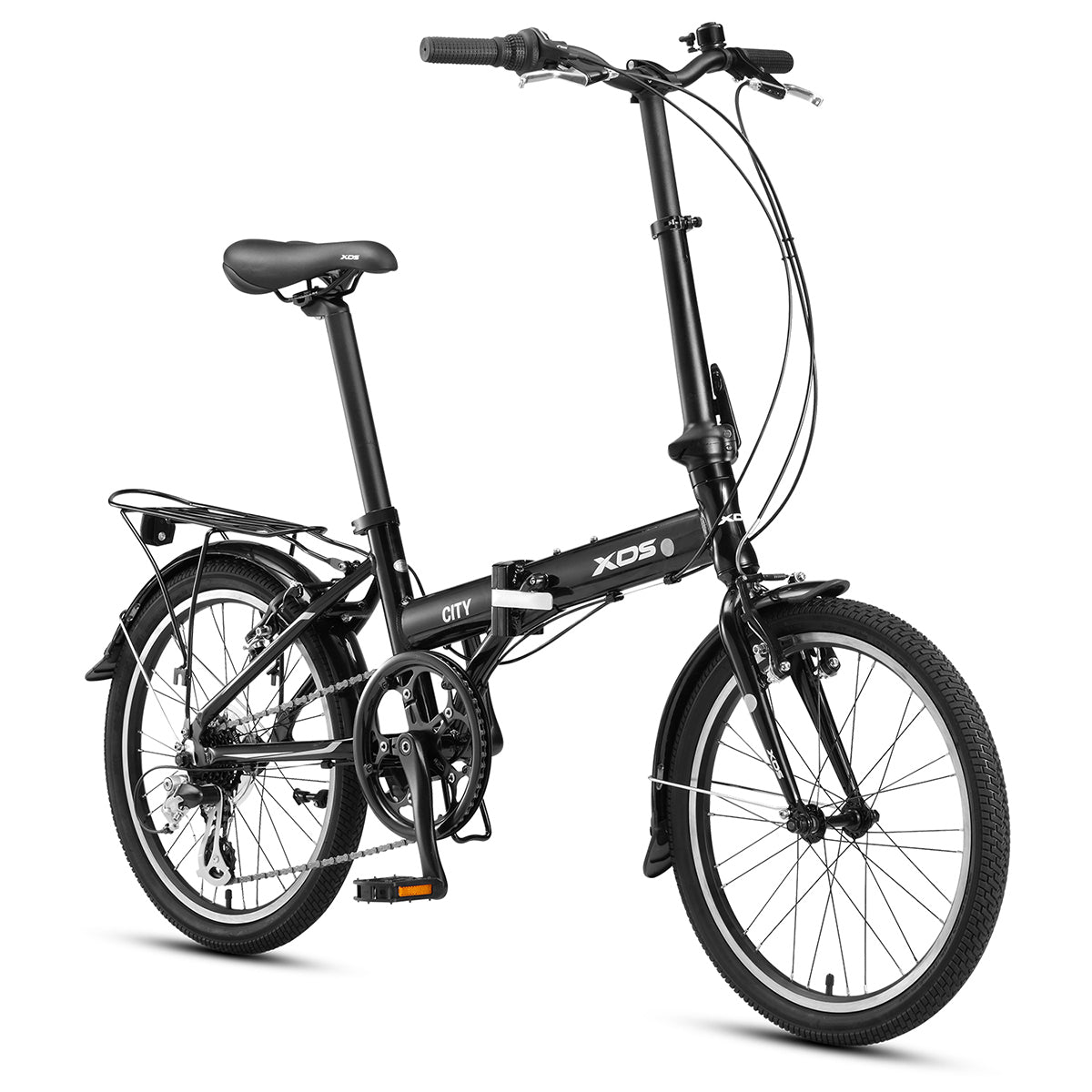

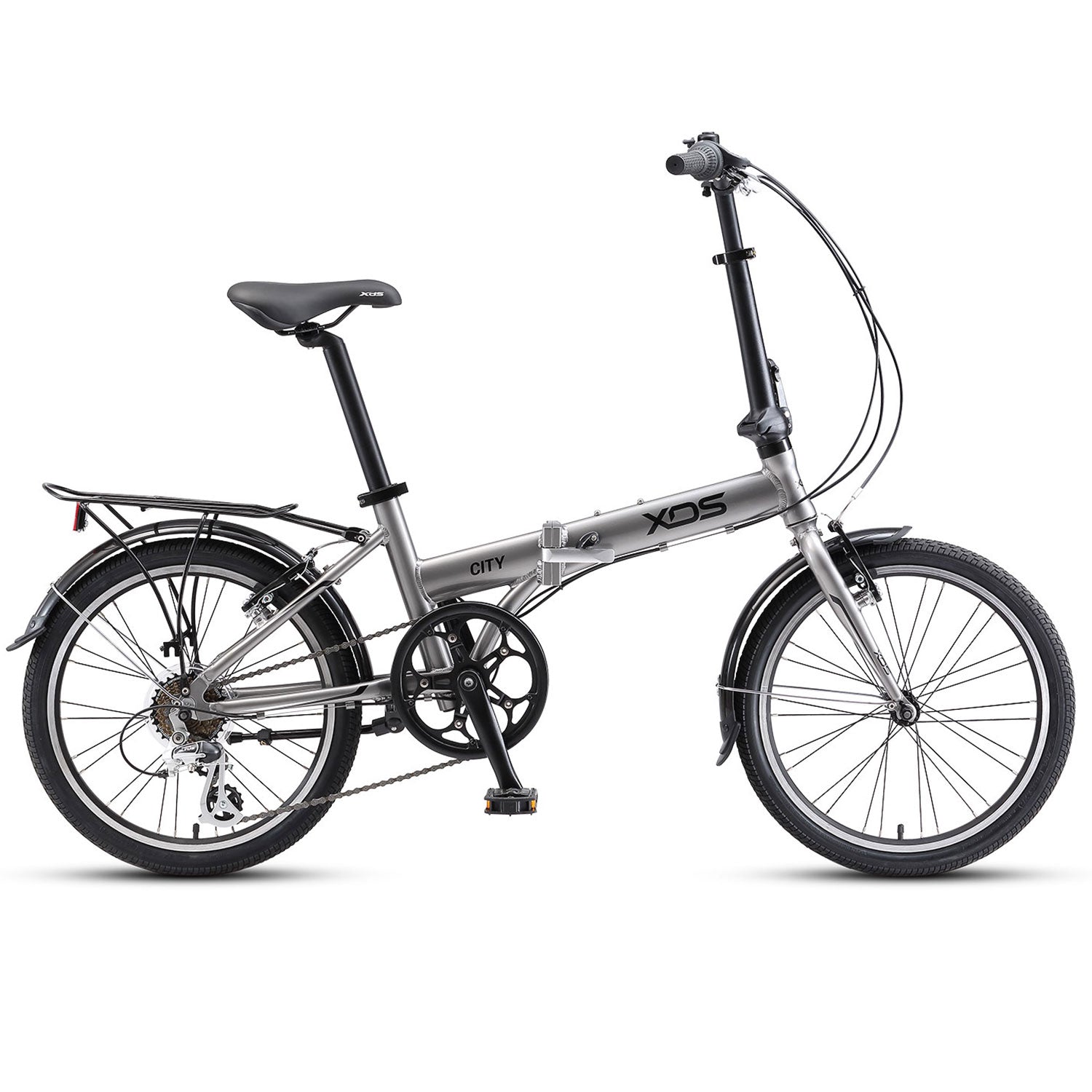

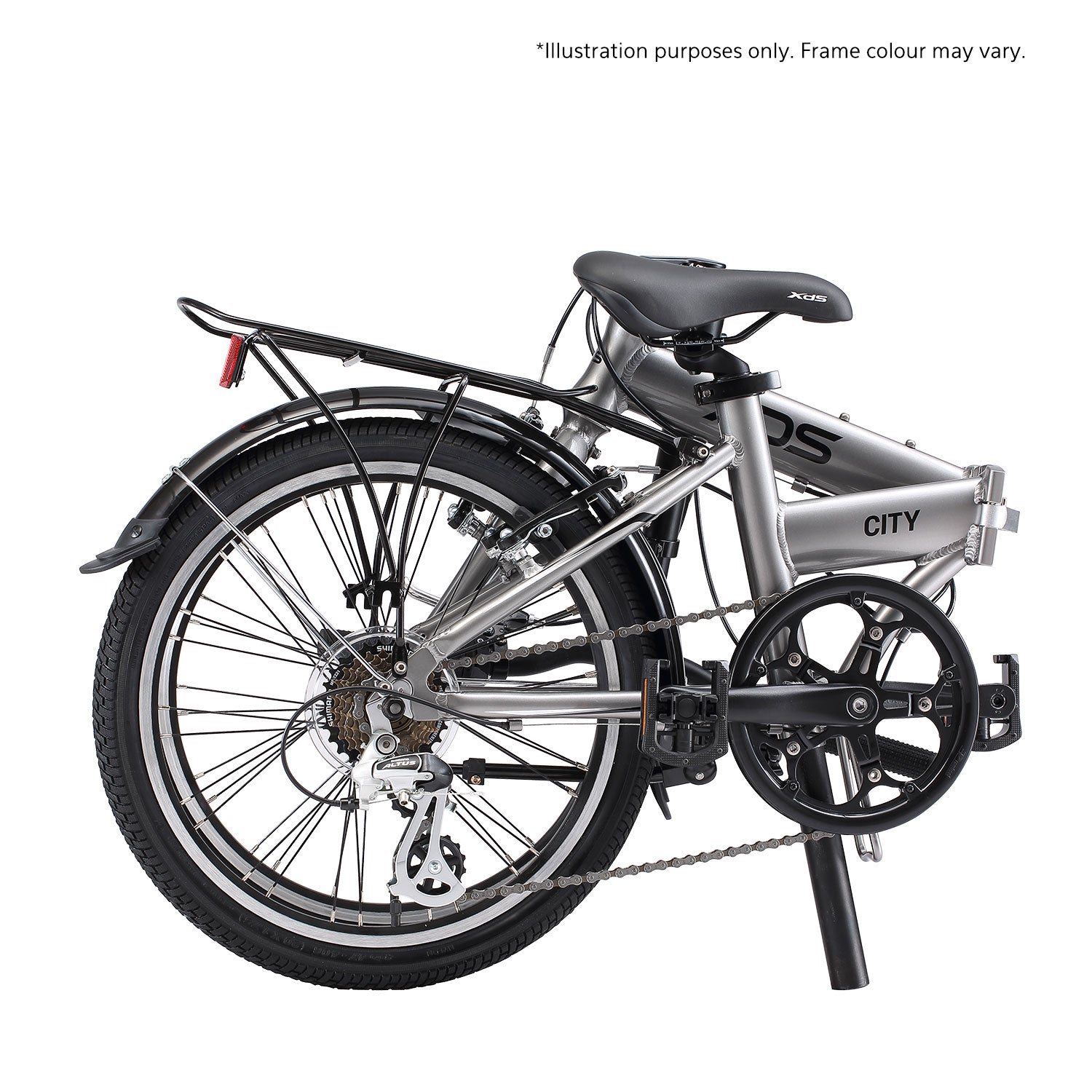

Lightweight alloy frame can be folded down to comfortably fit on public transport and light enough to be carried while folded. Pedals additionally fold to make the City 20 more compact.

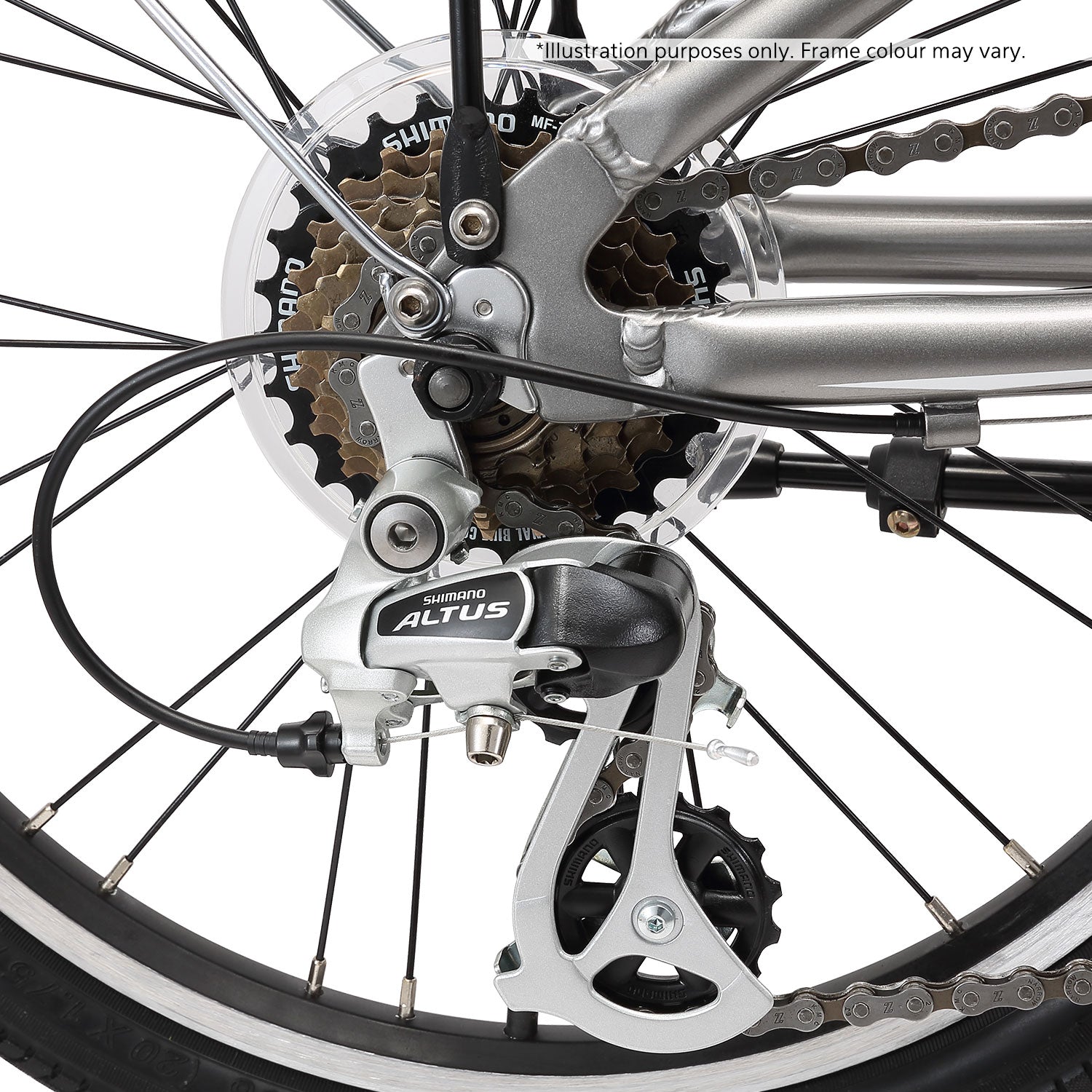

Shimano Drivetrain 7 Speed
Face the shifting terrain of any urban environment with the 7 Speed Shimano drivetrain with Shimano Altus rear derailleur and Shimano Tourney Revoshift grip shifters.
Rear Rack and Mudguards
Functional features including a steel rear rack and mudguards make the City 20 practical in a whole range of situations. Strap your load to the rack while you"™re riding around to keep it secure and comfortable.
|Fork||XDS Steel 20" (28.6 x 25.4 x 118mm W:100mm) with V Brake|
|Handlebar||XDS Alloy (VW: 560mm H: 30mm 15°)|
|Stem||XDS (38.1mm x 260mm 8° 25.4mm)|
|Seat post||XDS Alloy (34 x 2.3T x 580mm)|
|Seat clamp||Alloy Quick Release|
|Pedals||FP Nylon (9/16€)|
|Front Brakes||Alloy V Brake (L:110mm)|
|Rear Brakes||Alloy V Brake (L:110mm)|
|Brake Levers||Alloy V Brake Black, Silver Lever|

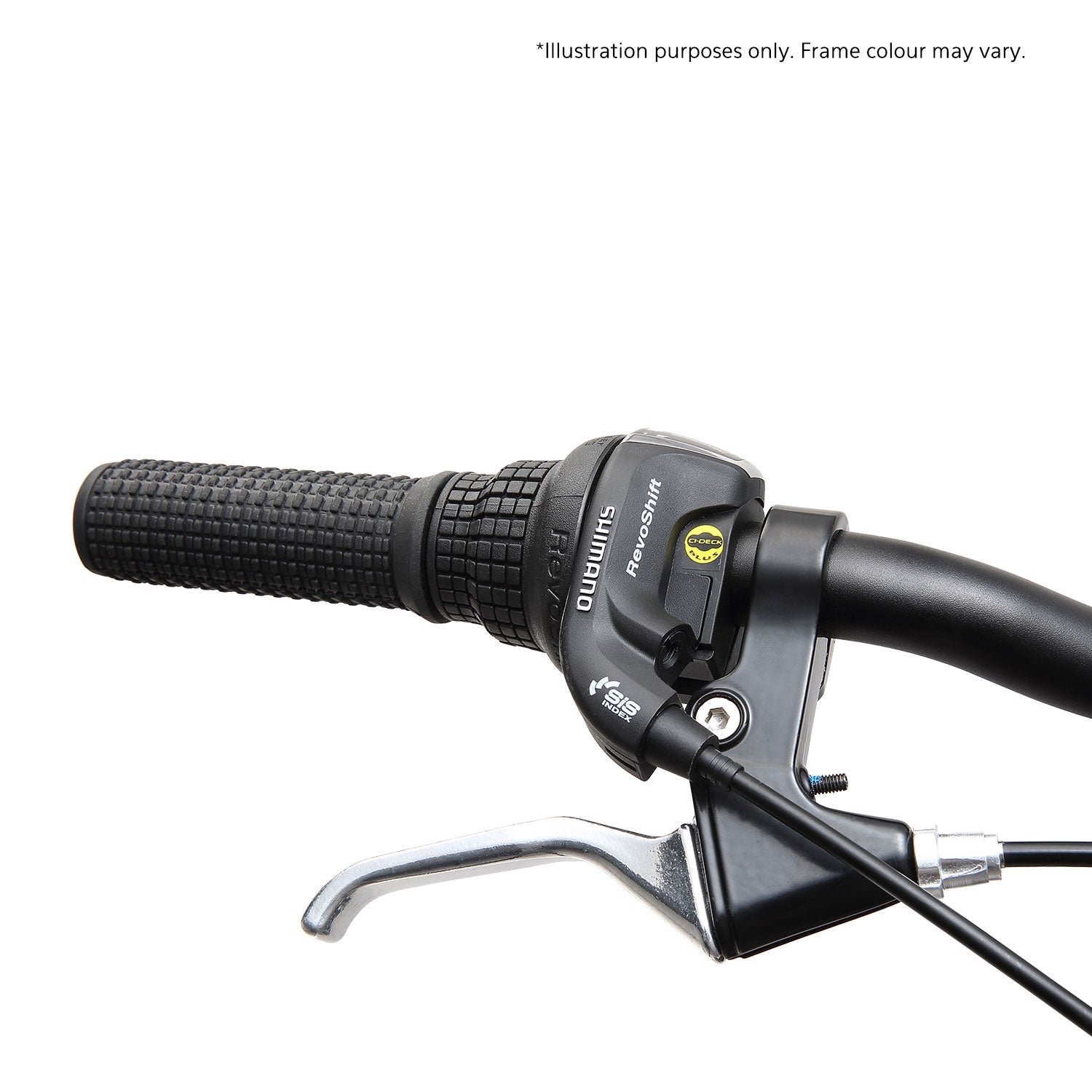

|Shifter||Shimano Tourney Revoshift (LRS35 R7 7-SPD Index: 2050mm)|
|Rear Derallieur||Shimano Altus RD31O 7/8-SPD Index|
|Freewheel||Shimano 14-28T 7-SPD Index|
|Chainwheel & Cranks||Prowheel (3/32" x 52T x 170mm) ED Chain Ring Alloy Black PVC Double Guard|
|Chain||KMC (1/2" x 3/32" x 110L)|
|Bottom Bracket||FP (BC1.37€ x 24T 5PCS)|
|Headset||FP (25.4 x 44 x 30mm H:20.5 9PCS)|
|Front Hub||KT (14G x 28H 3/8 x 100 x 140mm) with Safe Hanger|
|Rear Hub||KT (14G x 28H 3/8€ x 135 x 180 D: 38.5mm L=R)|
|Mudguards||Steel (XH-B106 F/R 20" W:51mm)|
|Rack||XDS Steel 20" H:251mm|
|Tyre||CST (20x1.75" A/V)|
|Rim||XDS (20" x 1.5" x 14G x 28H A/V) Black|
Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
Bike Size Guide
|Frame Size Number||13"|
|A - Seat Tube||32.75cm|
|B - Seat Tube Angle||72°|
|C - Head Tube Length||10cm|
|D - Chainstay length||40.5cm|
|E - Wheelbase||102.09cm|
HOW TO MEASURE YOUR INSEAM FOR BIKE
- 1 Stand straight with your back against the wall and feet shoulder-width apart.
- 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
- 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
