RRP $599.00

Ride the XDS Broadwalk along sandy roads, confident that your Shimano Nexus drivetrain will keep maintenance minimal. Low step through alloy frame and chainguard let you ride in whatever makes you feel comfortable. Take the Broadwalk to the store, with the front basket and rear rack for easy storage.
BIKBROADWKMINT-15
Size:
Colour: Pale Mint

Features

Carrying Capacity

Front basket and rear rack make carrying your clothes and towel to the beach simple, or a trip to the store on the way home.

Low Step-Through Alloy Frame

The Broadwalk"™s alloy frame is lightweight and resistant to rusting. Quick and simple mounting and dismounting with the low step-through alloy frame let you dress for the beach, not for cycling.

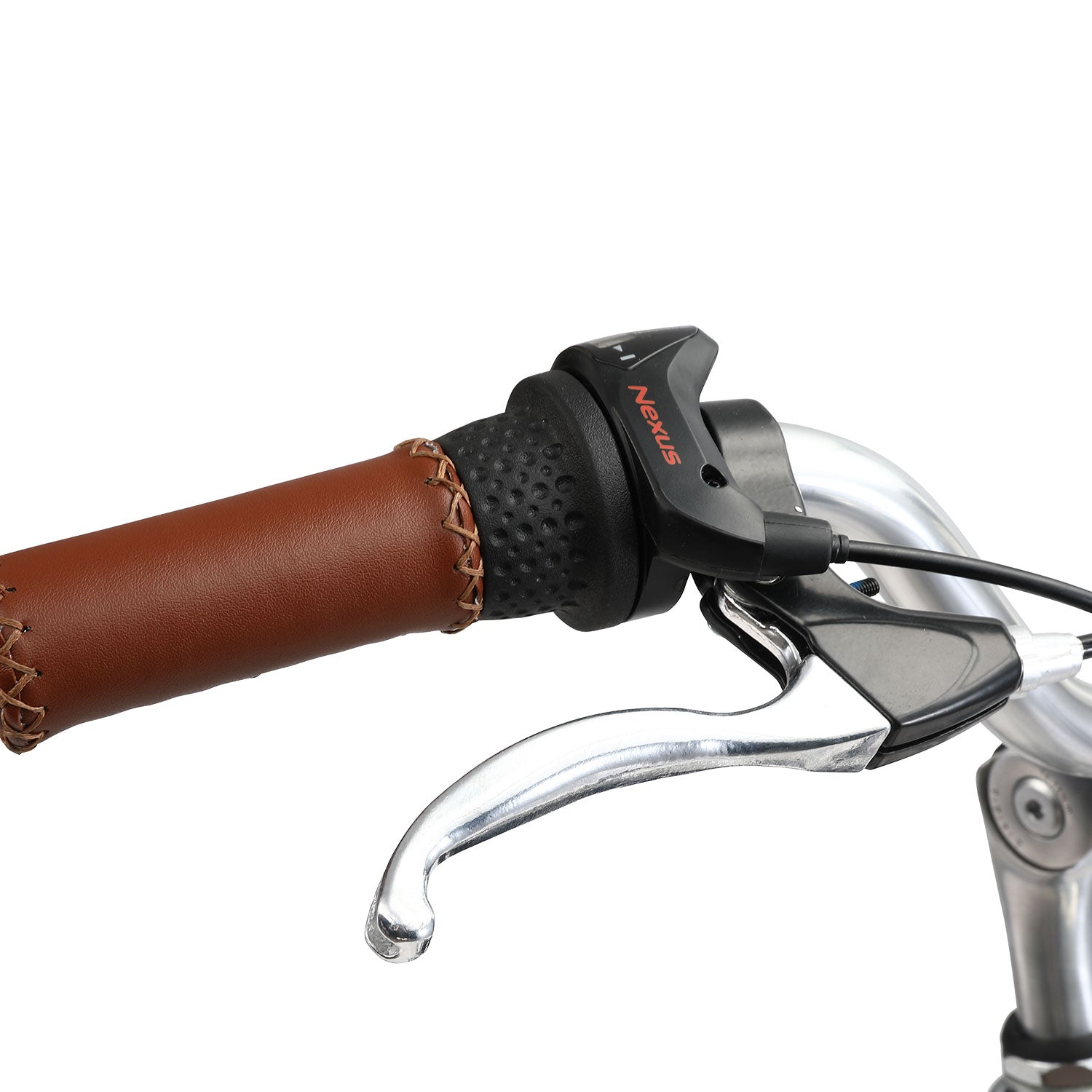

Shimano Nexus 3 Speed Hub Gear

Reduce the need for maintenance with the Shimano Nexus hub gear. Gears are kept safely inside the outer shell that protects them from the elements and keeps them clean.

Specifications

Colours Pale Mint, White, Black
Frame Size 15",18"
Frame Alloy 26" x 17" (HT42x34x200mm)
Fork Steel 26" (28.6 x 25.4 x 236mm W:100mm)
Handlebar XDS Alloy (W:600mm H:80mm 25°)
Grip Cionlli Leather Look (L:128mm R:97mm)
Stem XDS (25.4 x 150mm E:90mm)
Seat Post Alloy (27.2 x 350mm)
Seat Clamp Quick Release Clamp (31.8mm)
Saddle Cionlli CP Spring
Pedals FP 839 with ball (9/16")
Front Brakes Power V Brake (L:225mm x 20mm)

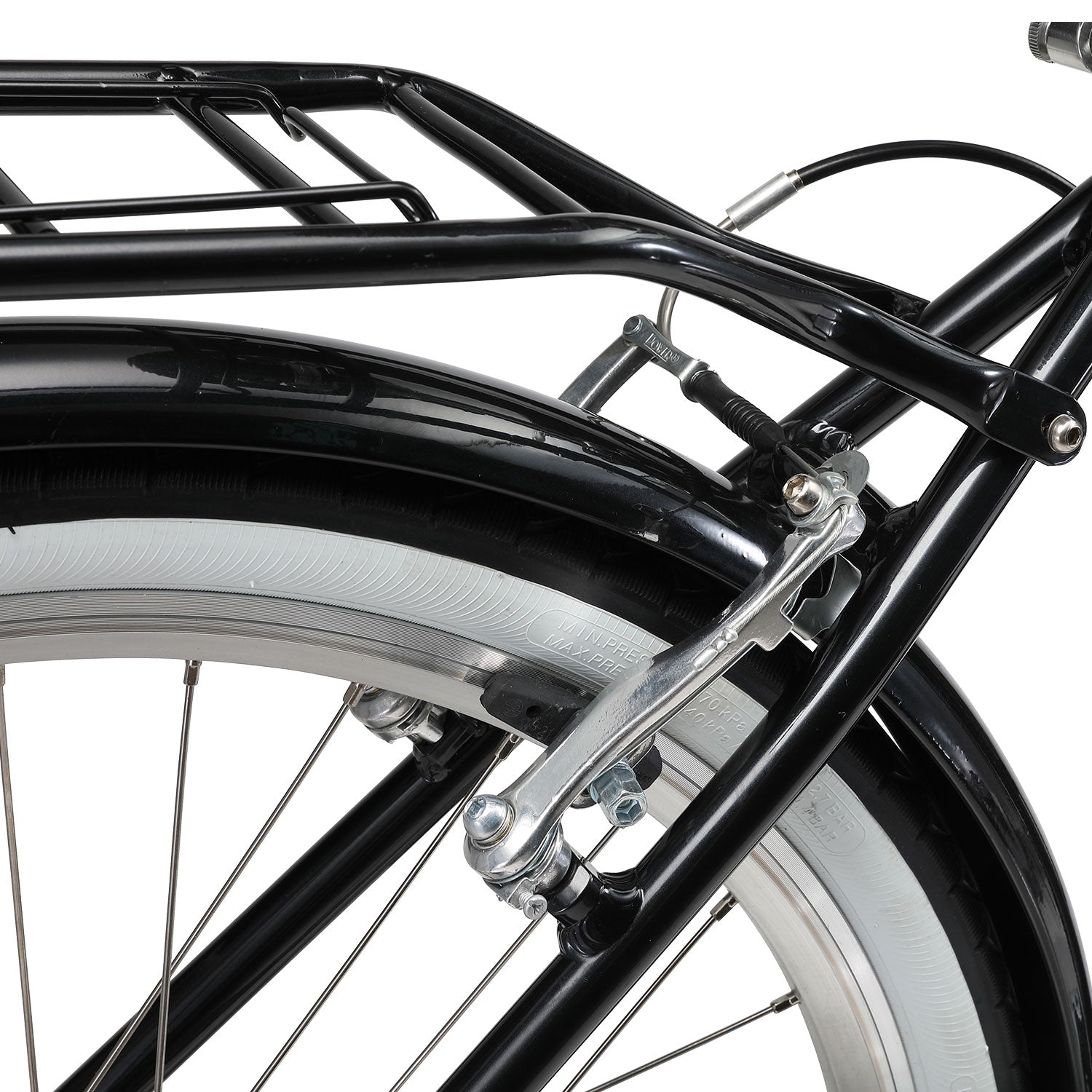

Rear Brakes Power V Brake (L:225mm x 20mm)
Brake Levers Power L/R Black/Silver
Spokes Stainless Steel (14G x 263mm)
Rear Shifter Shimano Nexus SL3S41E 3 Speed Hub Gear (W:1800mm)
Freewheel Shimano 18T (3mm) Black
Chainwheel & Cranks Powerwheel Alloy/Steel (1/2" x 1/8" x 40T x 170mm)
Chain KMC (1/2" x 1/8" x 98L)
Chainguard Steel P (38-42T 450mm)
Bottom Bracket FP-BC (1.37" x 24T 68mm L:115mm)
Headset FP-25.4x34x30mm)
Front Hub KT Alloy 24G x 36H
Rear Hub Shimano Nexus ASG 3R40 3 speed
Mudguards Steel 26" Front and Rear Fenders (W:60mm)
Bell Plastic/Alloy (22.2)
Rack Steel
Basket Wicker with Steel Cradle
Tyre 26" x 1.75" White Wall A/V
Rim XDS Alloy (26" x 1.5" x 14G x 36H A/V H: 16.3 W:25)

Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.

Box Sizing Guide

Alloy Frame
Frame Size Number 15" 18"
Wheel Size 26" 26"
A - Seat Tube 38.1cm 45.7cm
B - Seat Tube Angle 73° 73°
C - Head Tube Length 14cm 14cm
D - Effective Top Tube 58.33cm 60.83cm
E - Chainstay length 43.7cm 43.7cm
F - Wheelbase 107.5cm 110.06cm
Measure Bike Inseam
  • HOW TO MEASURE YOUR INSEAM FOR BIKE

  • 1 Stand straight with your back against the wall and feet shoulder-width apart.
  • 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
  • 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.
