SKU: XDEL-SP5PG-S

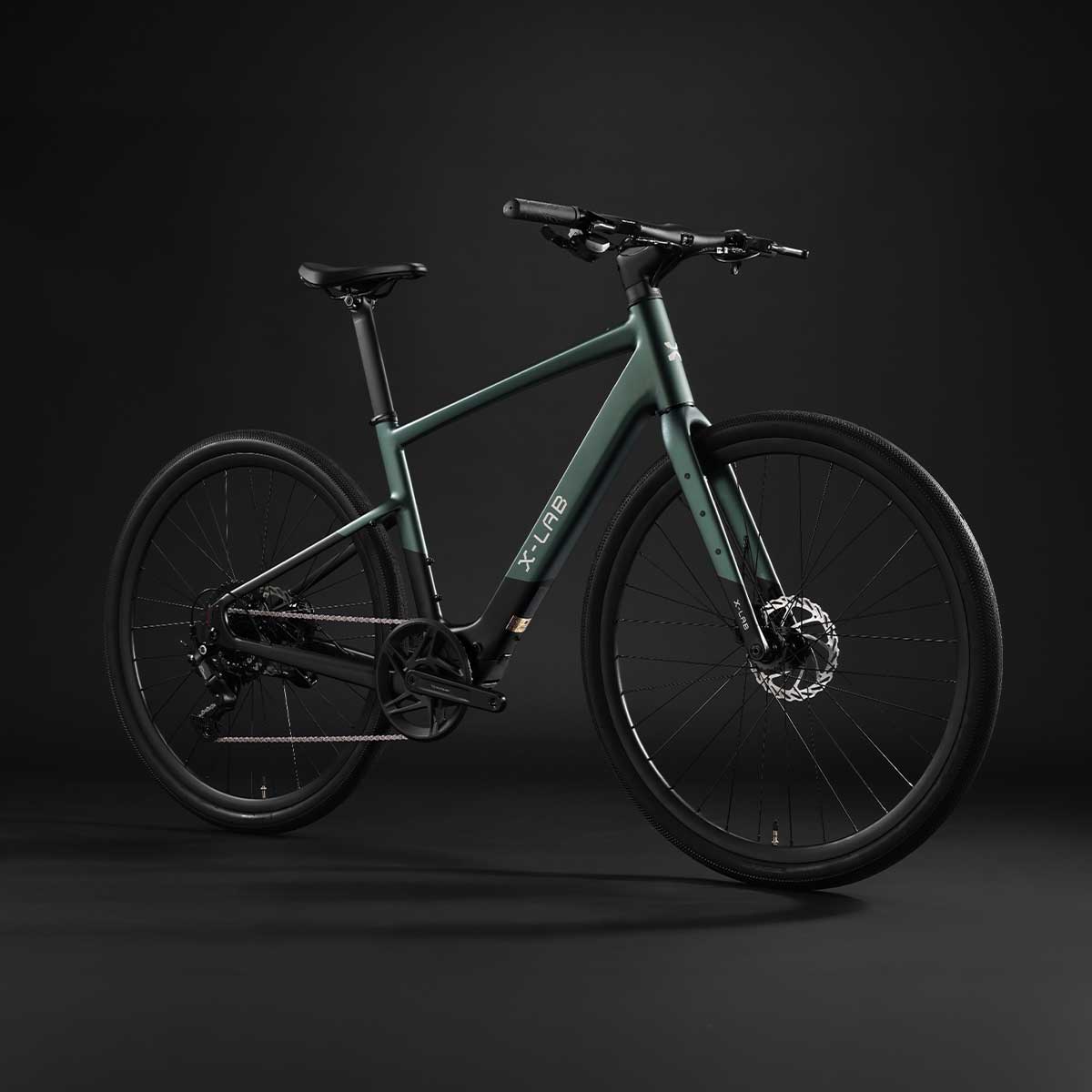

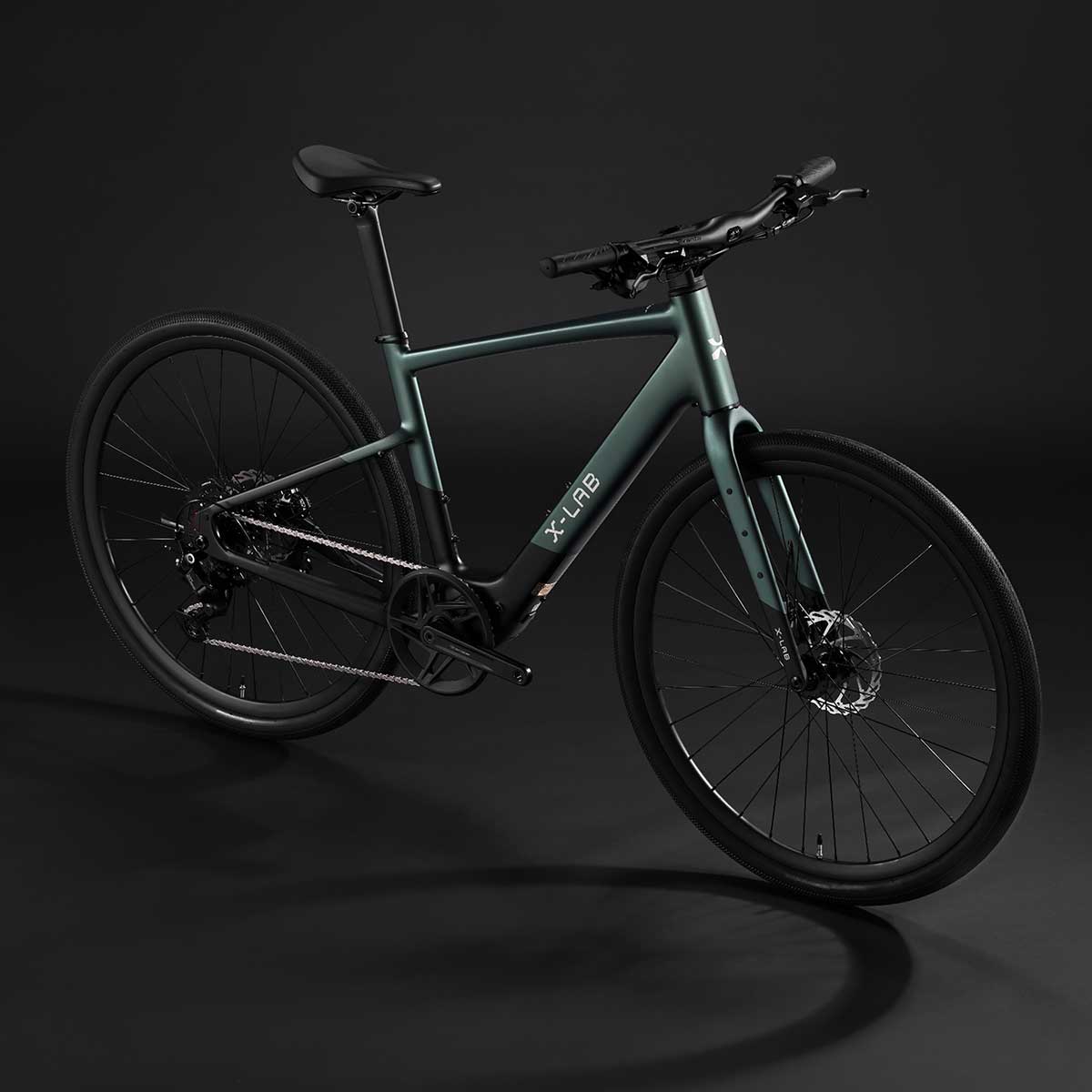

SP5+

$2,999.00 RRP

  • "The motor itself is very quiet... on normal cruising, it's nearly silent." - BikeRumor
  • Lightweight build at ~16.7 kg for convenient commutes
  • Mid-Drive Motor (85Nm peak)
  • 339Wh battery + up to 43 mile (69km) commuting range
  • UL Tested + Find My + Integrated Display

Colour

Pinecrest Green
Frame Size

SP5+

$2,999.00
|
Pinecrest Green
|
Select Size
Choose Options

Online Ordering coming soon

Not sure what size you should ride? Visit one of our retailers in your area.

Find a Retailer
Everything You Need Right Up Front
Everything You Need Right Up Front

Everything You Need Right Up Front

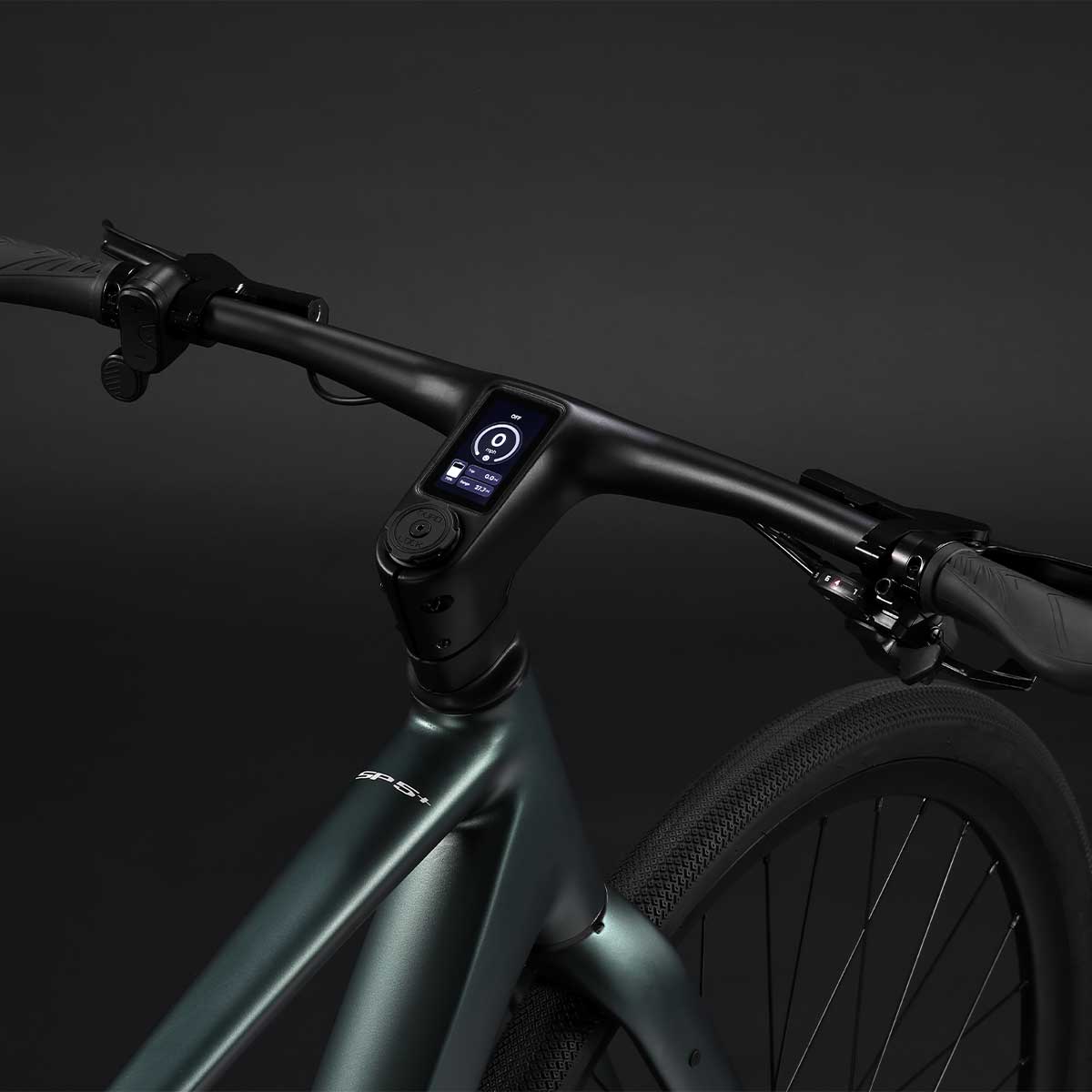

An integrated cockpit and clear dashboard makes riding intuitive with assist modes, range, and ride essentials all in one clean interface designed for effortless daily use.

Lightweight and Versatile Electric Mobility
Lightweight and Versatile Electric Mobility

Lightweight and Versatile Electric Mobility

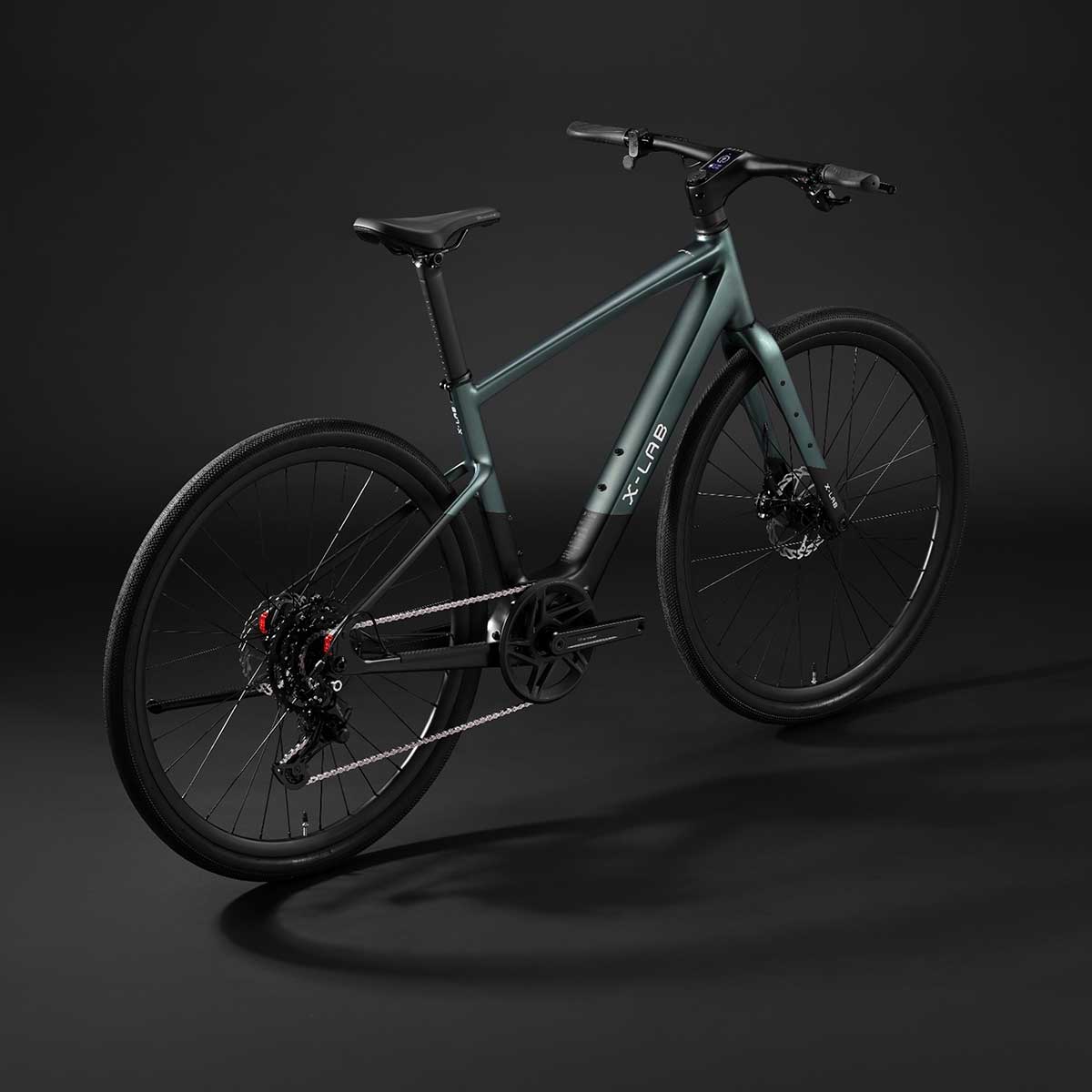

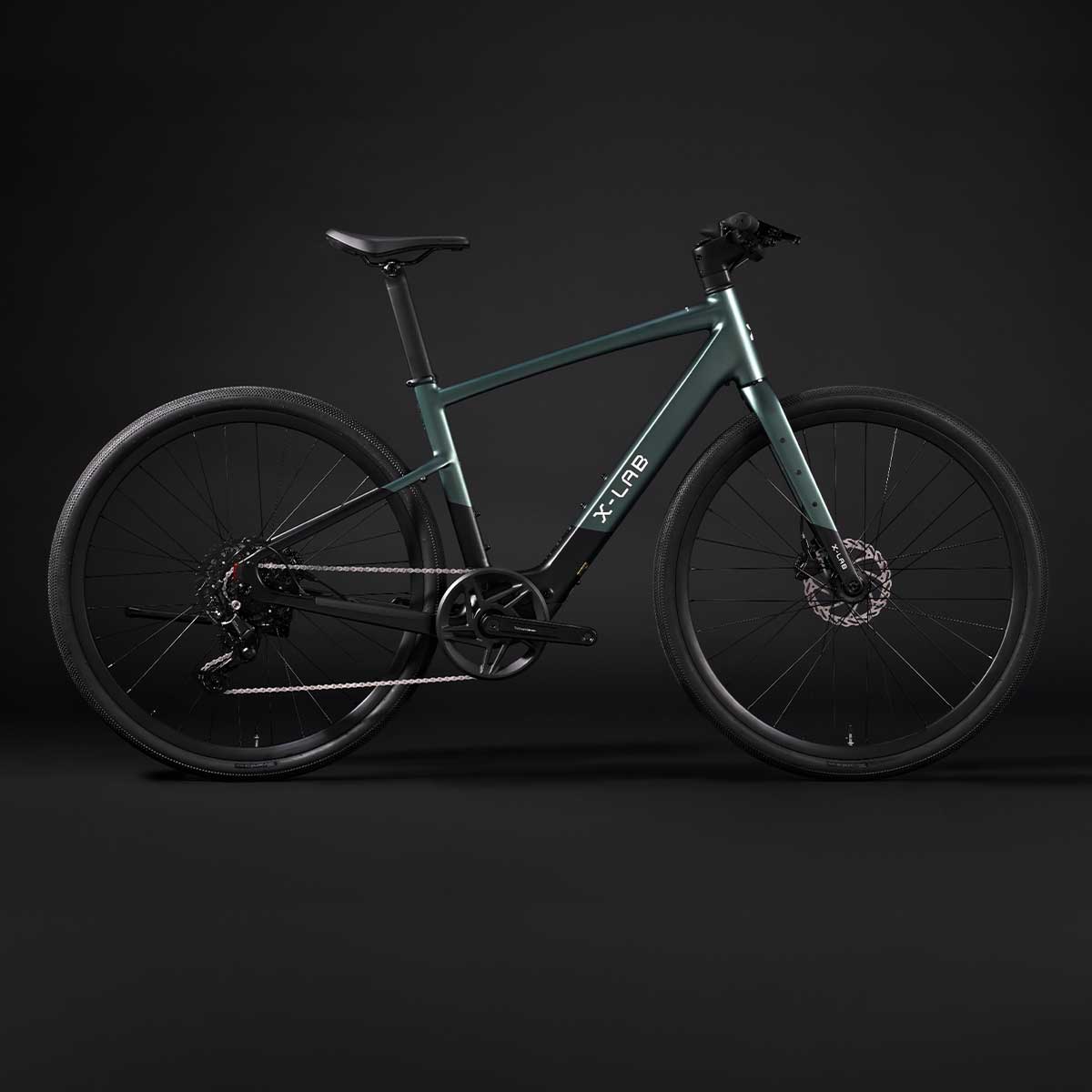

A sleeker alloy frame and a complete build under 37 lbs makes the SP5+ feel quick, agile, and more like a fitness bike, just with an extra reassuring push whenever you want it.

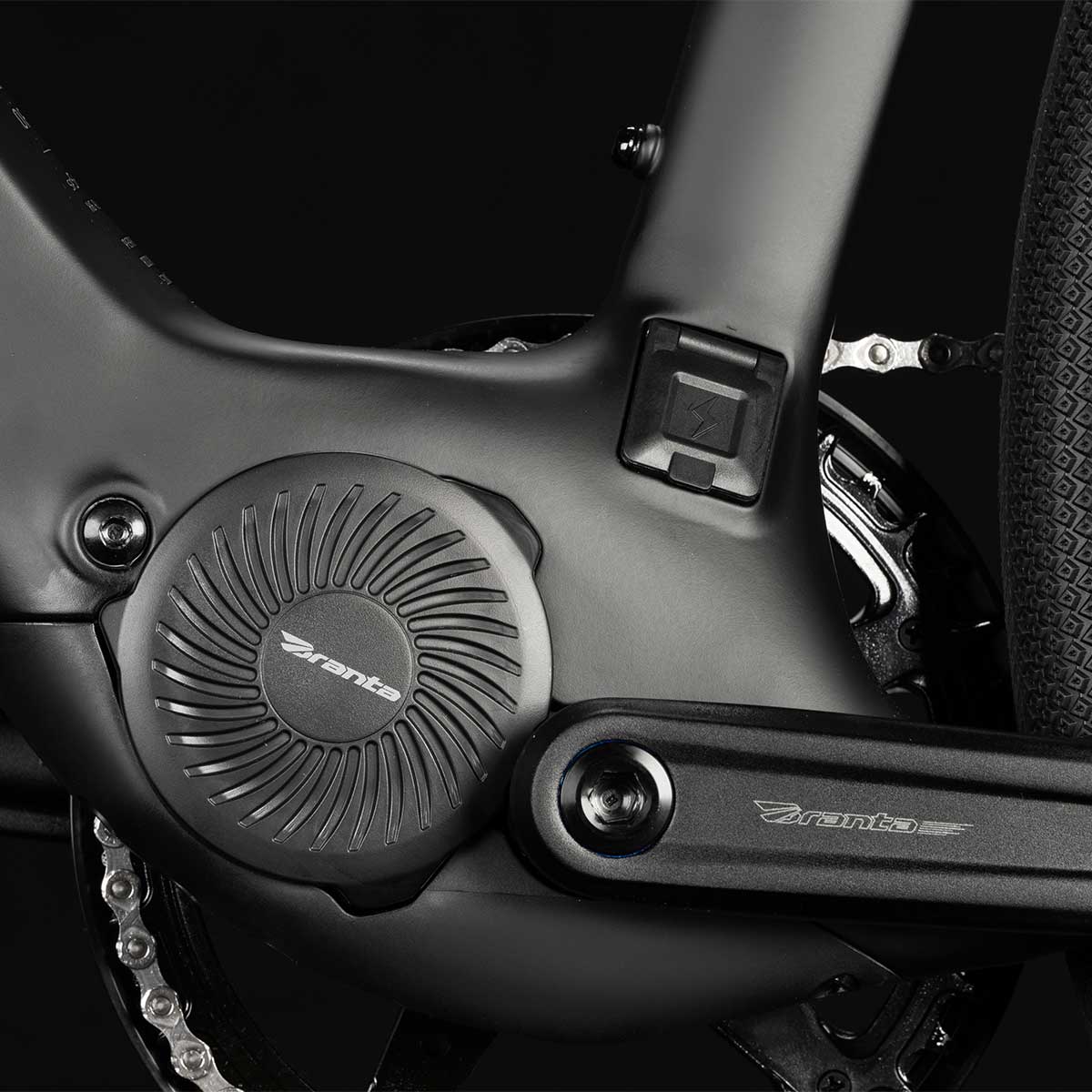

Mid-Drive Integration the Branta Way

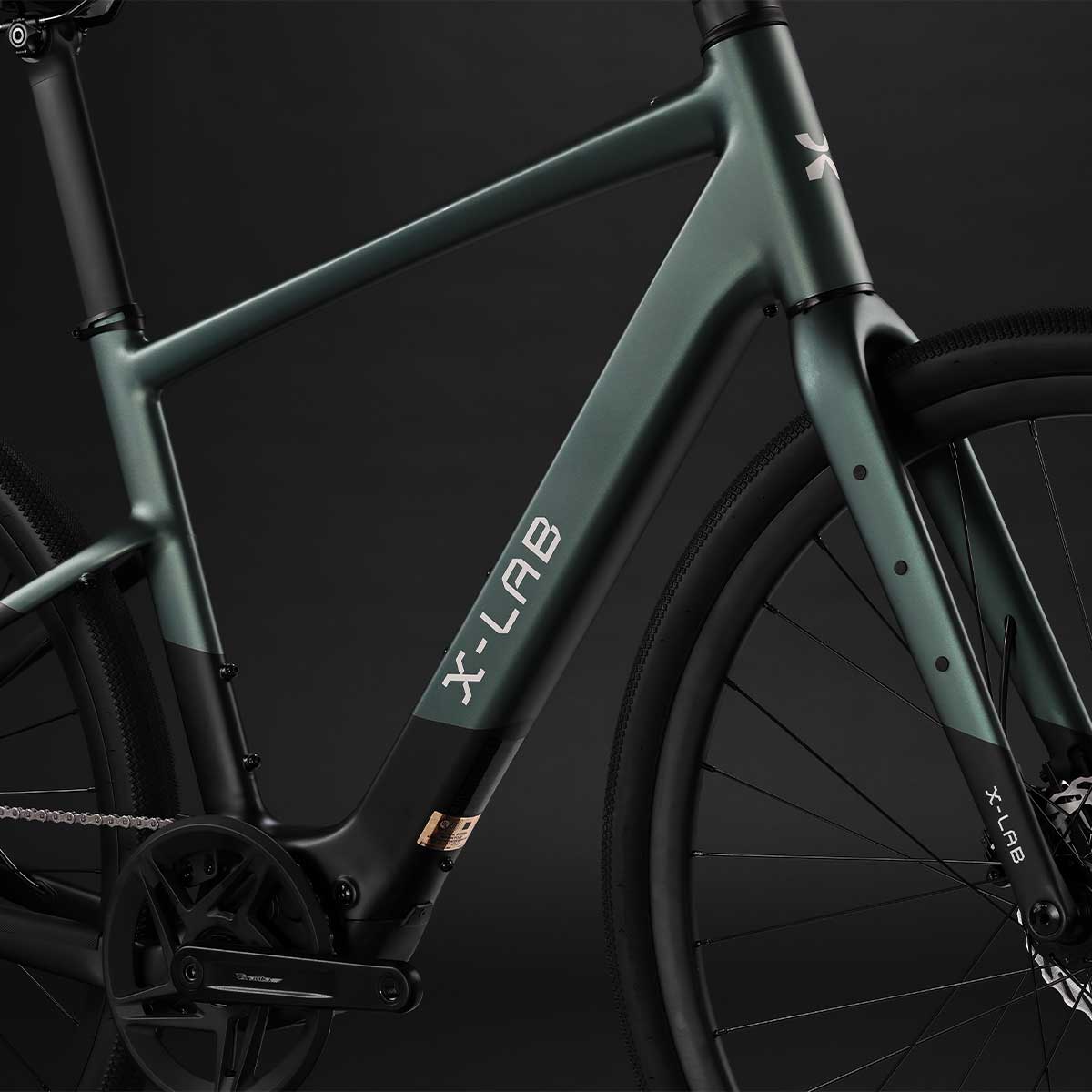

With an in-house mid-drive system supported by Branta platform integration, the SP5+ is built to keep the bike clean, capable, and easy to maintain ride after ride.

Fitness-First Electric, Smarter by Design
Fitness-First Electric, Smarter by Design

Fitness-First Electric, Smarter by Design

With Find My and app-powered controls, SP5+ brings modern e-bike intelligence to a lightweight, sporty platform – unlocking personalization, firmware updates, and ride tracking without adding difficulties.

Item added to cart

Highlights

Key Features

Class 2 throttle + Apple Find My anti-theft technology

Class 2 throttle + Apple Find My anti-theft technology

Shimano CUES 9-speed drivetrain

Shimano CUES 9-speed drivetrain

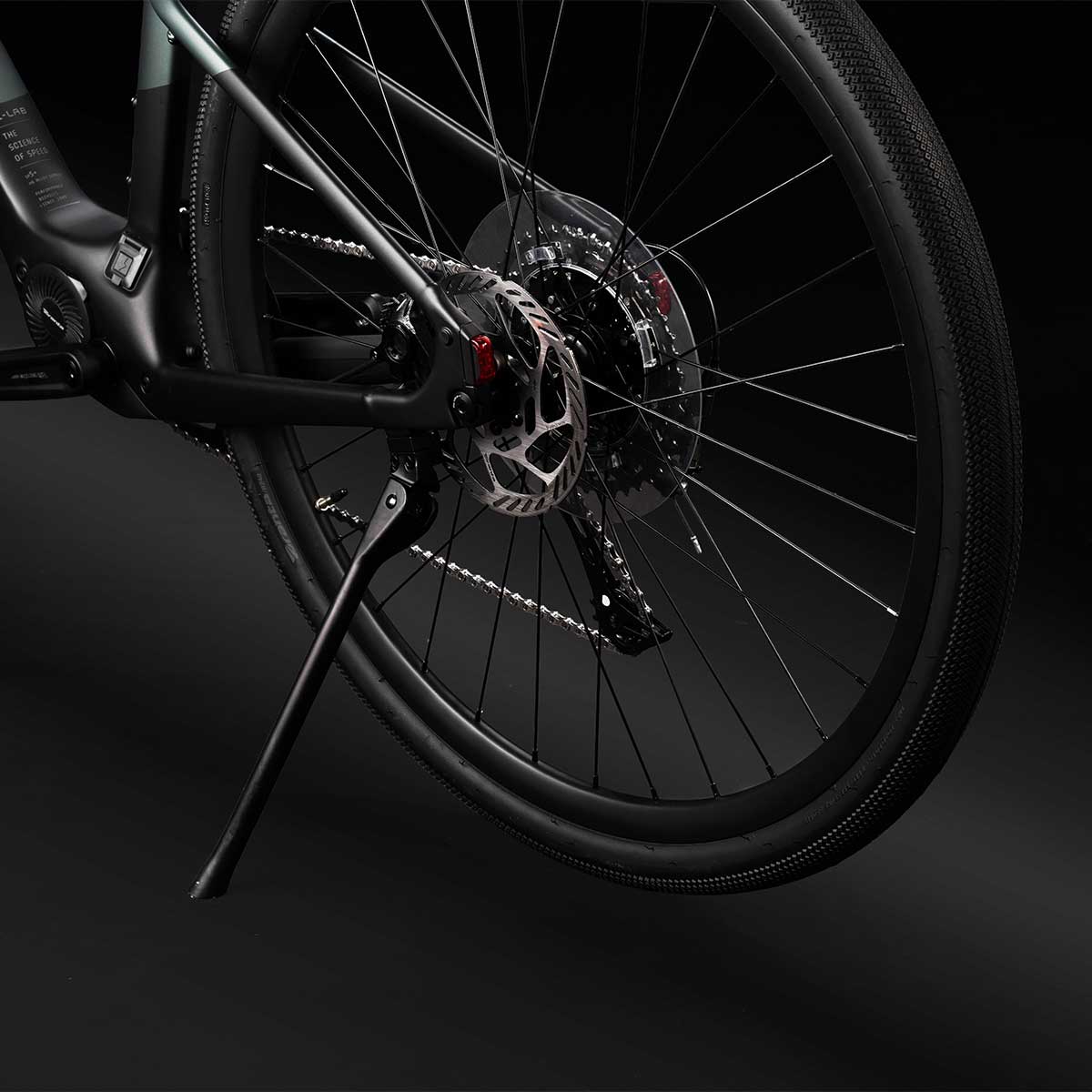

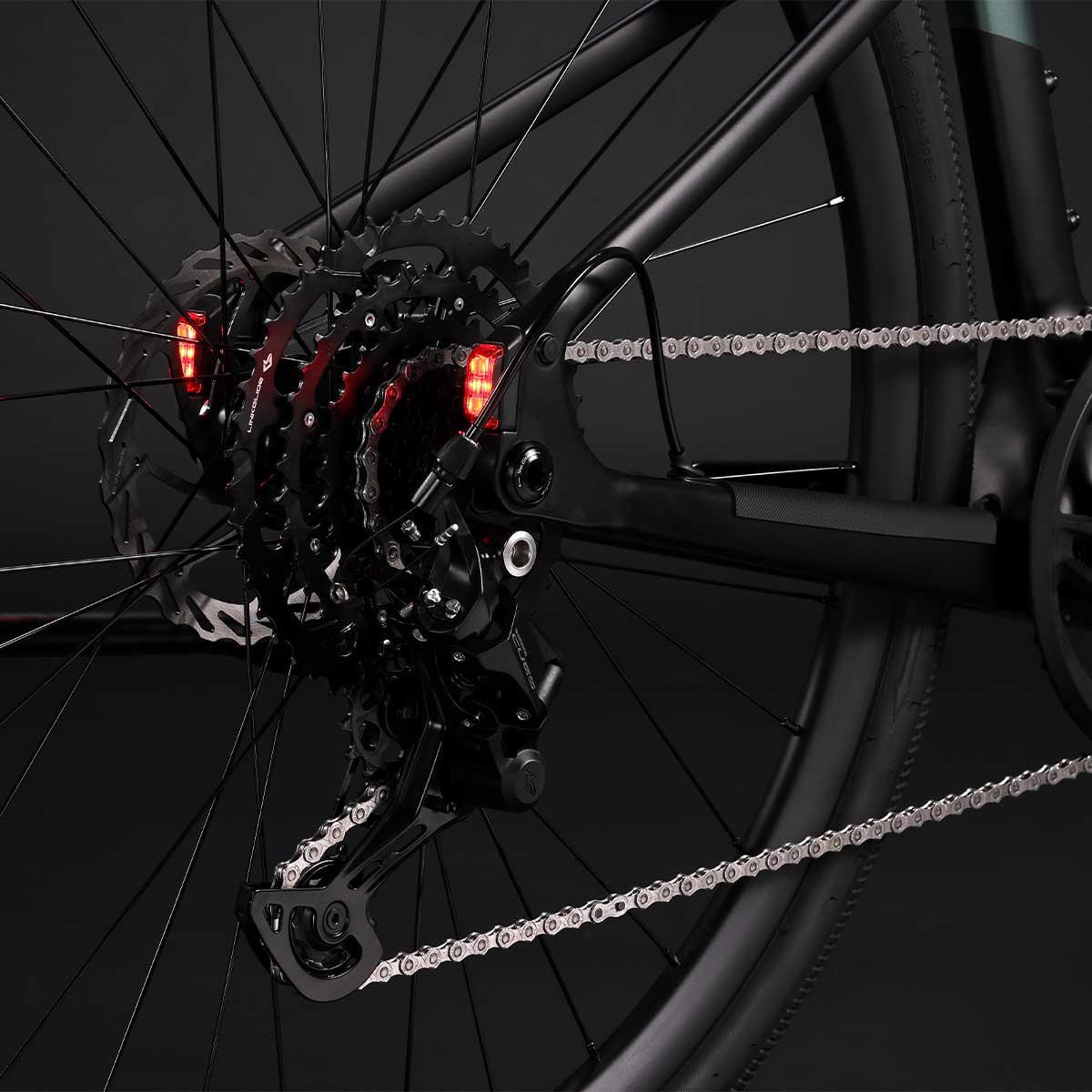

Integrated rear taillight + brake light

Integrated rear taillight + brake light

Sport setup: 700c gravel all-terrain tires and fitness riding position

Sport setup: 700c gravel all-terrain tires and fitness riding position

Technical Specifications

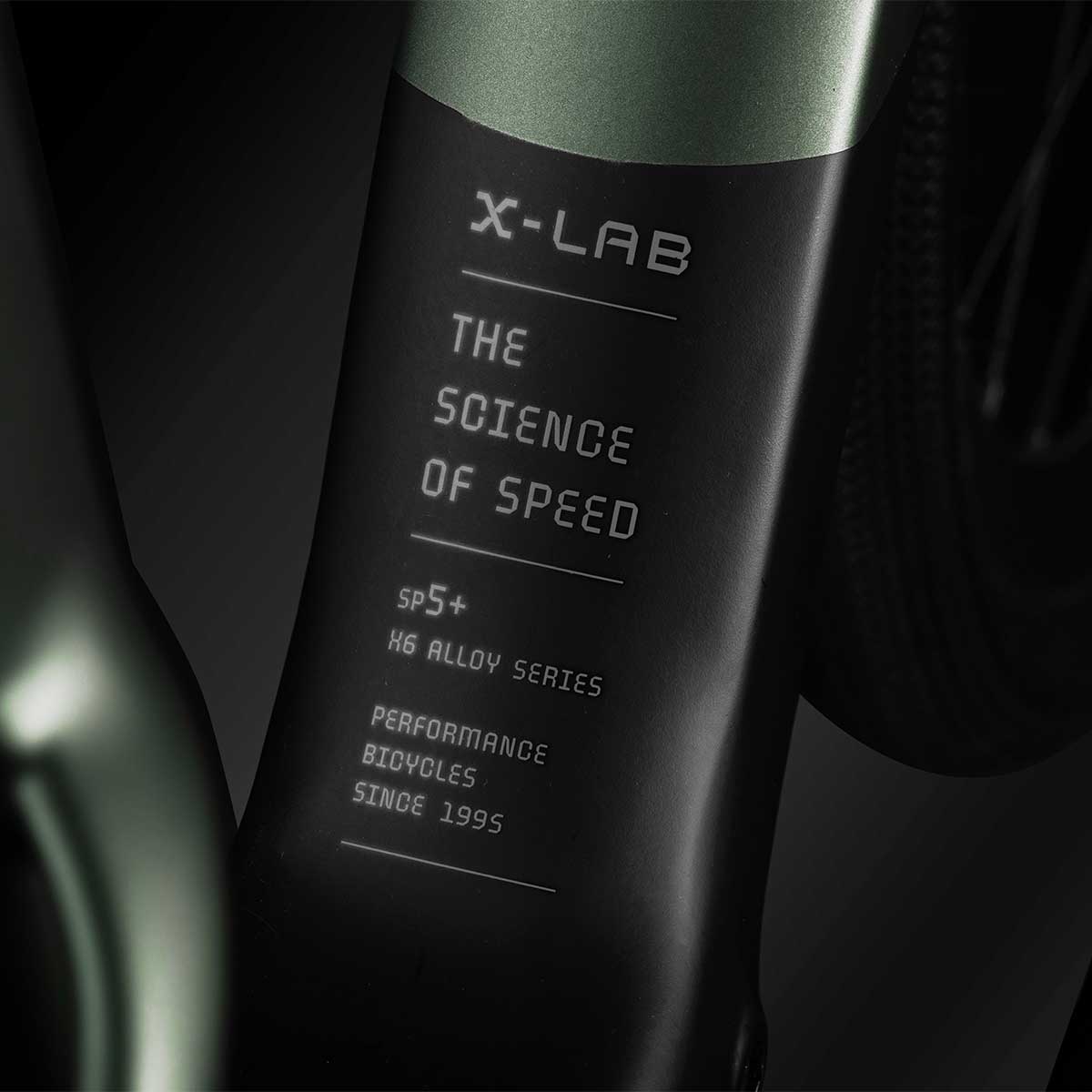

Frame

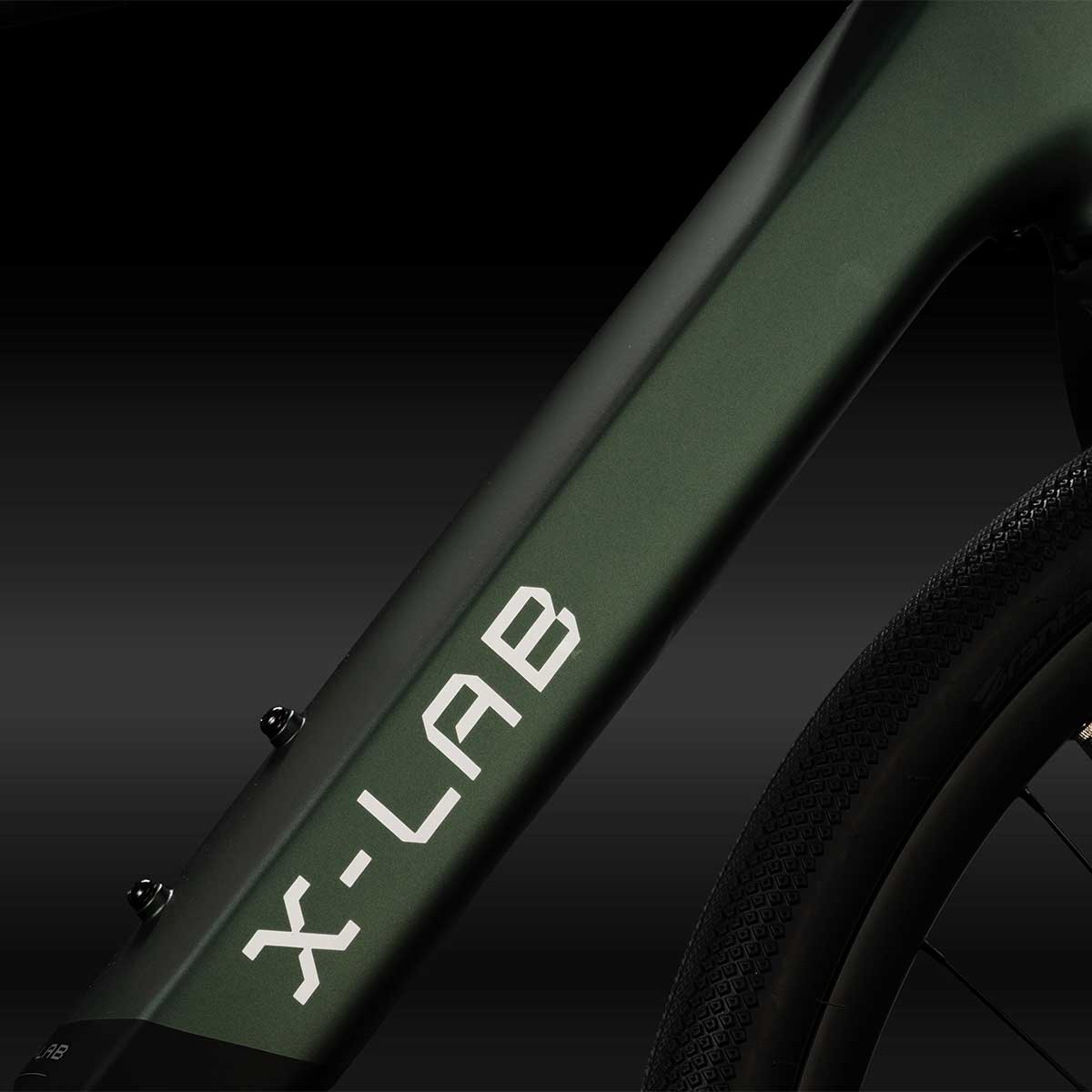

XDS X6 Aluminum Frame, UDH Compatible

Fork

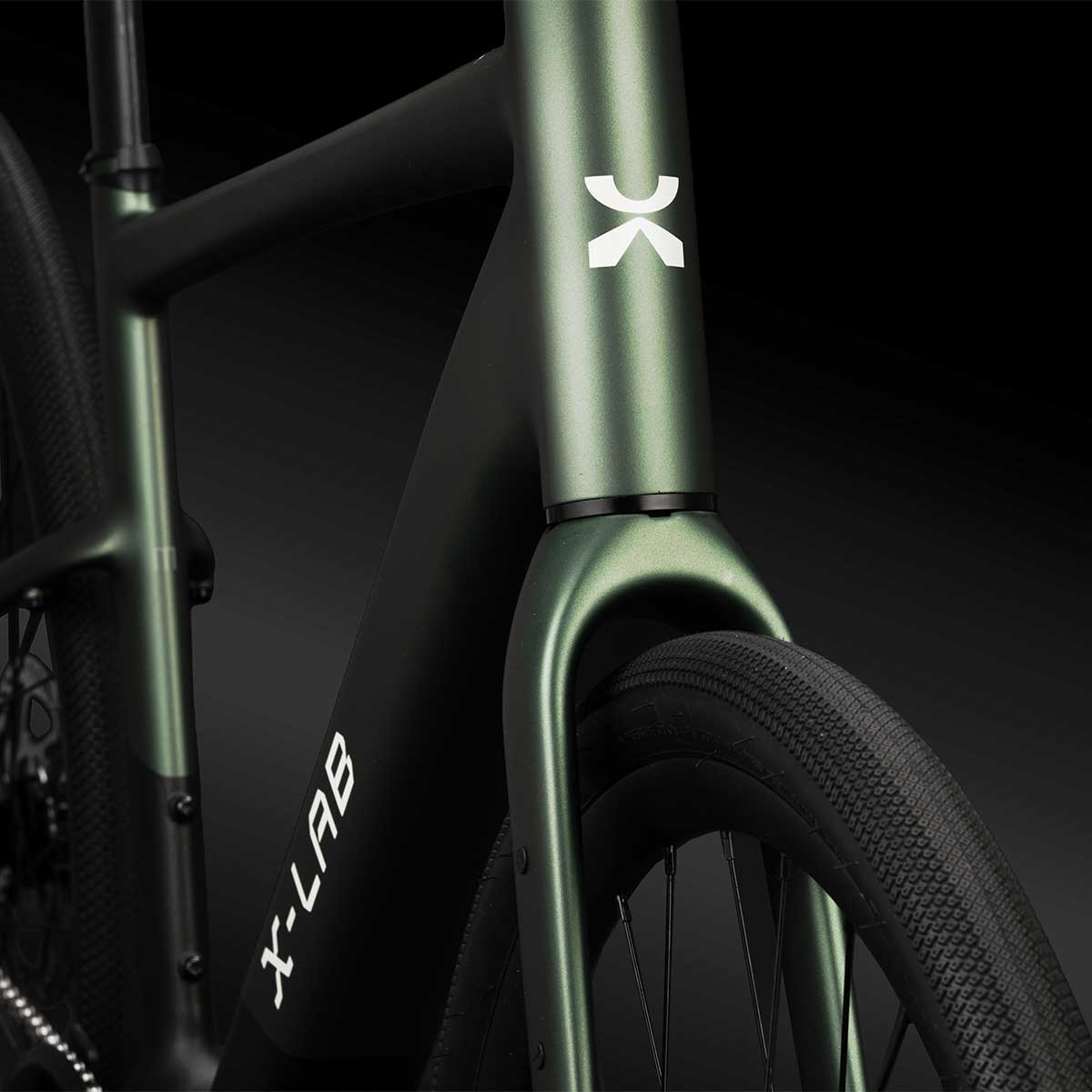

XDS Carbon Fork, 100x12mm Thru-axle

Gear Shifter

Shimano Cues SL-U4000-9R

Rear Derailleur

Shimano Cues RD-U4000, 9-Speed

Crankset

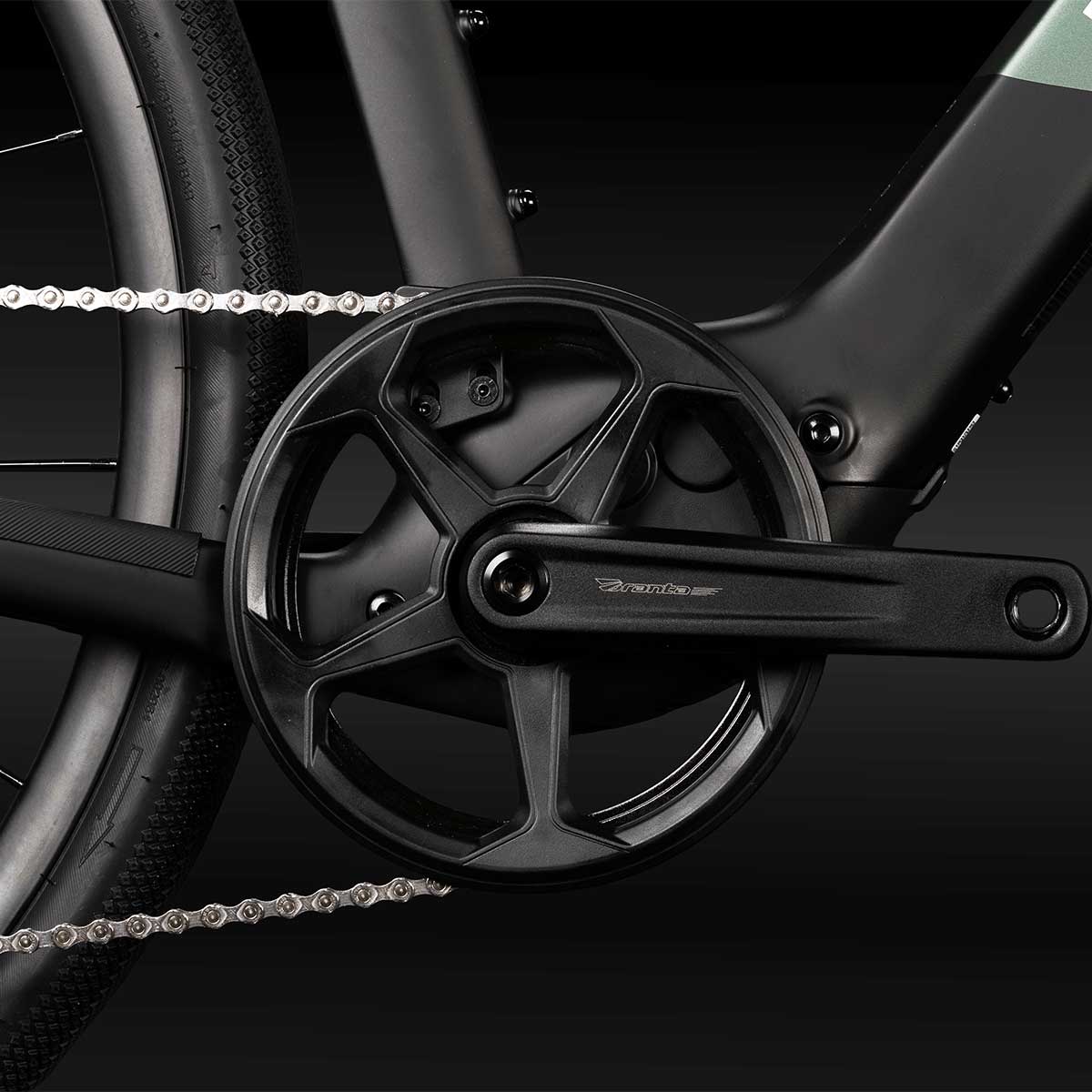

Branta Aluminum Crankset, 46T, Narrow-wide Teeth

Cassette

Shimano CS-LG300 11-46T, 9-Speed

Chain

KMC E-GLIDE-S

Tyre

Branta R240, 700x40C, 30TPI

Bike Wheelset

Branta Aluminum E-Bike Wheelset

Seat Post

XDS Aluminum Seatpost, Aero Shape

Saddle

Branta SRX+

Handlebar

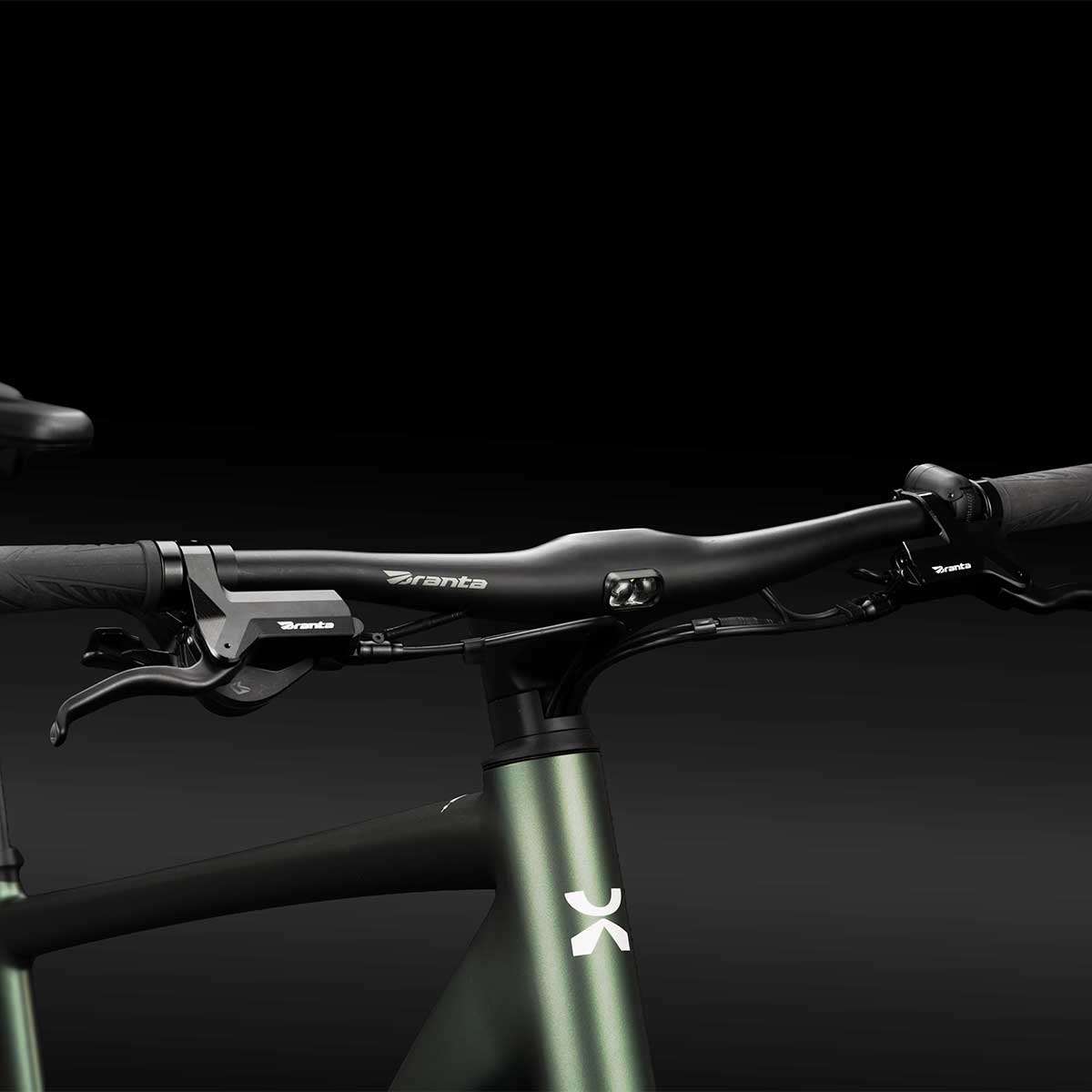

Branta Aluminum Integrated, w/ Monitor & Front Light, 680mm Width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep

Stem

Branta Aluminum Integrated, w/ Monitor & Front Light, 680mm Width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep

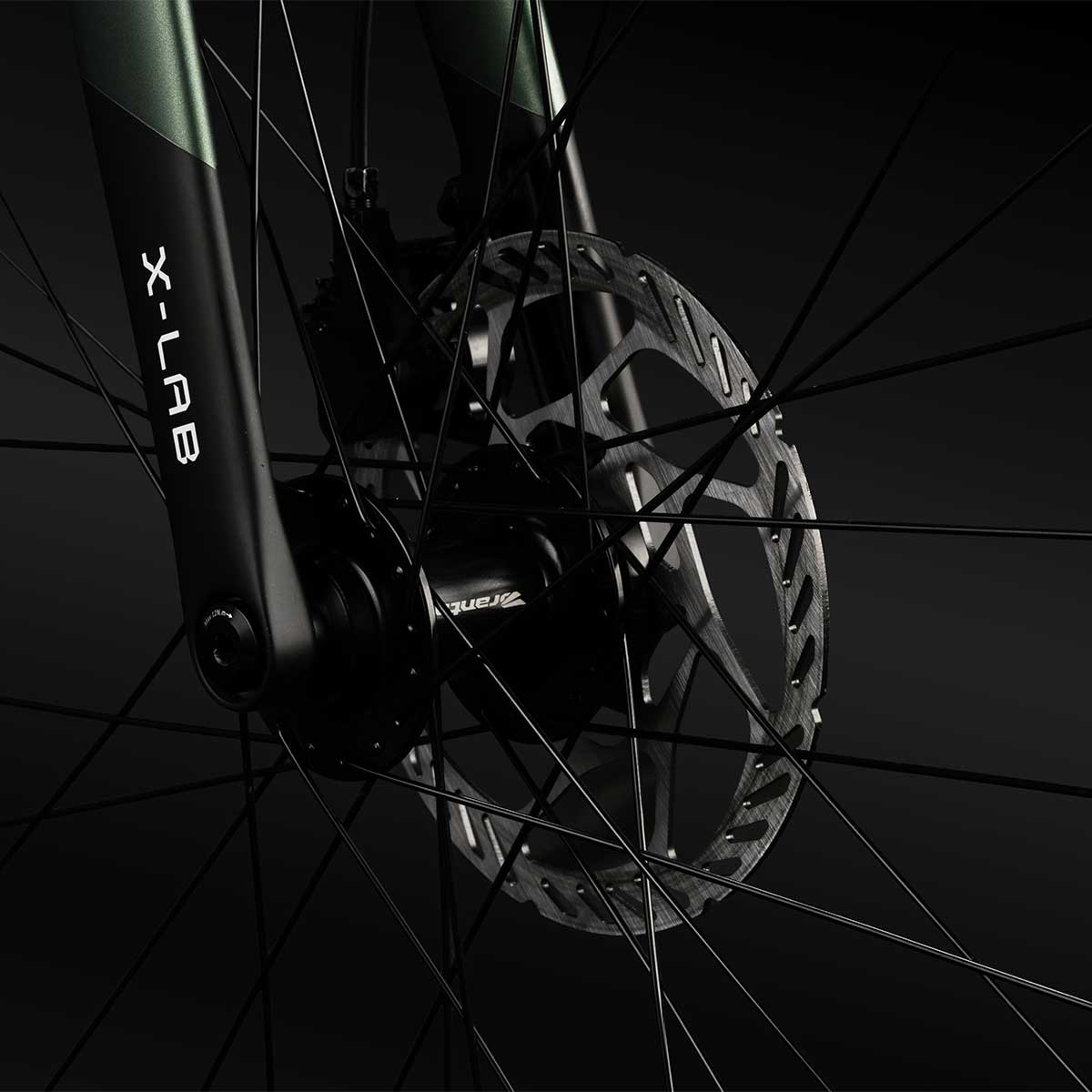

Bike Brakes

Branta EC215D E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever, 2 Pistons Caliper

Electric Motor

XDS Mid-drive X800 Motor, 250 Watt Maximum Continuous Rated Power, 400 Watt Peak Power, 85Nm Peak Torque - NSW OZC-260910-EA

Electric Battery

XDS Rechargeable Li-ion Battery, 339Wh - NSW OZC-260924-EA

*Continuous Product Improvement

Innovation never stands still. As part of our commitment to building the best possible bicycles, X-LAB reserves the right to update specifications, components, colors, and other product details at any time without notice. We make every effort to keep our published specifications current, but minor variations may occur between production batches. Please contact your local X-LAB dealer or Customer Support if you would like to confirm the latest specifications before purchase.

Geometry & Dimensions

FAQ

General
SP5+ is for the active rider who just needs that little extra push - to get there faster, to arrive with a little less sweat, or take the long way home. It’s a trimmed down, fitness-focused e-bike that’s designed to amplify your every move.
SP5+ has a weight limit of 265lbs (120kg), which includes the rider and any gear or cargo.
SP5+ is compatible with full length front and rear fenders. It’s also compatible with universal rear racks that mount to the rear dropouts and seat stays. To mount the rear fender and rack to the frame, the seat stay bridge adapter must be installed on the underside of the seat stays.
SP5+ ships as a Class 2 e-bike, meaning it has both throttle and pedal assist to 20mph. The e-bike can be updated to Class 3 options via the X-LAB Bikes mobile app. It is the rider’s responsibility to comply with all local laws and regulations related to e-bikes.
Yes, the battery on SP5+ is designed to be safe and reliable. In addition to using Tier-1 battery cells from LG, the battery and complete e-bike system are tested and certified to UL 2271 and UL 2849.
Any local bike shop will be able to provide general service for your SP5+. For any maintenance of the e-system or warranty issues we recommend going to an X-LAB dealer to receive the best expert guidance and support.
Technical
SP5+ has clearance for up to 45c tires.
SP5+ uses a custom-designed integrated cockpit. There are three different cockpits for ST5+, SP5+, and SL5+. These are all cross compatible with all X-LAB e-bikes and can be purchased separately if a different ride position is desired.
SP5+ uses a standard ISIS spline interface for the crank arms, making it compatible with a wide range of aftermarket crank options.
The motor and battery on SP5+ are developed and manufactured in-house by X-LAB. The battery cells are sourced from LG.
Yes. The throttle controller can be removed if you prefer a cleaner cockpit setup or want to ride without throttle functionality. Please contact your local X-LAB dealer for assistance with removal and configuration.
Yes. The throttle controller can be removed if you prefer a cleaner cockpit setup or want to ride without throttle functionality. Please contact your local X-LAB dealer for assistance with removal and configuration.
To minimize weight and complexity of the overall e-bike, the battery on SP5+ is designed to be removed only by an X-LAB mechanic.
The rims and tires on SP5+ are not tubeless compatible.
