SKU: XLRD-RS7WT-XS

RS7 105

$2,999.00 RRP

This bike will CHANGE the bicycle industry!" - GC Performance
Carbon endurance performance with a modern road baseline
Versatile race disruptor built to win the spec sheet
Highly reliable Shimano 105 Groupset

Colour

Angel Wing White

Frame Size

XS S M L XL

RS7 105

$2,999.00

Angel Wing White

Select Size

Choose Options

Online Ordering coming soon

Not sure what size you should ride? Visit one of our retailers in your area.

Find a Retailer

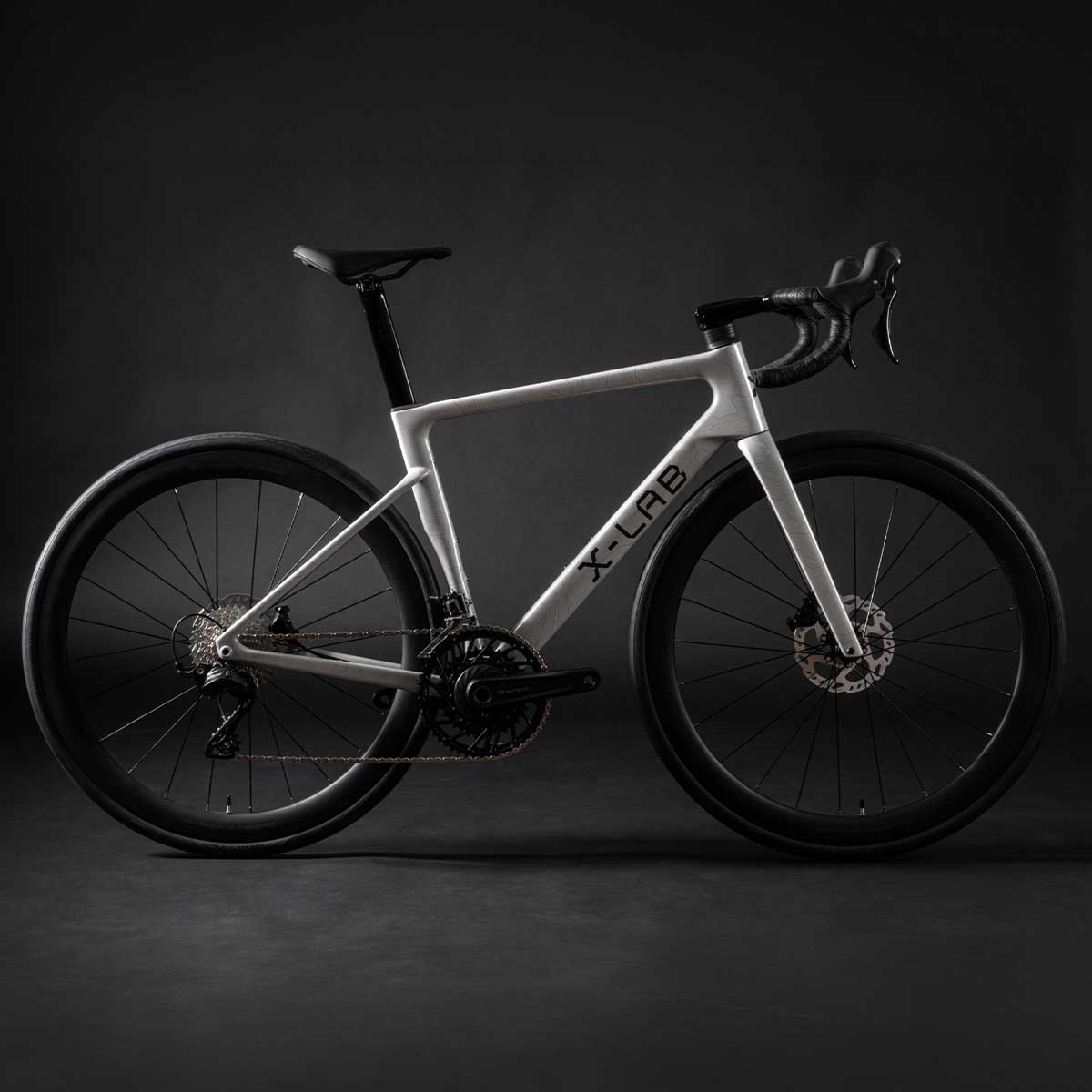

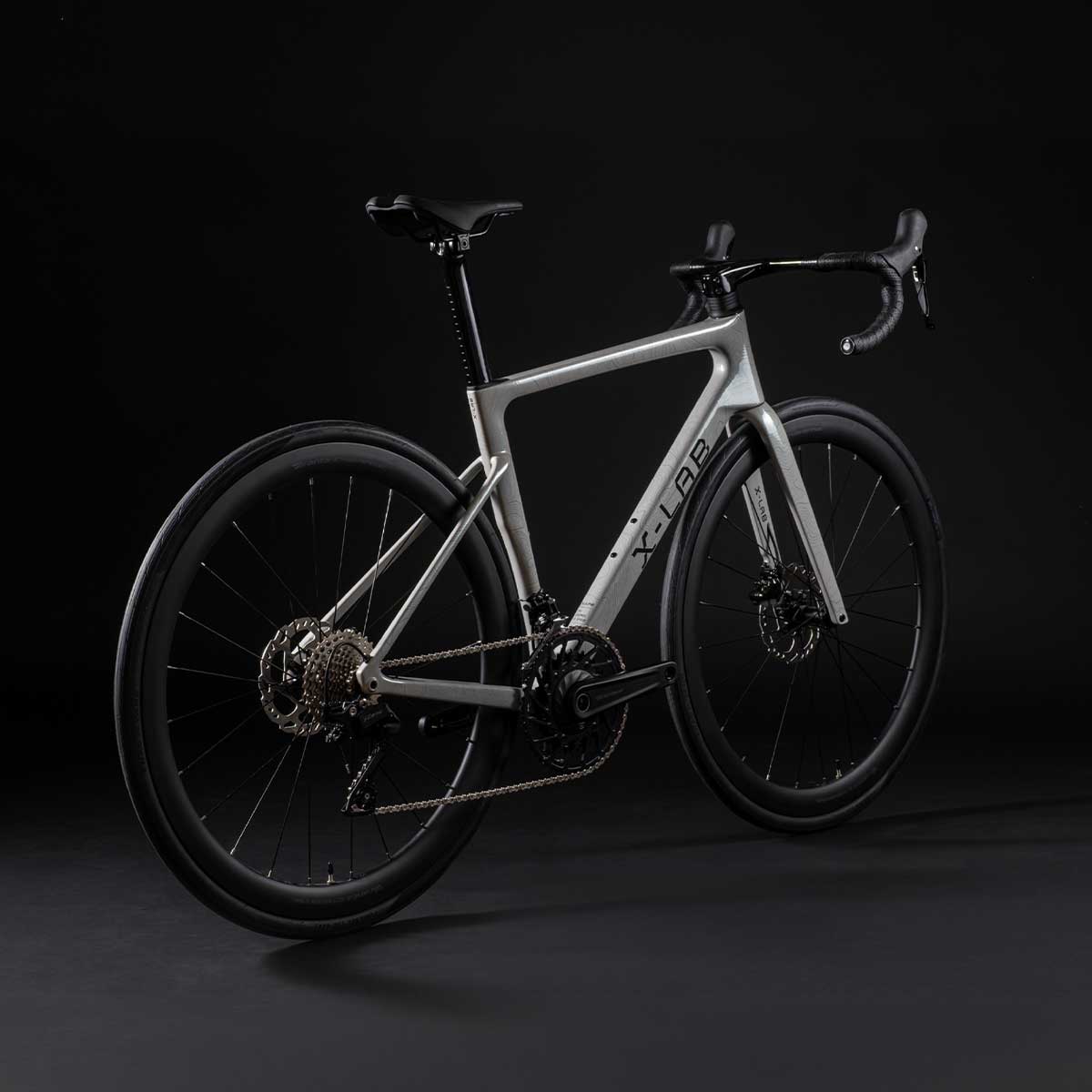

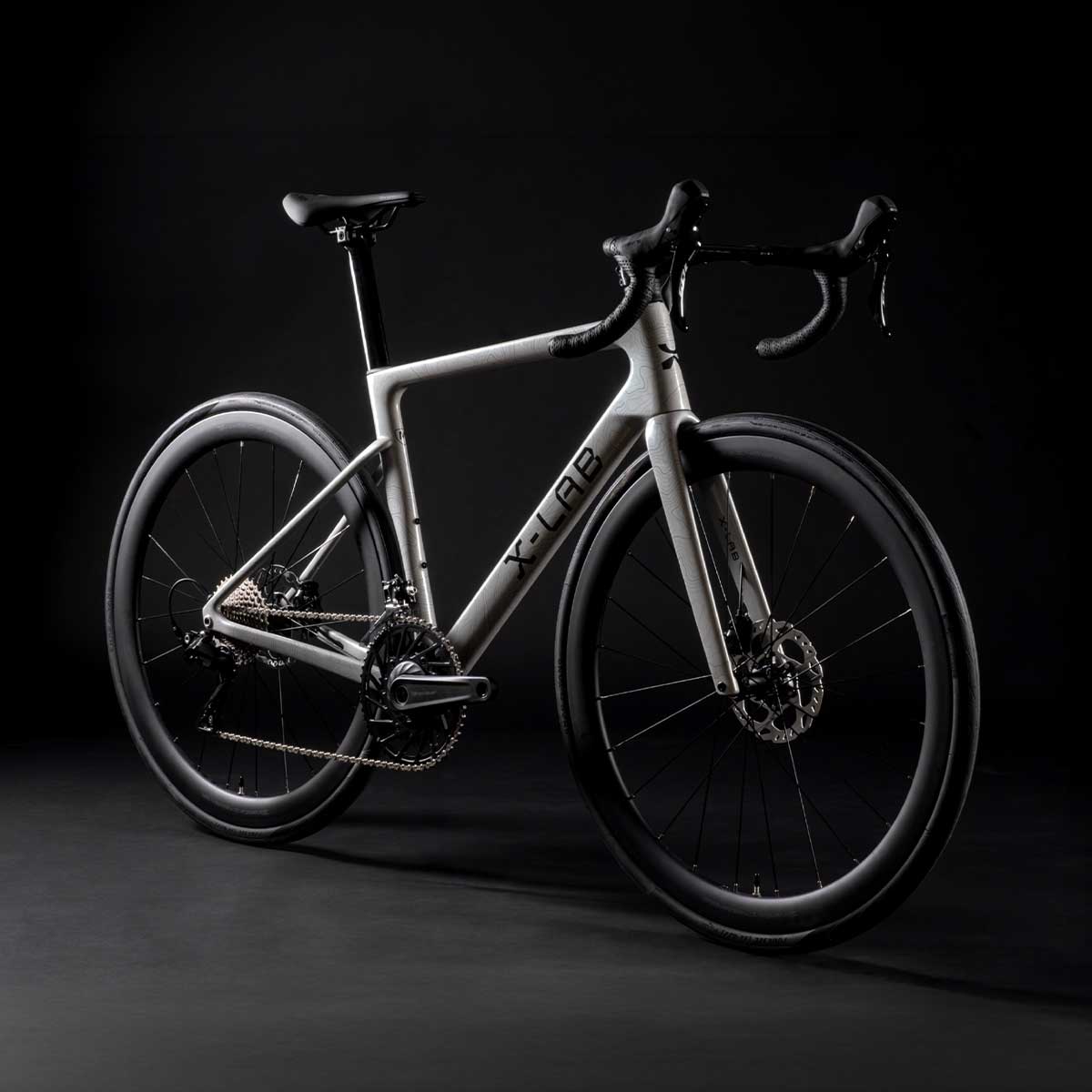

X-LAB RS7

The RS7 blends aerodynamic efficiency with everyday rideability.

Its performance-oriented geometry and refined carbon construction deliver speed when you push, while maintaining the comfort and stability needed for longer rides.

Equally at home on weekend training routes or daily commutes, the RS7 offers a balanced performance platform that riders return to again and again.

Carbon Confidence, Every Day

The RS7 is the road bike that makes true performance feel approachable for all riders, boasting full carbon responsiveness, drop-bar control, and a geometry that’s ready for everything from country roads to your fastest group ride.

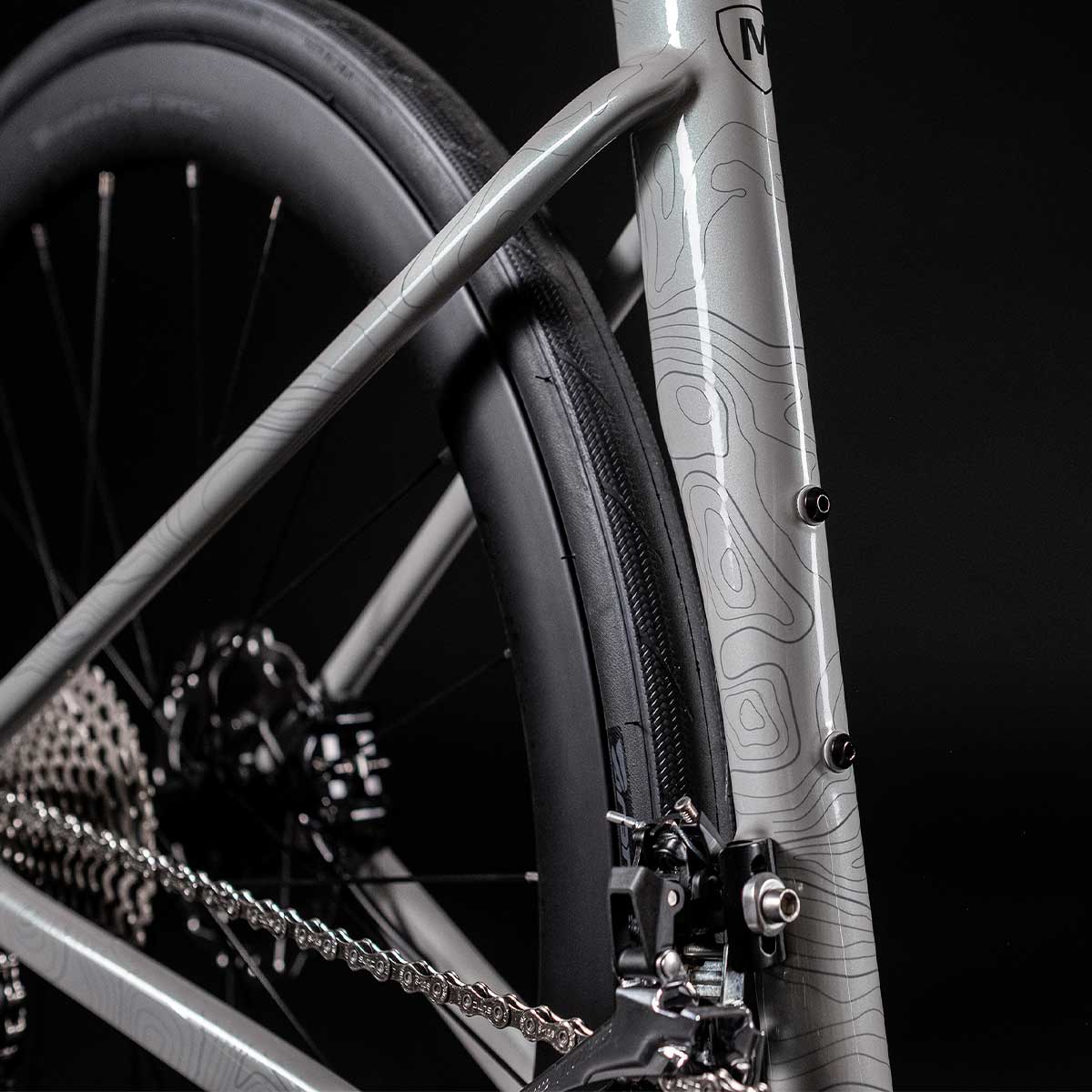

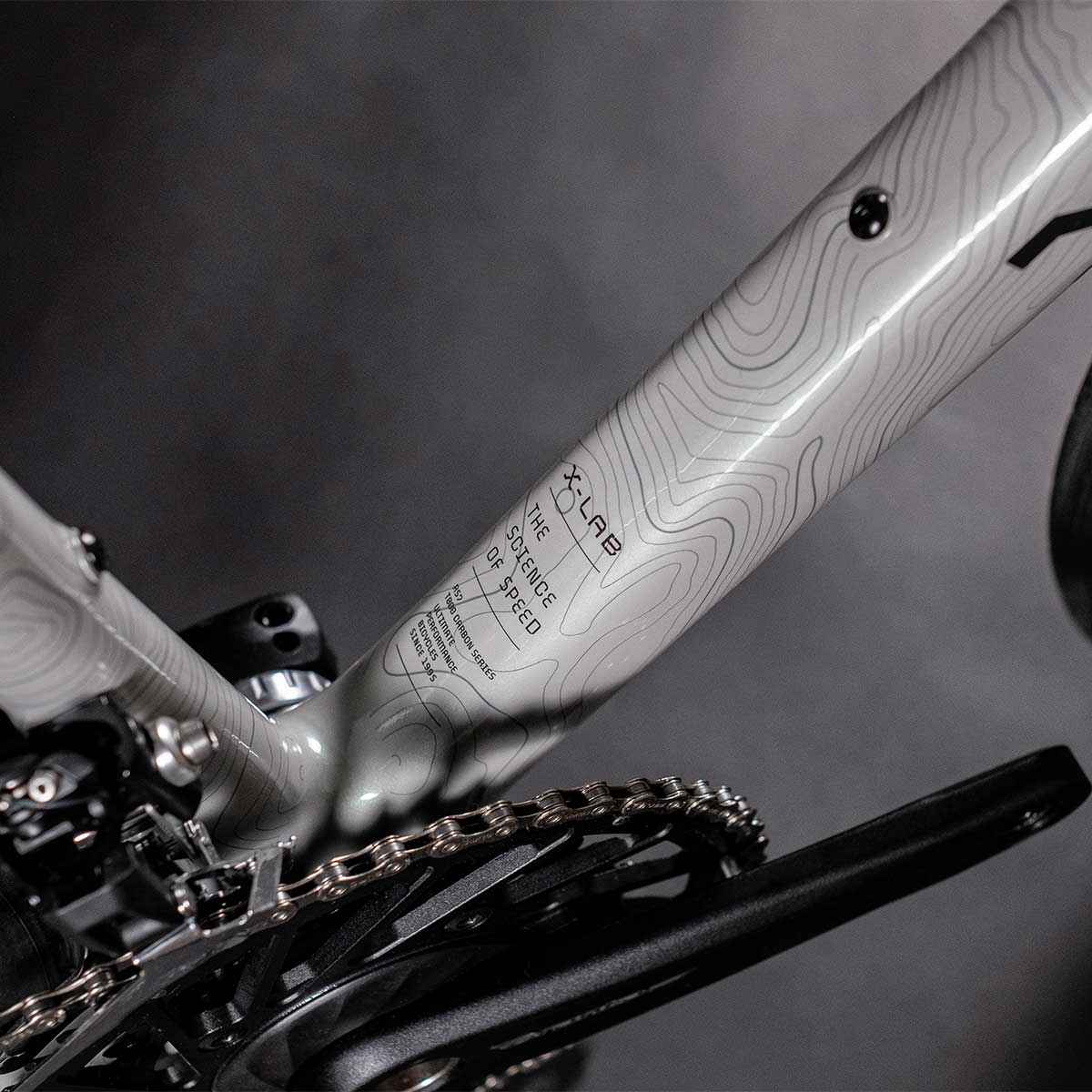

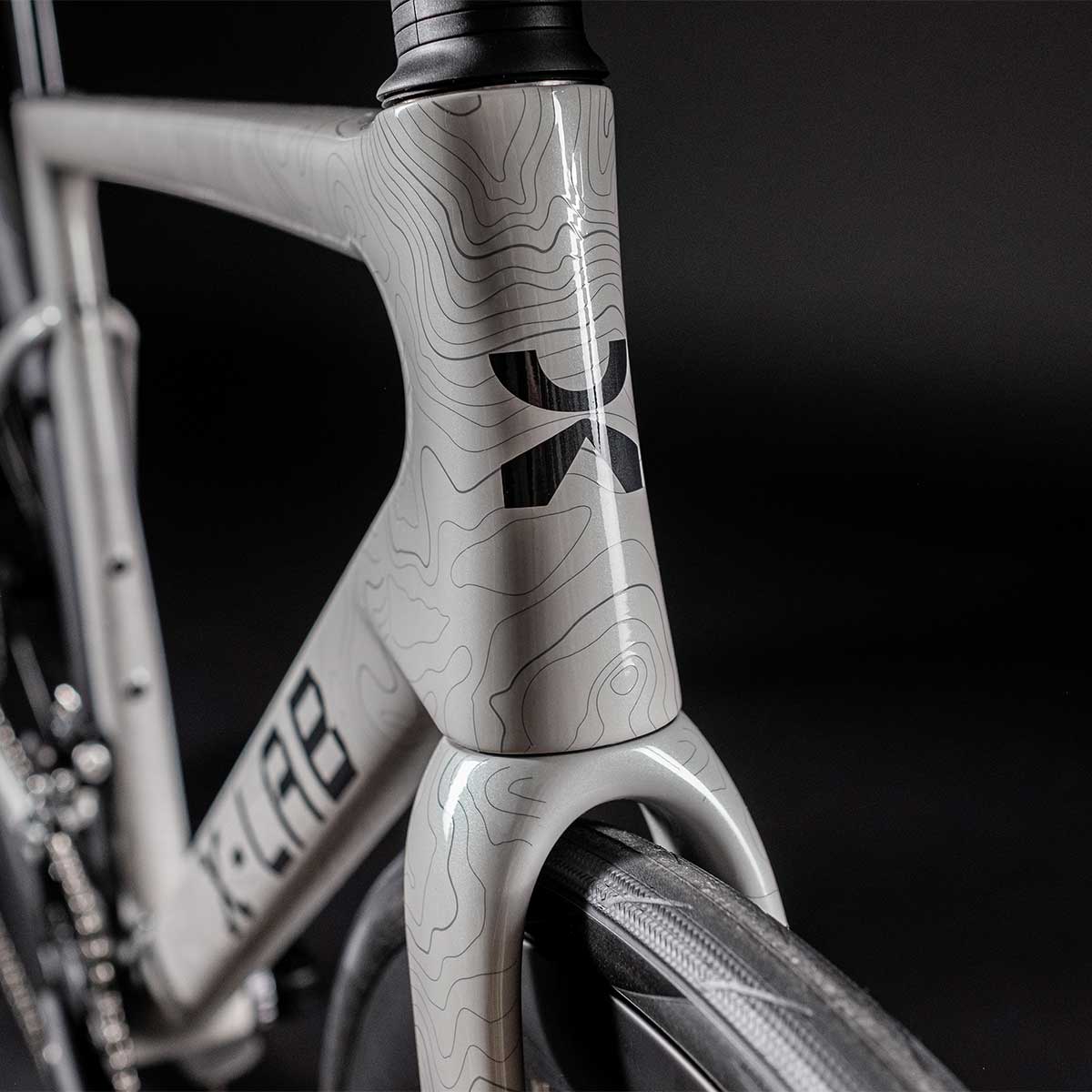

Topography-Inspired Colorways

Inspired by the contours of iconic mountain terrains, RS7’s finishes aren’t just paint; they’re a nod to the roads that shape riders and the climbs that define seasons.

Making Upgrades Simply Standard

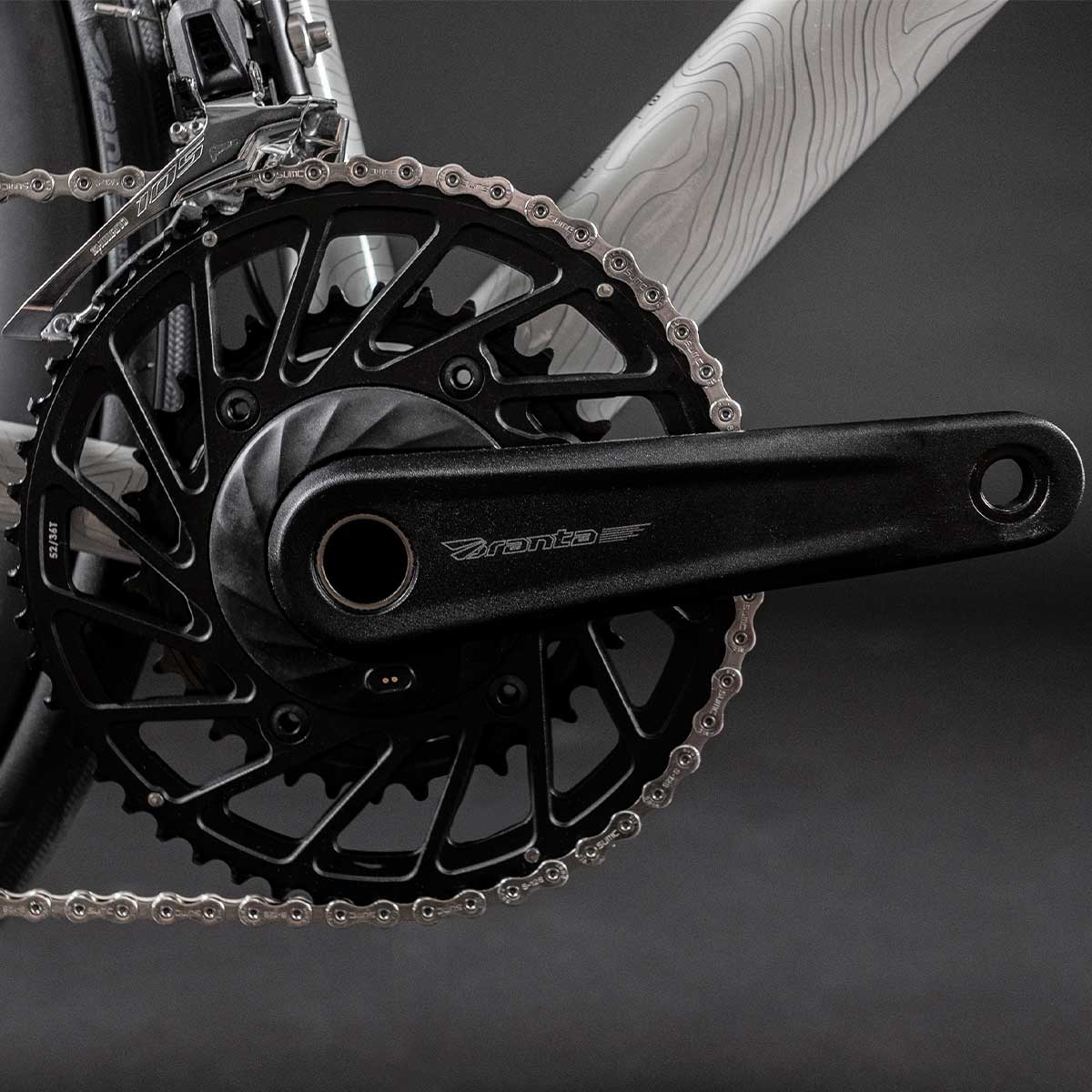

With a Branta alloy crankset featuring a built-in power meter and Find My connectivity, RS7 delivers the upgrades riders usually pay extra for, all baked in from day one.

The Branta Advantage is Exclusive to X-LAB

See Our In-House Components

Highlights

Key Features

Branta C45 Base carbon wheelset

Shimano 105 Mechanical groupset

Aero carbon seatpost

Full carbon frame and fork | Full bike 8.49 kg

Technical Specifications

Frame

XDS T700 Carbon Frame

Fork

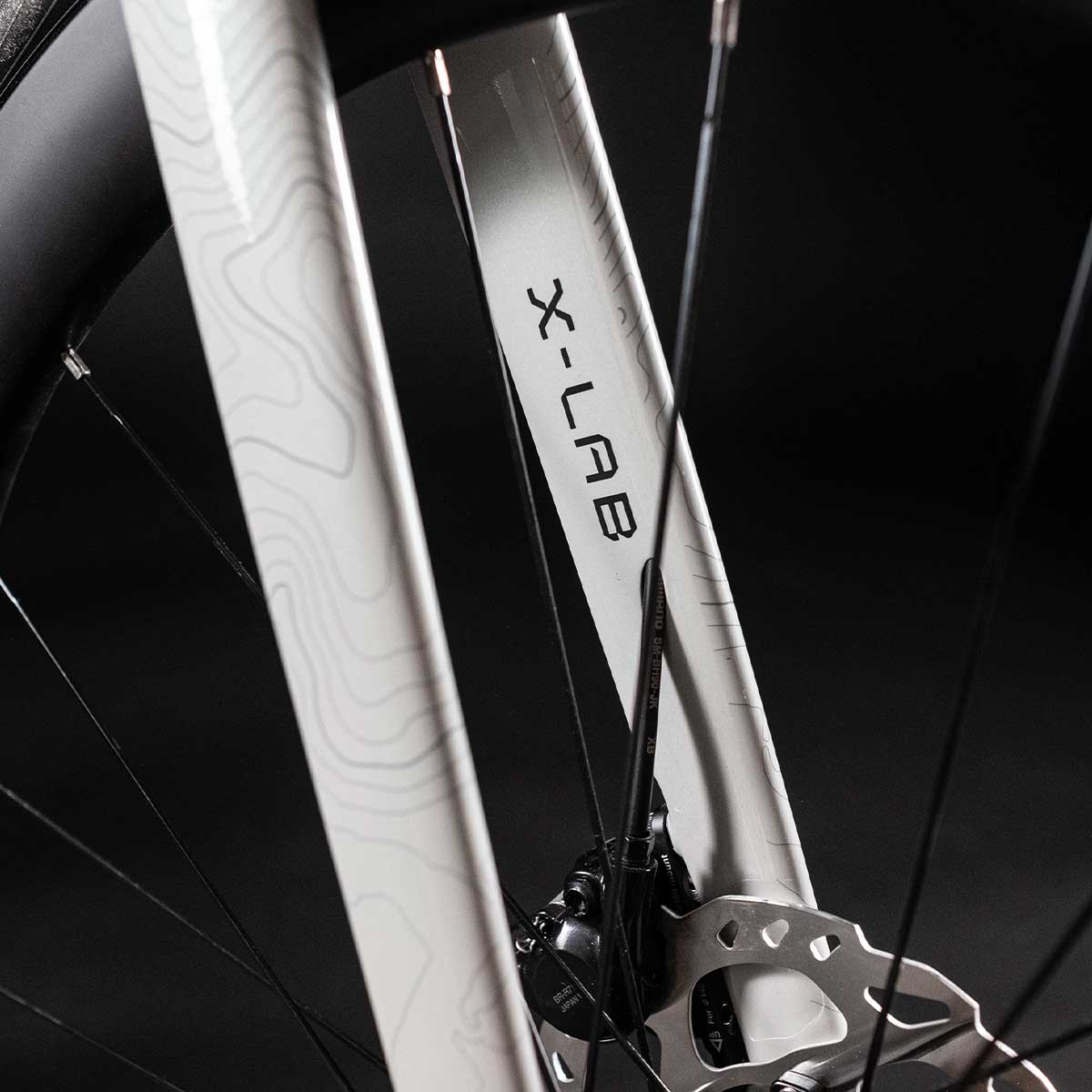

XDS Carbon Fork, 100x12mm Thru-axle

Gear Shifter

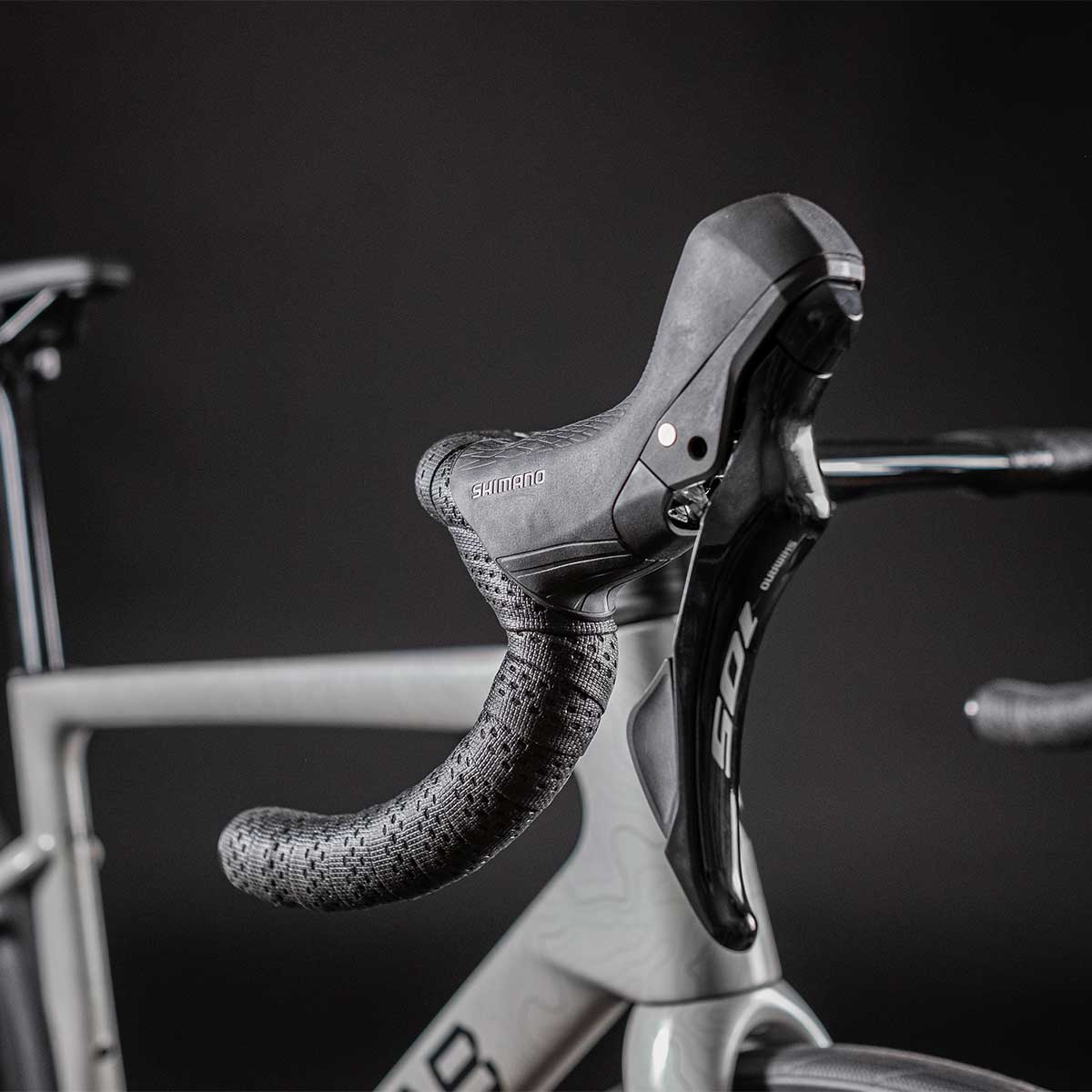

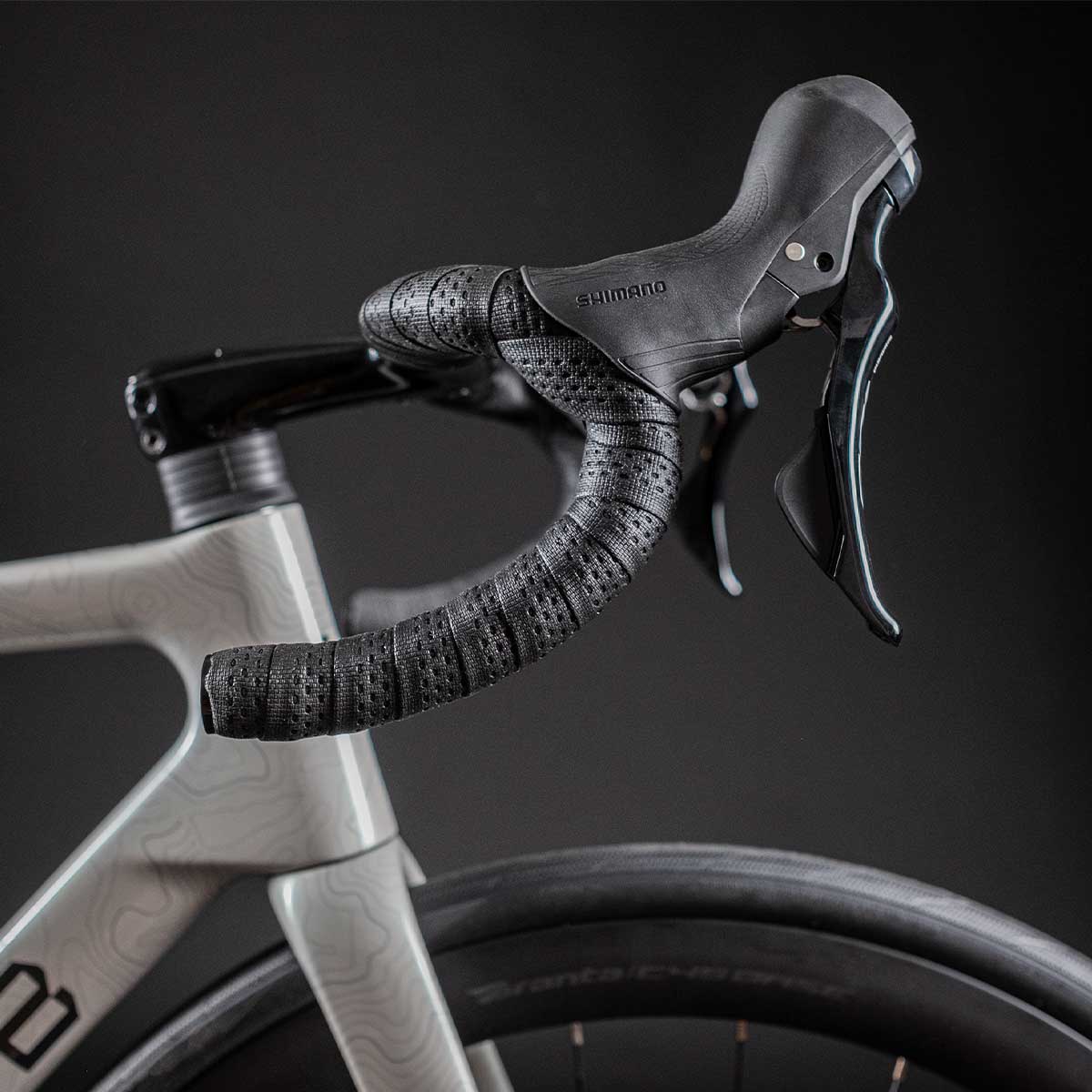

Shimano 105 ST-R7120

Front Derailleur

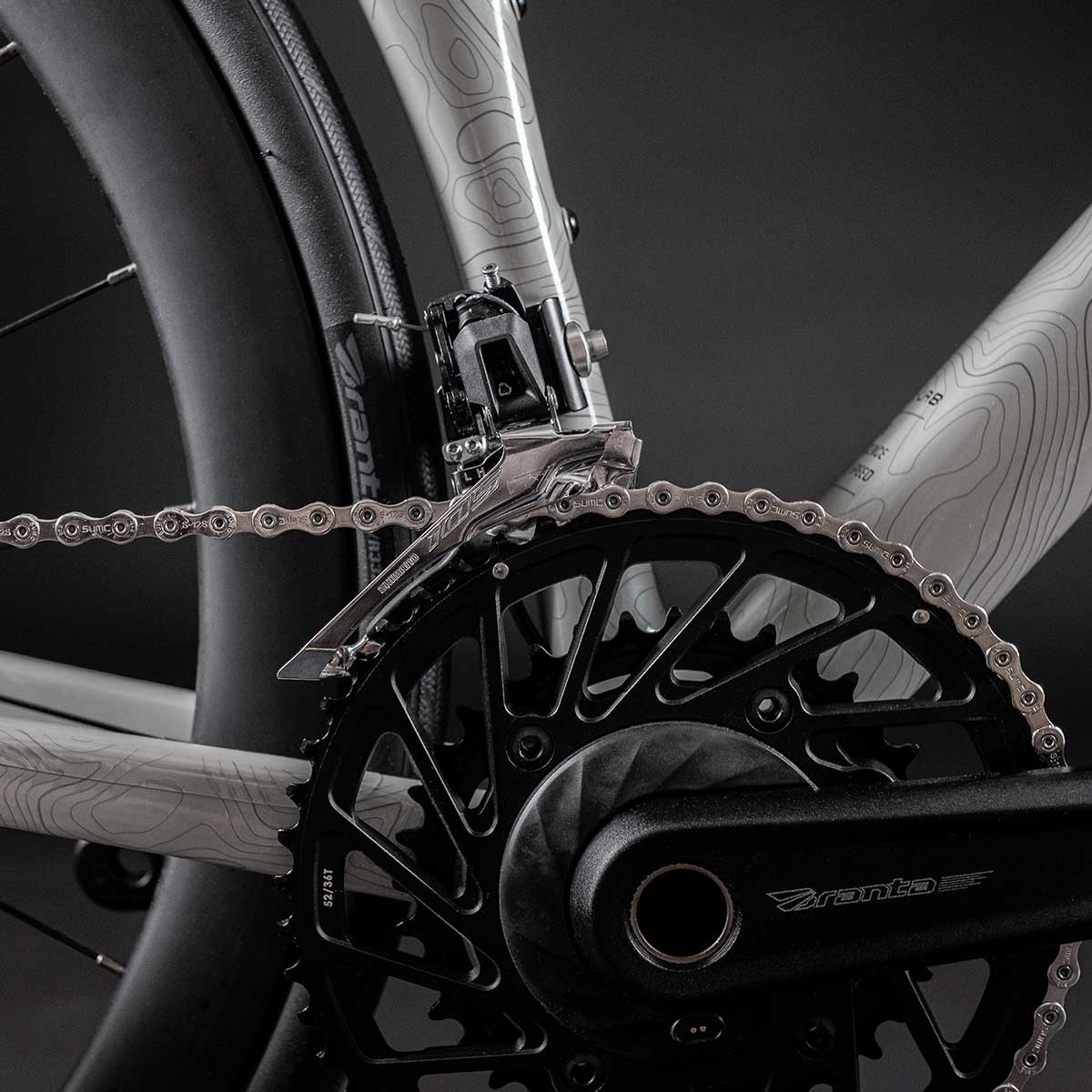

Shimano 105 FD-R7100

Rear Derailleur

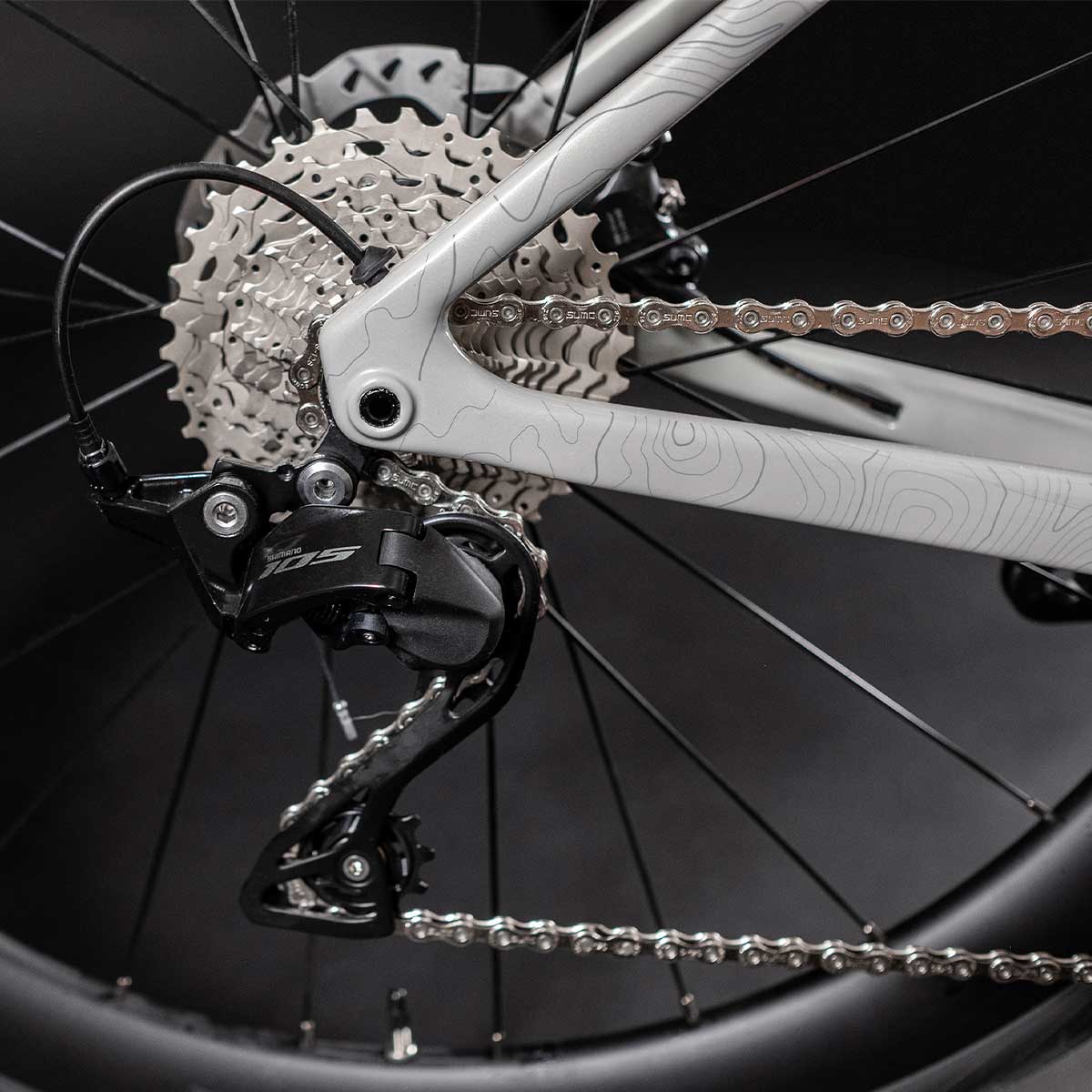

Shimano 105 RD-R7100

Crankset

Branta Alloy Powermeter Crankset, 52-36T, 24mm Steel Spindle

Cassette

CS-R9012, 12-Speed, 11-34T

Chain

SUMC SX12

Bottom Bracket

BSA 24mm

Tyre

Branta R332, 700x32C, 60TPI

Bike Wheelset

Branta C45 Base, Steel Spokes

Seat Post

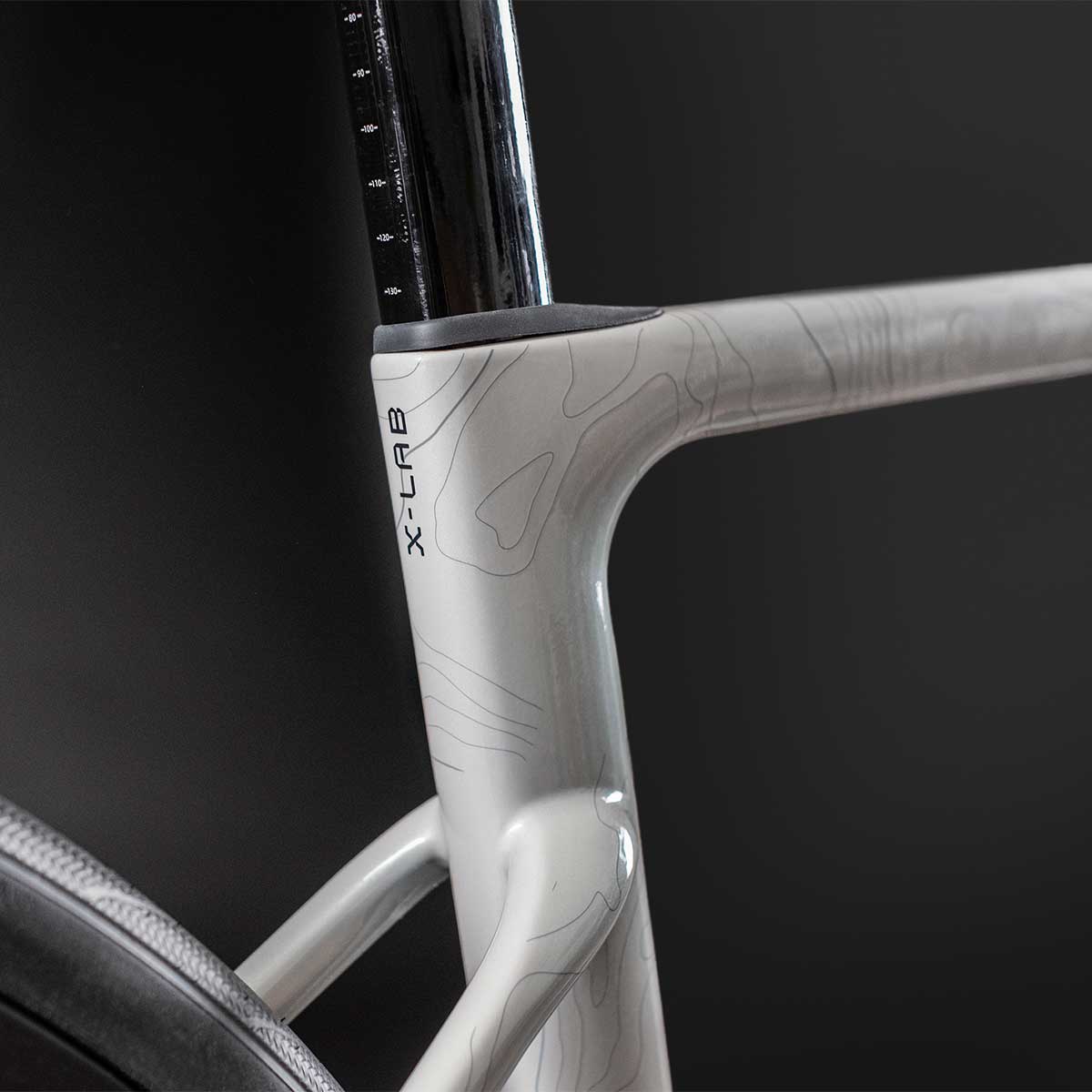

XDS Carbon Seatpost, Aero Shape

Saddle

Branta R302, Steel Rails

Handlebar

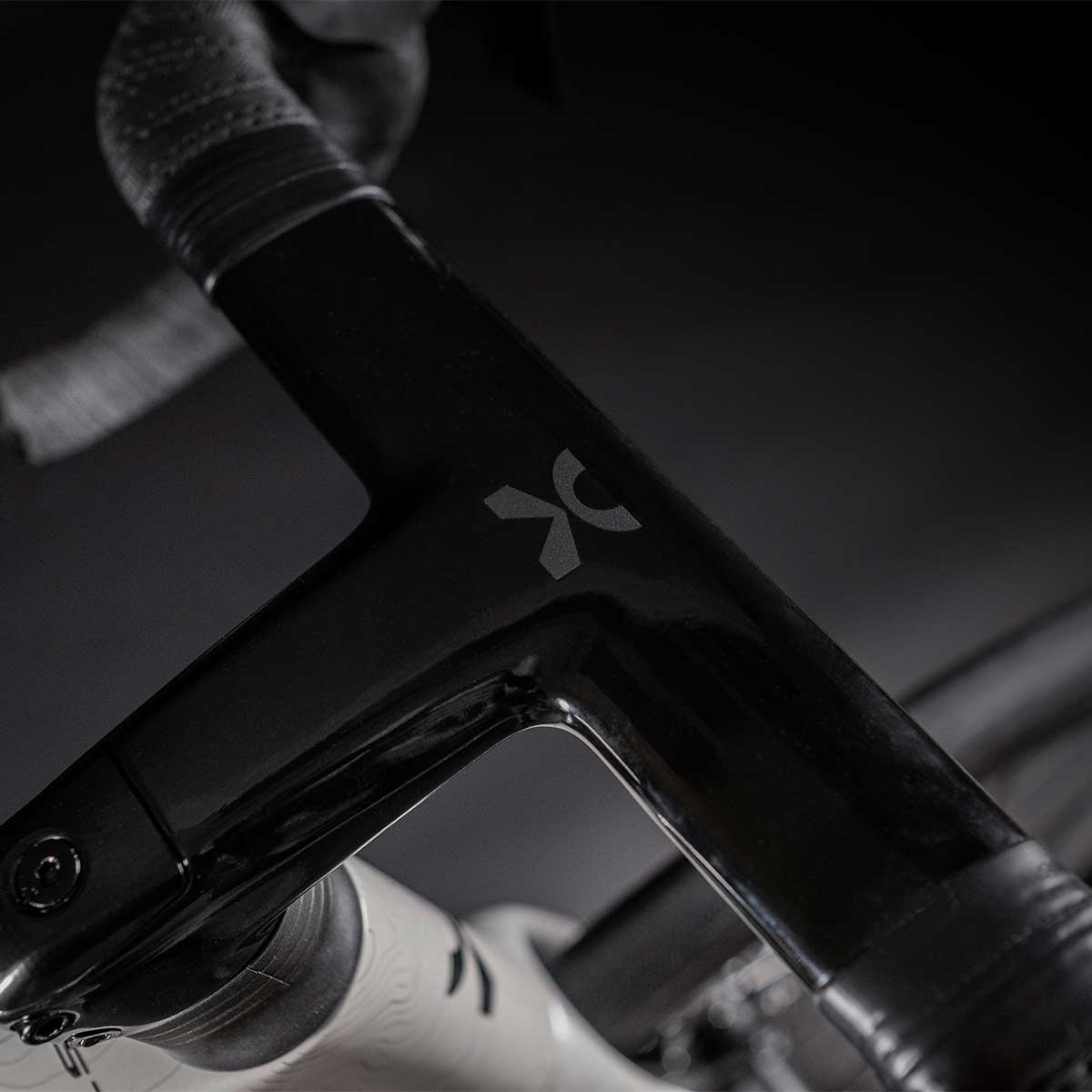

Branta Carbon Integrated

Stem

Branta Carbon Integrated

Front Brake

Shimano 105 BR-R7170

Rear Brake

Shimano 105 BR-R7170

*Continuous Product Improvement

Innovation never stands still. As part of our commitment to building the best possible bicycles, X-LAB reserves the right to update specifications, components, colors, and other product details at any time without notice. We make every effort to keep our published specifications current, but minor variations may occur between production batches. Please contact your local X-LAB dealer or Customer Support if you would like to confirm the latest specifications before purchase.

Geometry & Dimensions

FAQ

General

What rider type is the RS7 designed for?

RS7 is designed for the rider that’s looking for a true performance carbon road bike at a budget-friendly price. RS7 is a great upgrade option for any rider or is a fantastic first bike for someone athletic that’s looking to get into cycling.

Is the bike easy to assemble out of the box?

Yes, RS7 is easy to assemble. You can refer to the written assembly guide or our assembly video to help guide you through the process. If you are unsure about assembly, we recommend professional assembly through your local bike shop.

What’s the weight limit for the bike?

RS7 has a weight limit of 242lbs (110kg), which includes the rider and any gear or cargo.

Is this bike compatible with fenders and a rear rack?

RS7 is not designed to be compatible with fenders or racks.

Where can my bike be serviced and repaired?

Any local bike shop will be able to provide general service for your RS7. For any component customization or warranty issues we recommend going to an X-LAB dealer to receive the best expert guidance and support.

Technical

What is the maximum tire clearance?

RS7 has clearance for up to 32c tires.

Can the integrated power meter connect to third-party bike computers?

Yes, the integrated power meter can connect to most major bike computers and fitness devices via ANT+. This allows live power data to be shared directly to your device. Live power data can also be shared via Bluetooth to the X-LAB Bikes app on your mobile device. At this time, live data can’t be shared to third party mobile apps via Bluetooth.

Is the frame compatible with SRAM groupsets?

Yes, the RS7 frame is compatible with most wired, wireless, or mechanical groupsets from all major drivetrain brands. RS7 is not compatible with full mount rear derailleurs.

Does it use a UDH (Universal Derailleur Hanger)?

RS7 currently does not use a universal derailleur hanger. The RS7 derailleur hanger is available directly from X-LAB, or through your local X-LAB dealer.

Is the aero cockpit compatible with standard bike computer mounts?

Yes, the aero cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts. A basic bike computer mounting kit is also provided with the bike.

Are electronic shifting options available?

RS7 comes standard with a mechanical drivetrain. Customers have the option to upgrade to electronic shifting after purchasing the bike, or look at other bike options from the X-LAB lineup.

What is the maximum chainring size supported?

RS7 can fit up to 52-36T Shimano or 56-43T SRAM 2x front chainrings, or a 66T 1x front chainring.

Are other cockpit size options available to purchase?

Yes, X-LAB has 18 different size options for the integrated aero cockpit on RS7.

Are other crank length options available to purchase?

Yes, X-LAB offers numerous crank length options for the Branta alloy power meter crankset.

Are other chainring options available?

Yes, X-LAB offers both compact (50-34T) and race (54-40T) front chainring options, in addition to the standard (52-36T) front chainrings that come stock on the bike. The X-LAB chainrings have a standard 110 BCD bolt pattern but feature a unique shape to integrate with the integrated power meter.

Does the power meter measure left, right, or both sides?

The Branta power meter crank is dual-sided, meaning it measures power from both left and right legs separately.

Is the wheelset tubeless ready?

The rims on RS7 are tubeless compatible but the tires are not tubeless compatible.
