SKU: XDMT-MT5GB-M
MT5 Carbon
$1,999.00 RRP
- Full Carbon Frame + Carbon Integrated Cockpit
- Carbon Seatpost
- Branta Magnesium 110/120mm-travel suspension fork, rebound adjustable
- Branta C5Pro 2-piston hydraulic disc brakes
- Branta 29" XC+ wheels with CST Serratus 2.25" tyres
- Shimano Deore 1x12 drivetrain
Not sure what size you should ride? Visit one of our retailers in your area.
Find a Retailer

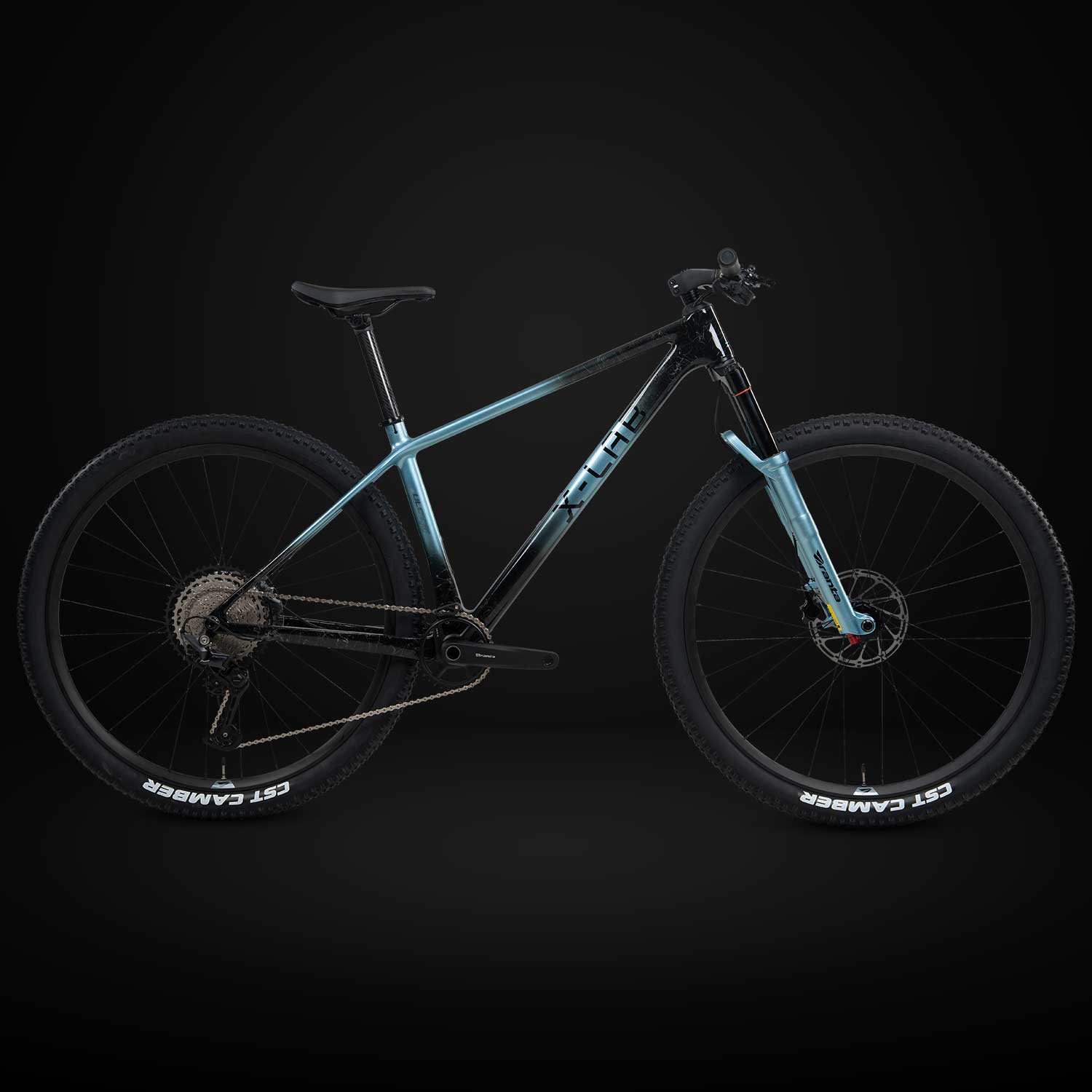

X-LAB MT5
The X-LAB MT5 is the flagship of the MT range - a performance-focused carbon hardtail built to be fast, responsive and ready for the trails. Its lightweight carbon frame is paired with an integrated carbon cockpit, carbon seatpost and adjustable air suspension for a refined, direct ride.
Flagship Carbon Performance, Built for XC Speed
Its ultra-lightweight carbon frame is paired with an integrated carbon cockpit, carbon seatpost and adjustable air suspension for a responsive, refined ride that feels fast on climbs and confident on the trails.
Item added to cart
Highlights
Key Features
Full Carbon Frame + Carbon Integrated Cockpit

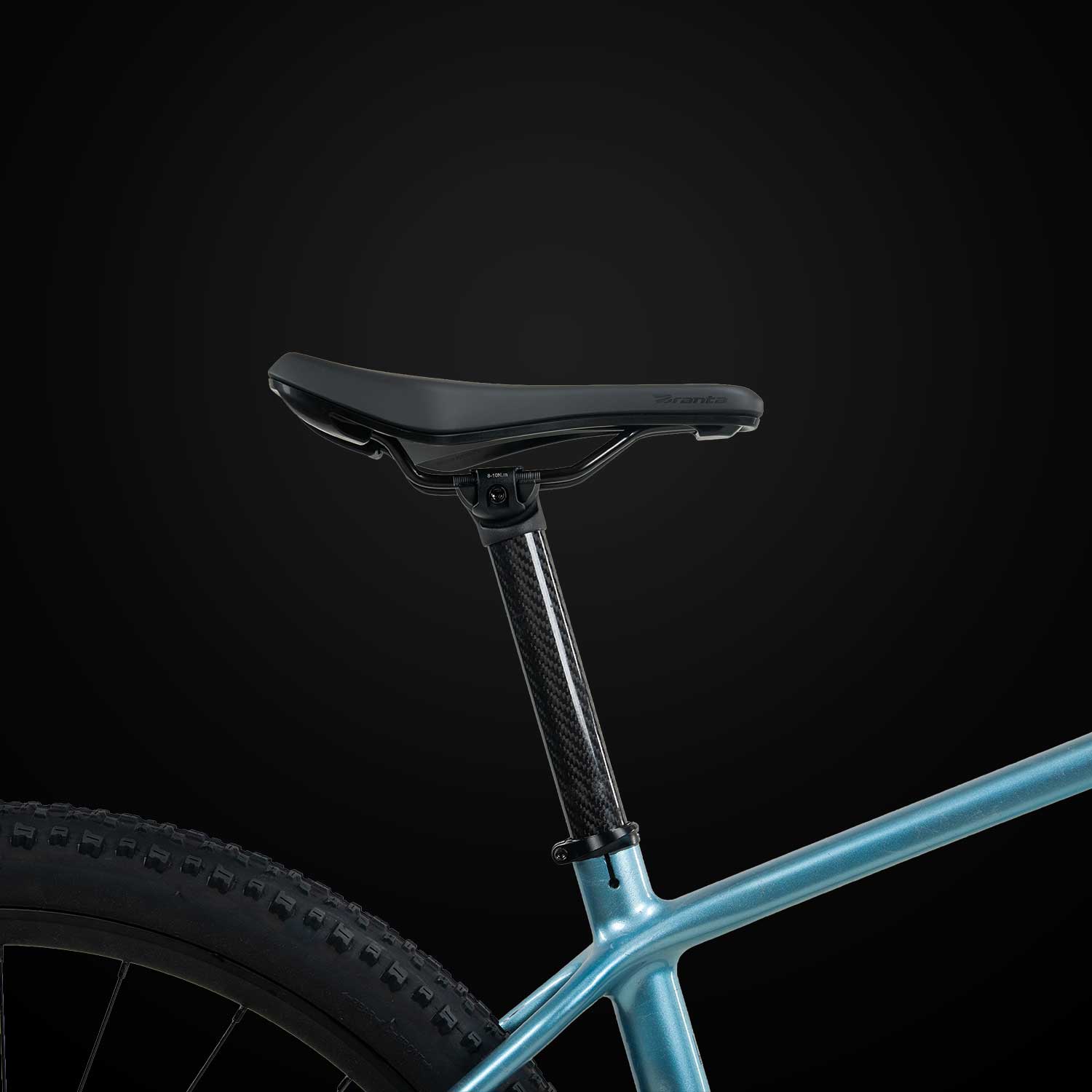

Carbon Seatpost
Branta Magnesium 110/120mm-travel suspension fork, rebound adjustable

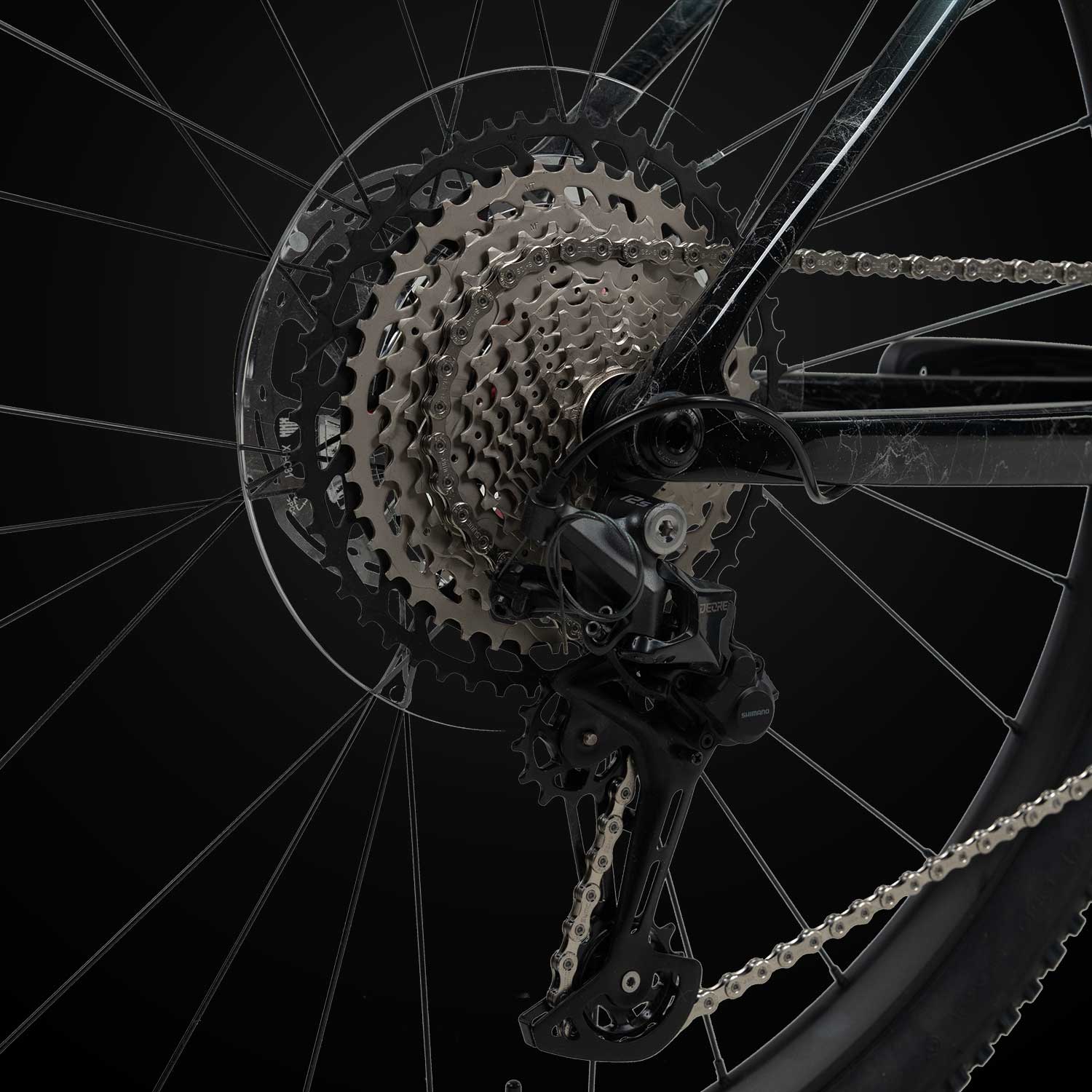

Shimano Deore 1x12 drivetrain
Branta C5Pro 2-piston hydraulic disc brakes
Branta 29" XC+ wheels with CST Serratus 2.25" tyres
Technical Specifications
Frame
XDS Carbon Frame
Fork
Branta Magnesium Suspension Fork, Air Spring, Rebound/Preload Adjustable, 110mm Travel for 27.5''/ 120mm Travel for 29''
Gear Shifter
Shimano Deore SW-M6200-R
Rear Derailleur
Shimano Deore RD-M6200-SGS, 12-Speed
Crankset
Branta Aluminum Crankset, 170mm Length, 34T, Narrow-wide teeth
Cassette
CS-M9012, 11-50T
Chain
SUMC
Bottom Bracket
BSA 24mm
Rim
Branta Aluminum XC+ Wheelset
Tyre
CST SERRATUS 29x2.25, 30TPI
Saddle
Branta SRX+, BED Rails
Handlebar
Branta Carbon Integrated, 760mm Width, 65/75/85mm Length
Stem
Branta Carbon Integrated, 760mm Width, 65/75/85mm Length
Front Brake
IIIPRO C5Pro Hydraulic Brakes, 2 Pistons Caliper
Rear Brake
IIIPRO C5Pro Hydraulic Brakes, 2 Pistons Caliper
*Continuous Product Improvement
Innovation never stands still. As part of our commitment to building the best possible bicycles, X-LAB reserves the right to update specifications, components, colors, and other product details at any time without notice. We make every effort to keep our published specifications current, but minor variations may occur between production batches. Please contact your local X-LAB dealer or Customer Support if you would like to confirm the latest specifications before purchase.
