SKU: XLRD-AD9AST-XS

AD9 DA Di2

$10,999.00 RRP

Raced by the XDS Astana Team in the UCI WorldTour
Dominating wind tunnel results at Silverstone
Highest performing commercial grade carbon fibre
Branta C50 ULR 50mm 1230g Carbon Wheelset

Colour

ASTANA Team Replica

Frame Size

XS S M L XL

AD9 DA Di2

$10,999.00

ASTANA Team Replica

Select Size

Choose Options

Online Ordering coming soon

Not sure what size you should ride? Visit one of our retailers in your area.

Find a Retailer

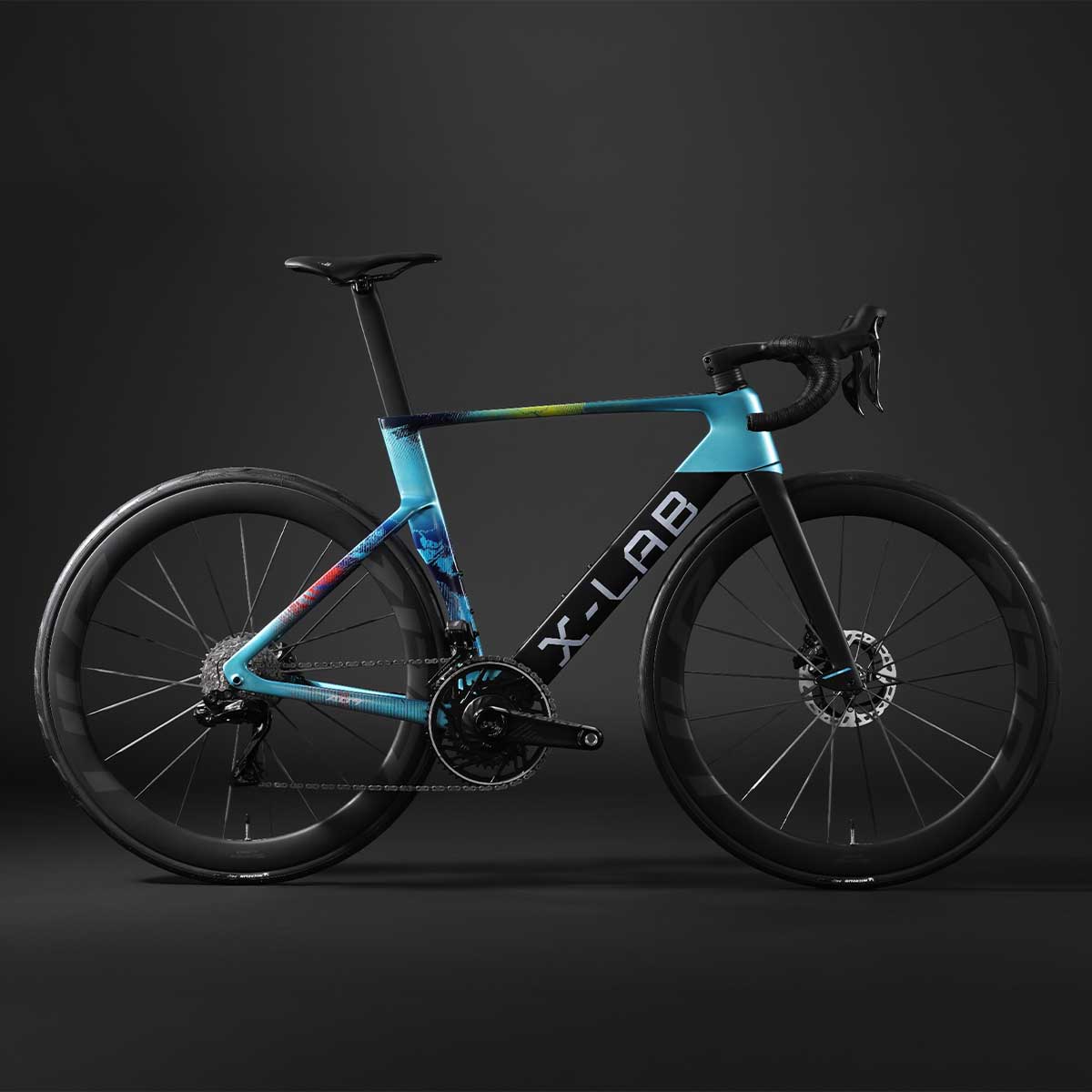

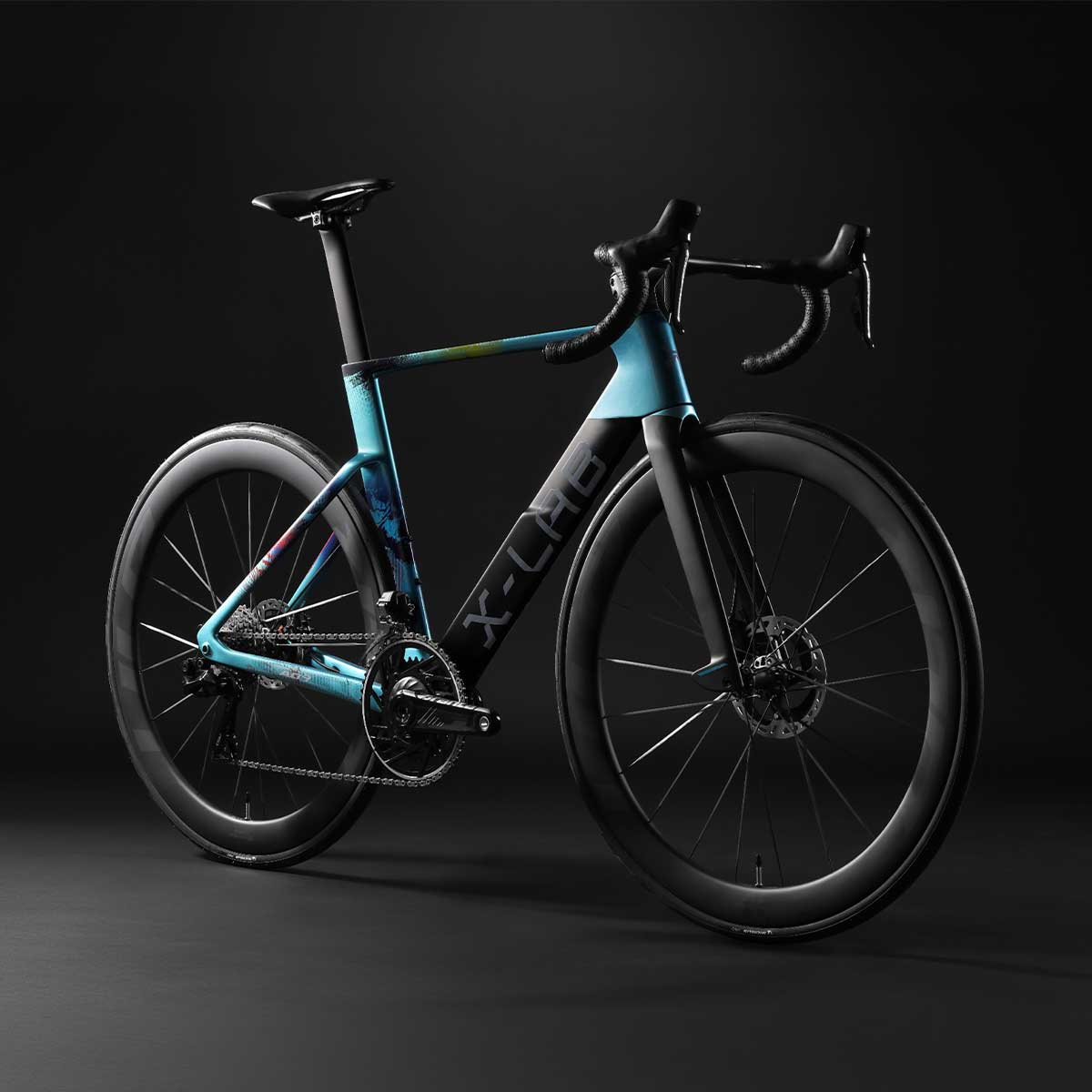

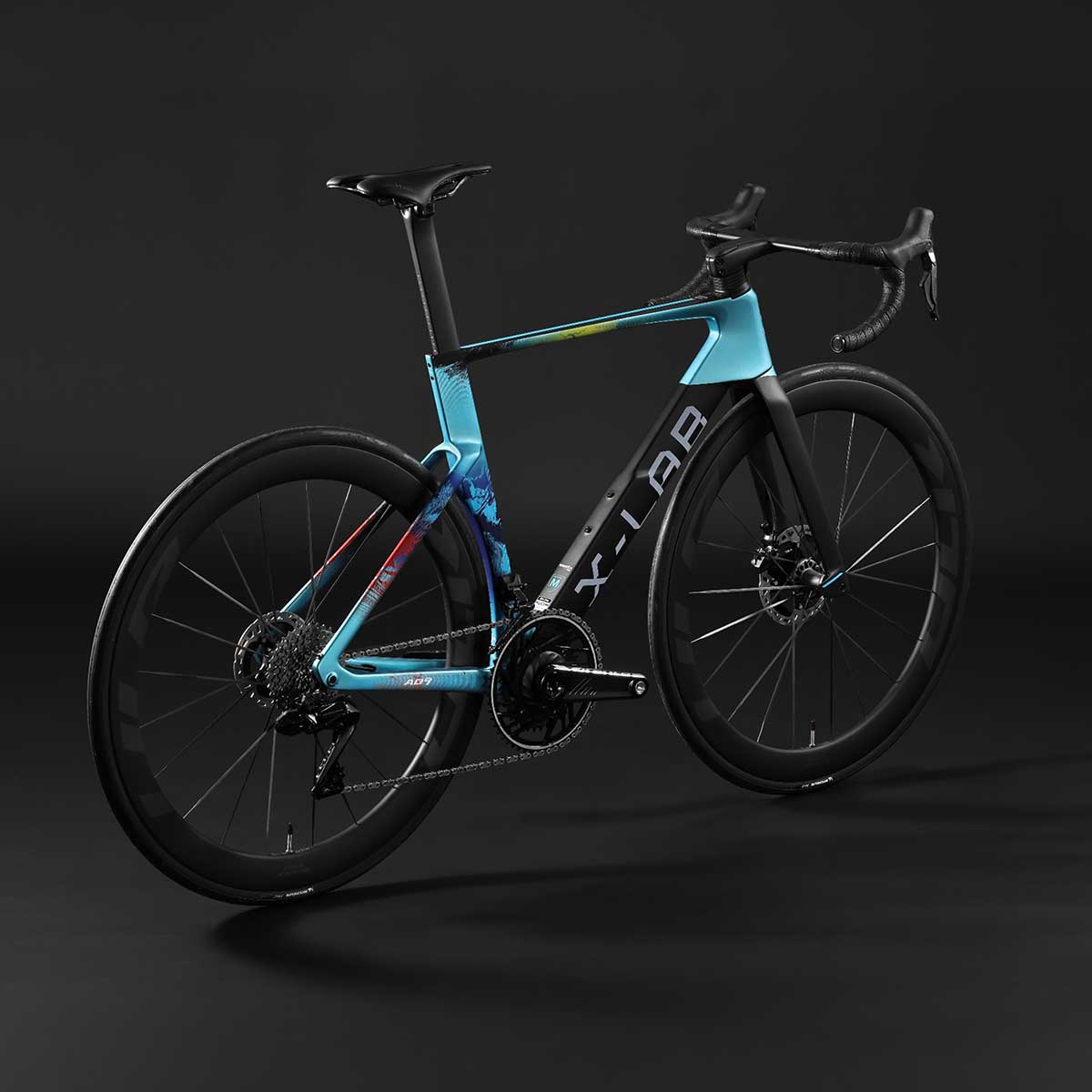

X-LAB AD9

The AD9 represents the pinnacle of X-LAB engineering. Designed in the wind tunnel and proven at the highest level of professional cycling, it is the official race machine of the XDS Astana WorldTour Team.

Every tube profile, surface transition, and structural element has been refined to minimize drag and maximize speed.

When the road opens up and the pace rises, the AD9 delivers what matters most: pure aerodynamic advantage, tested to the fullest by CFD and by wind tunnel.

This is the fastest road bike in the X-LAB lineup.

World-Class Aero Road Bike

Mount the race bike that has been proven time and time again by the XDS Astana, redefining what a WorldTour bike can do with a rare optimal combination of specs, geometry, and efficiency.

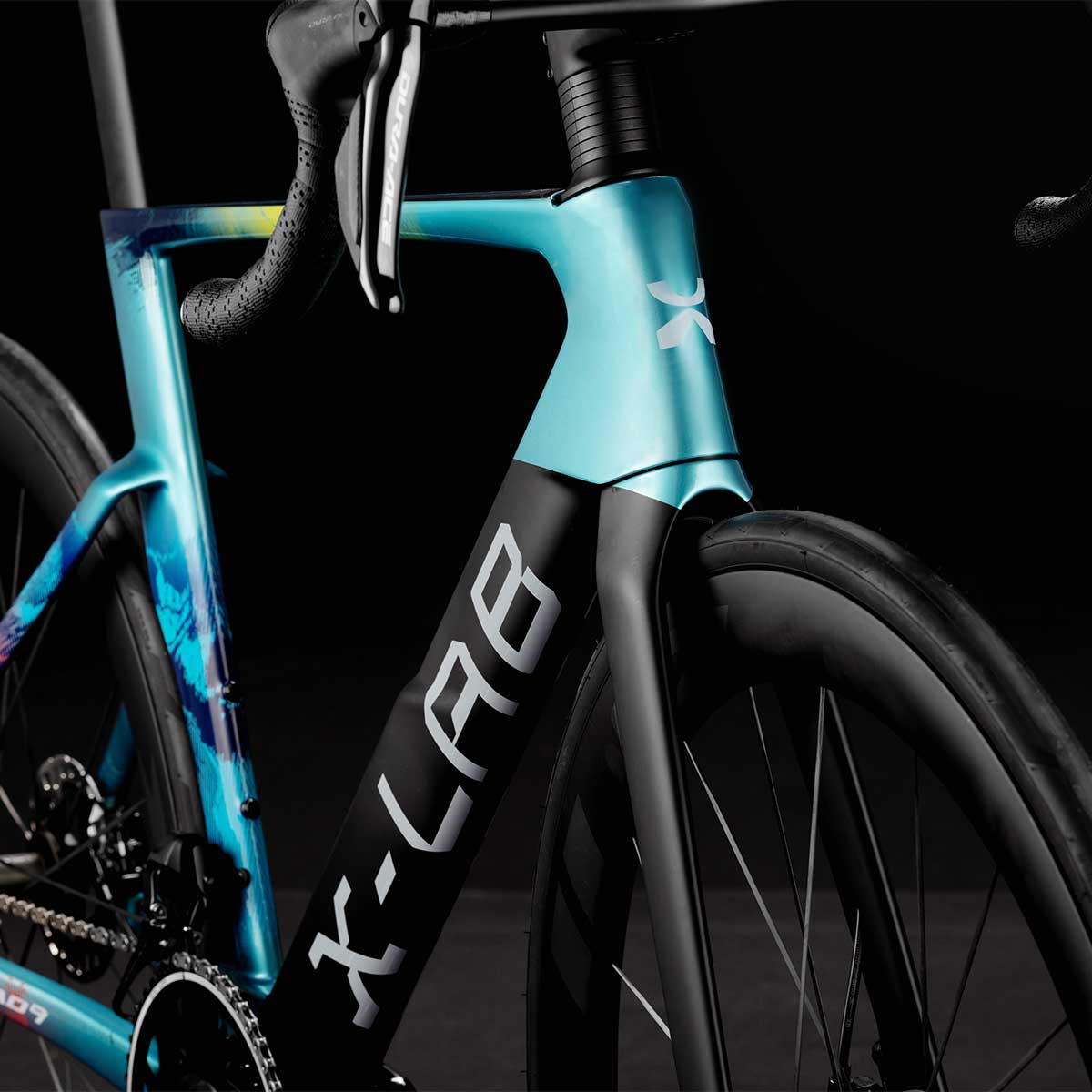

A Mastery of Carbon Fiber

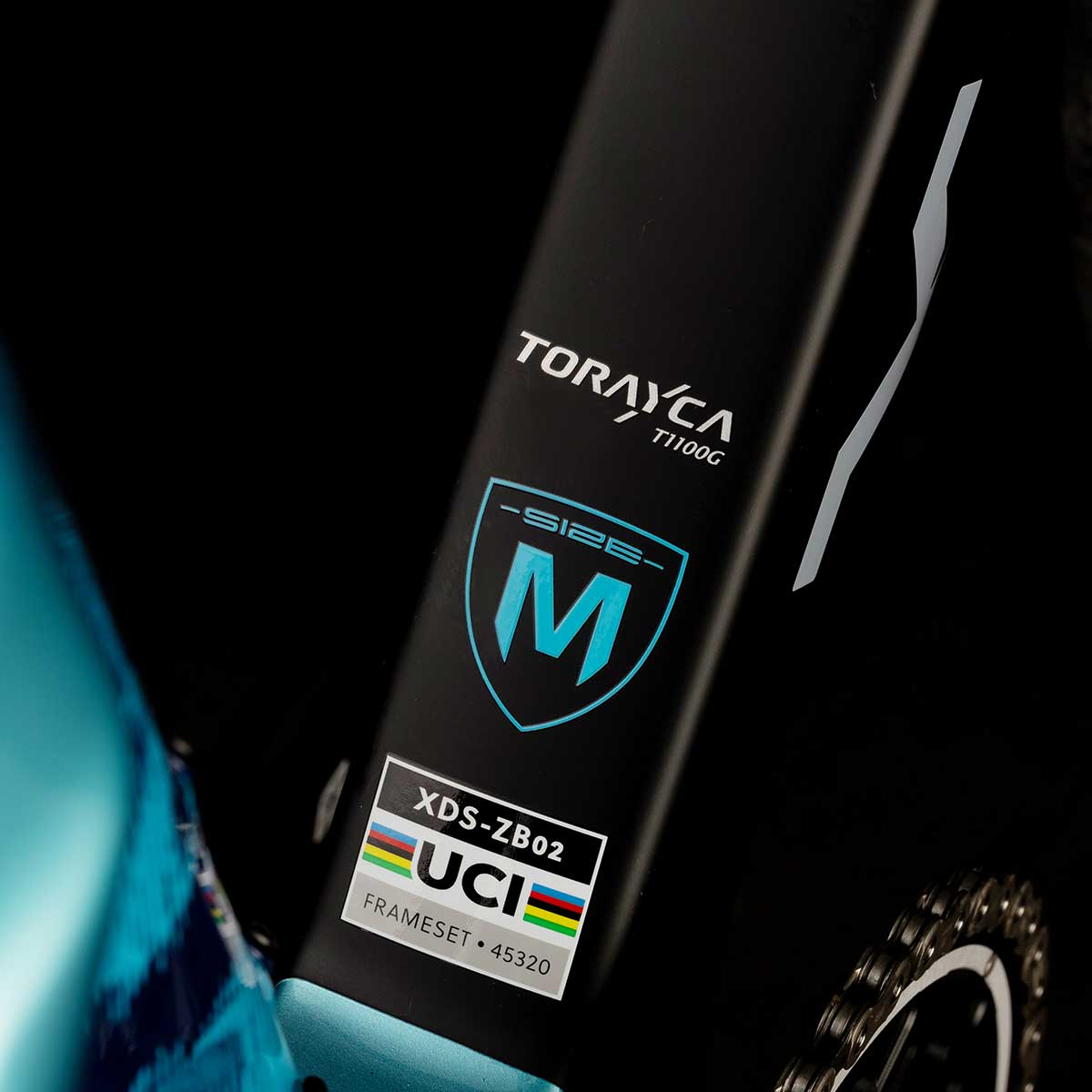

Weighing just 6.8 kg with a Toray T1100 carbon frame, the AD9 leverages the best carbon build available from XDS’ decades of carbon mastery tested on championship-winning bikes.

Dominion over Wind Resistance

Using the latest engineering techniques of Computational Fluid Dynamics (CFD), the AD9 underwent strenuous wind tunnel testing in Silverstone that puts it firmly among the elites in aerodynamic race bikes.

The Branta Advantage is Exclusive to X-LAB

See Our In-House Components

Highlights

Key Features

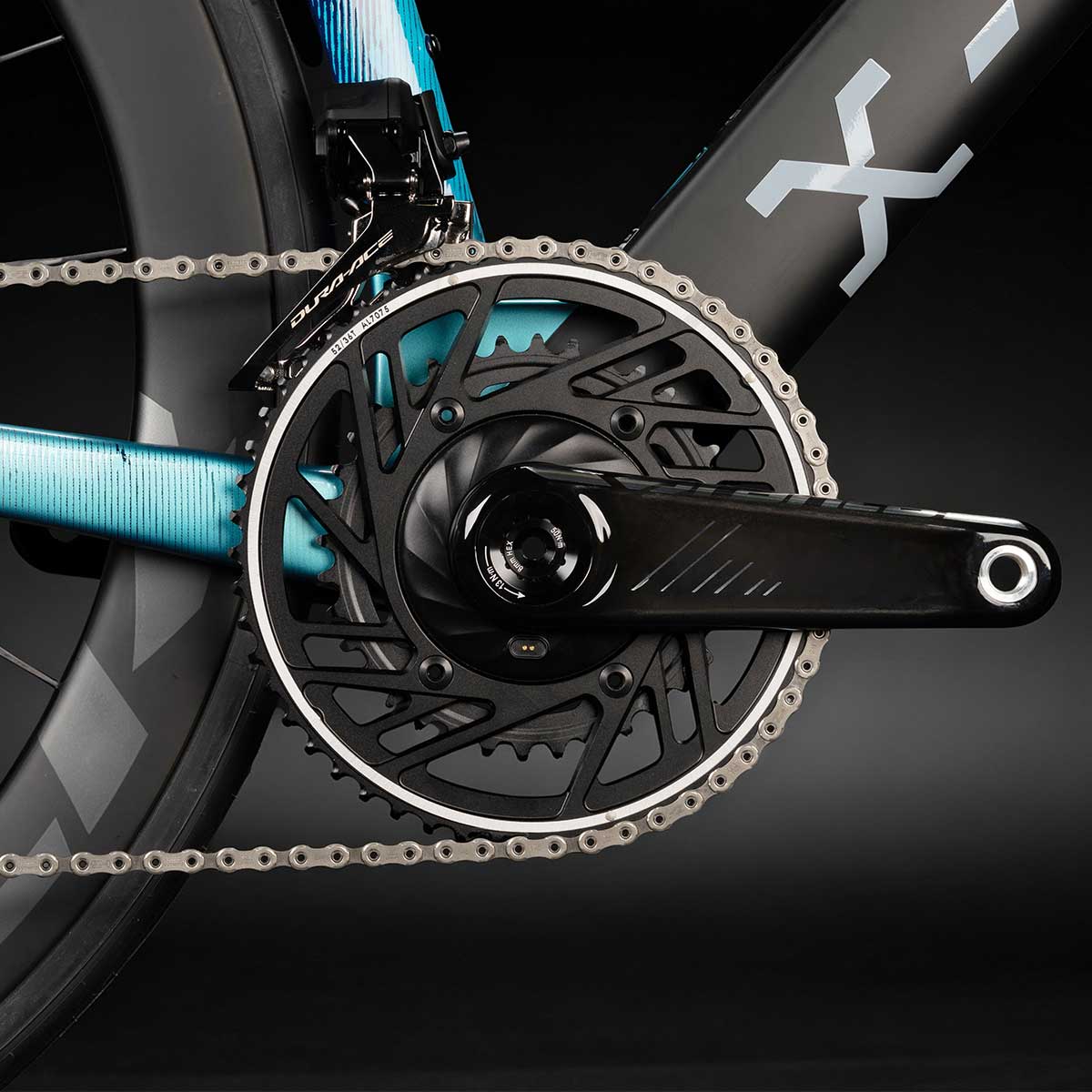

Branta carbon crankset with integrated power meter + Apple Find My anti-theft technology

Shimano Dura-Ace Di2 groupset

Branta C50 ULR carbon wheelset with carbon spokes | 1,230 g

XDS carbon frameset with Toray T1100 | Full bike 6.8kg

Technical Specifications

Frame

XDS T1100 Carbon Frame

Fork

XDS Carbon Fork, 100x12mm Thru-axle

Gear Shifter

Shimano Dura-Ace ST-R9270

Front Derailleur

Shimano Dura-Ace FD-R9250

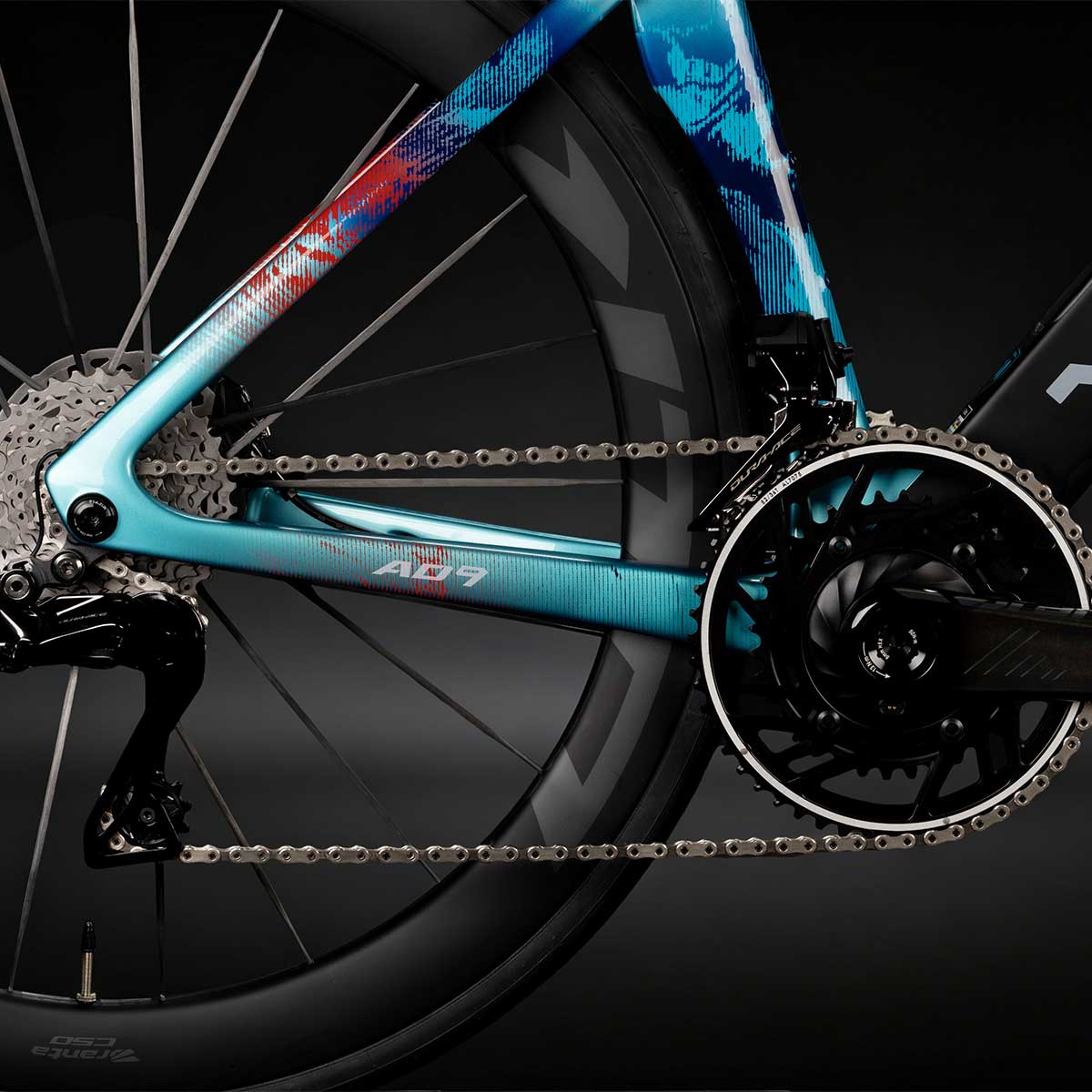

Rear Derailleur

Shimano Dura-Ace RD-R9250

Crankset

Branta Carbon Powermeter Crankset, 52-36T, 29mm Aluminum Spindle

Cassette

Shimano Dura-Ace CS-R9200, 11-34T

Chain

Shimano CN-M9100

Bottom Bracket

T47 29mm

Rim

Branta C50 ULR, Carbon Spokes

Tyre

Michelin Pro 5 700x28C

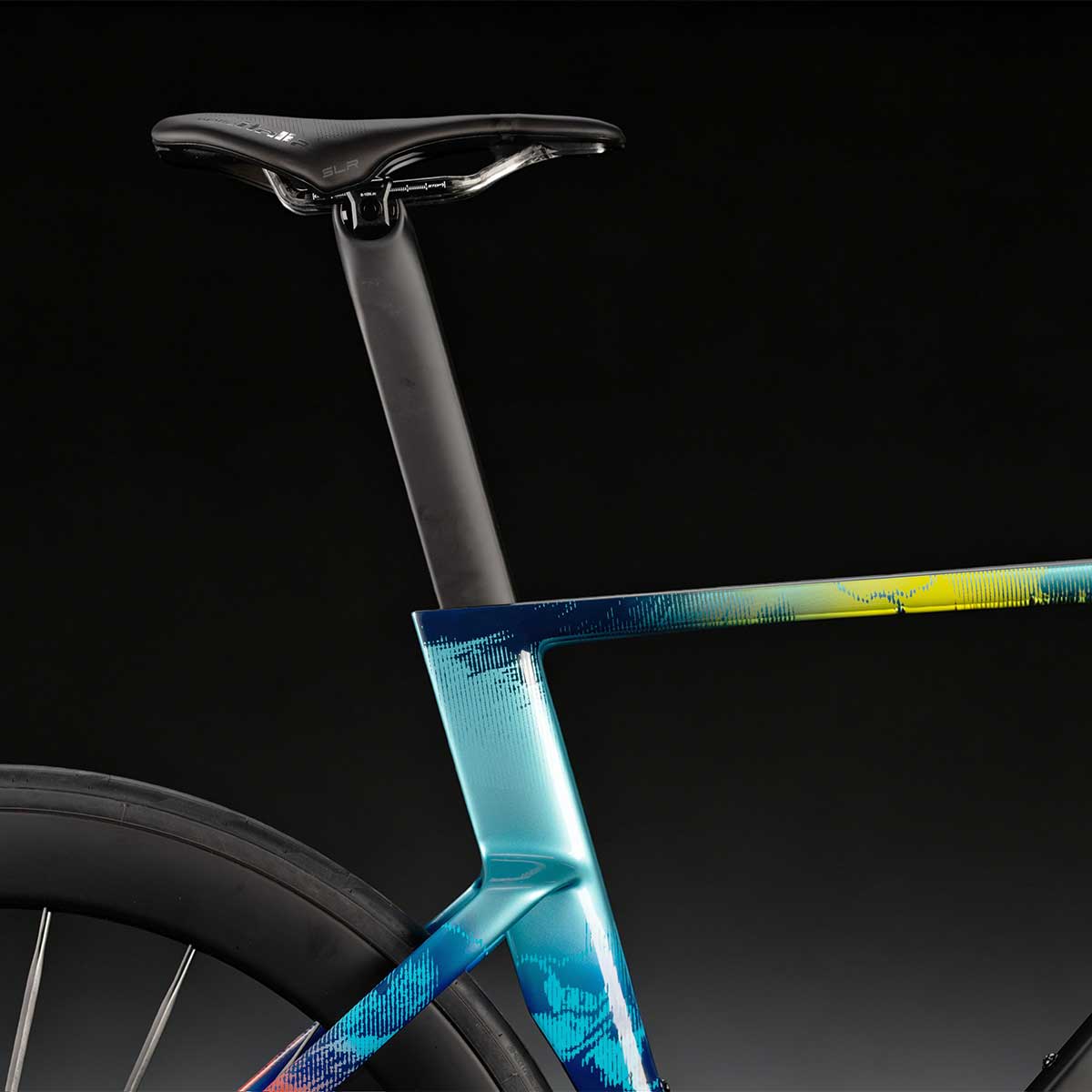

Seat Post

XDS Carbon Seatpost, Aero Shape

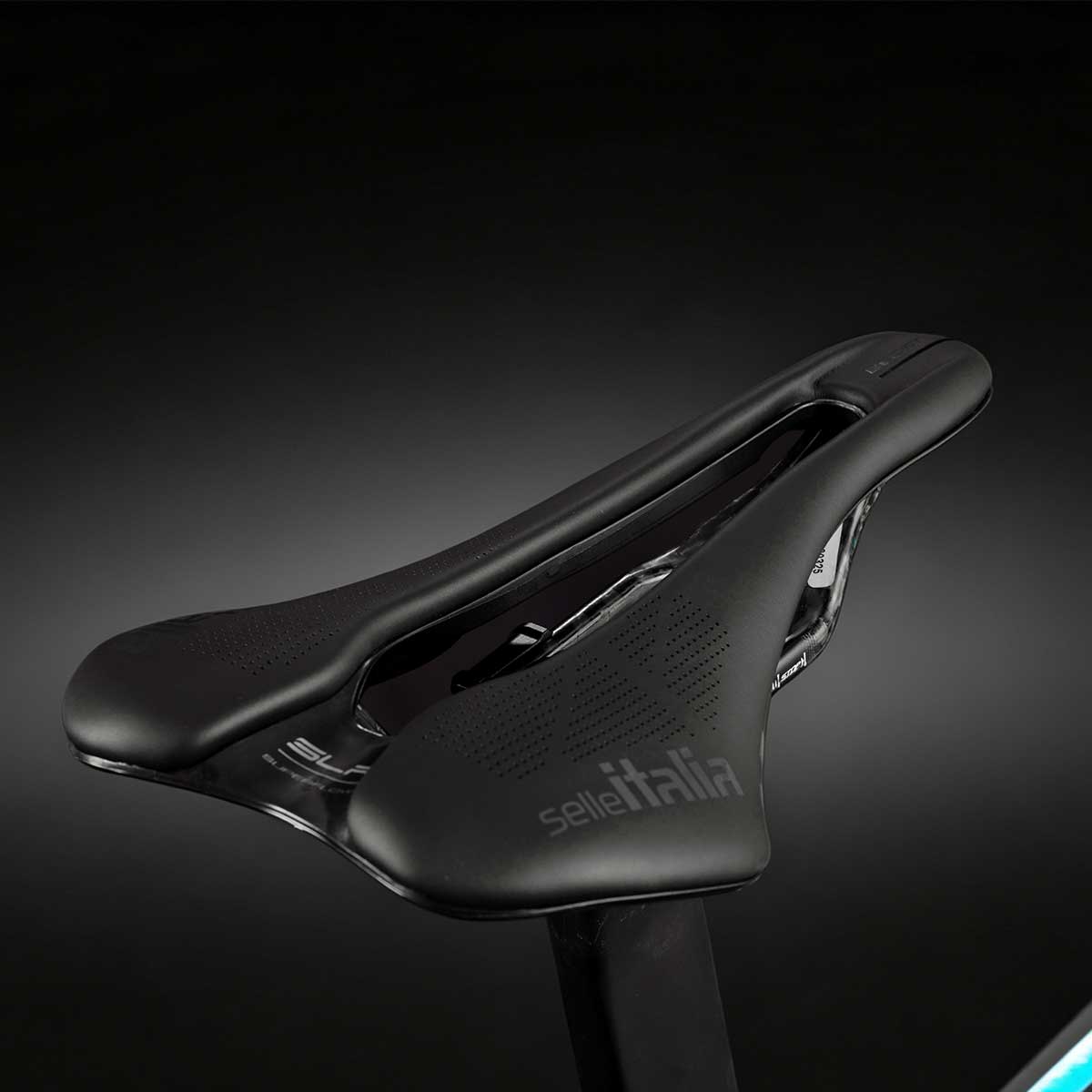

Saddle

Prologo Nago R4 PAS, Carbon Rails(Team Replica) Selle Italia SLR Boost, Carbon Rails(Regular)

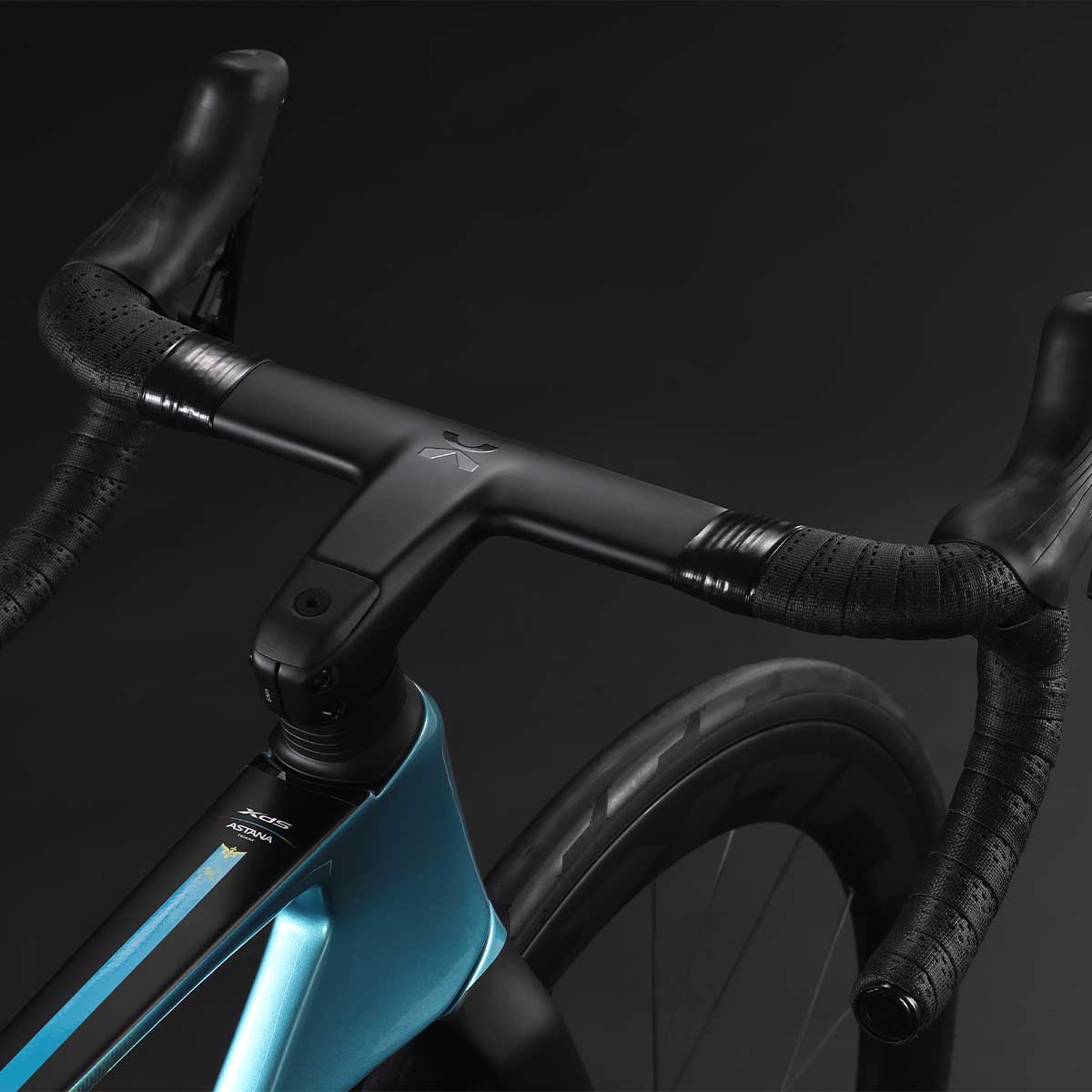

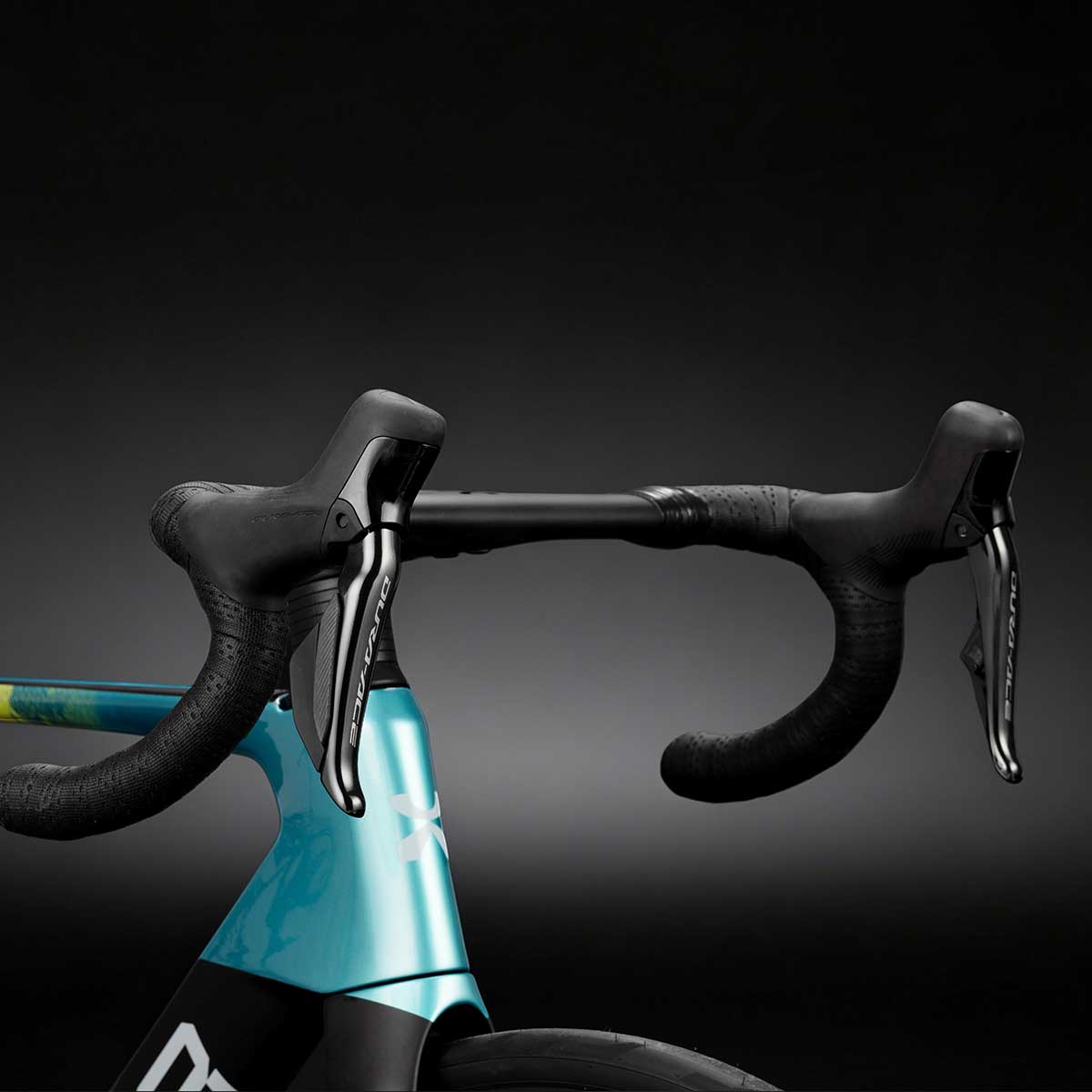

Handlebar

Branta Carbon Integrated

Stem

Branta Carbon Integrated

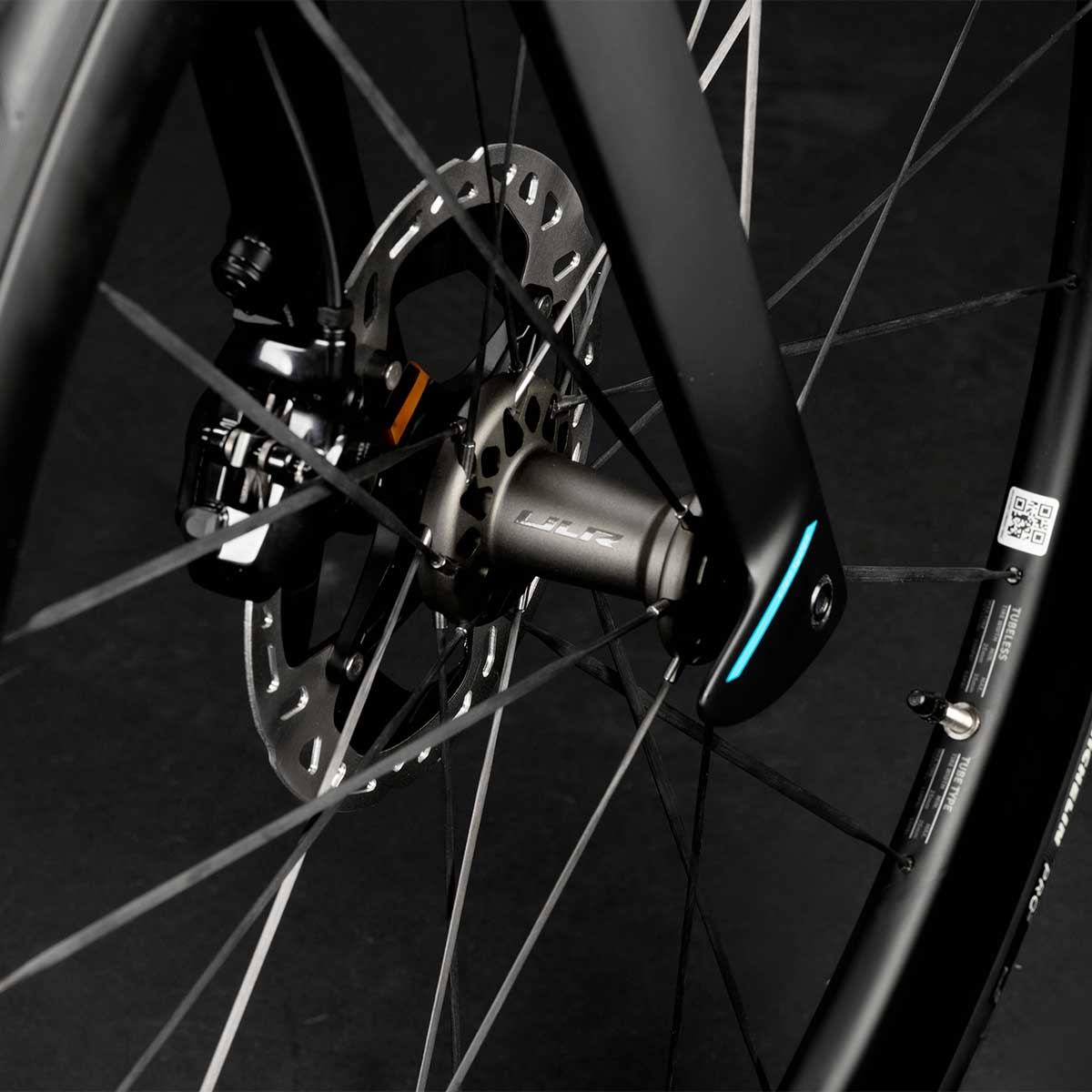

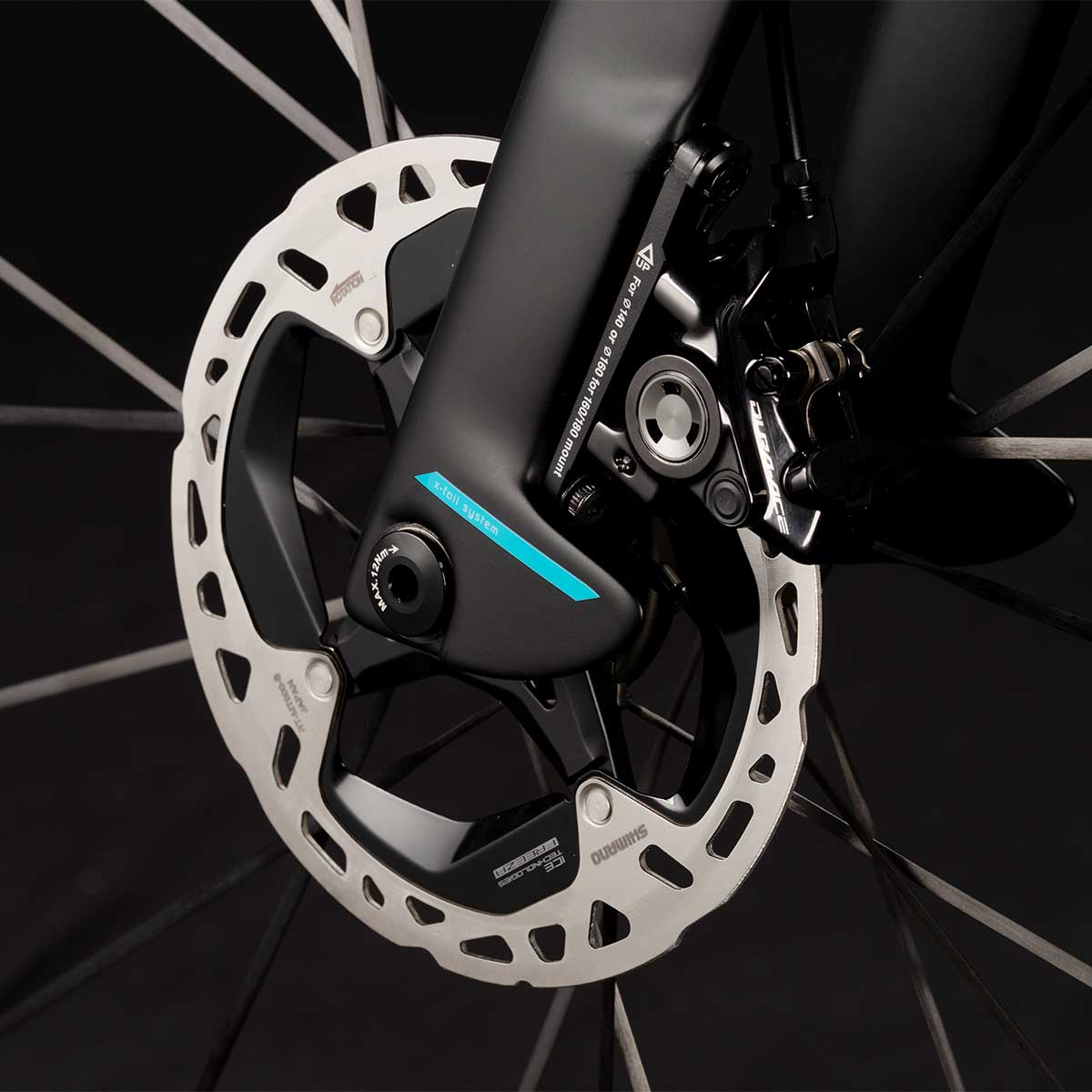

Front Brake

Shimano Dura-Ace BR-R9270

Rear Brake

Shimano Dura-Ace BR-R9270

*Continuous Product Improvement

Innovation never stands still. As part of our commitment to building the best possible bicycles, X-LAB reserves the right to update specifications, components, colors, and other product details at any time without notice. We make every effort to keep our published specifications current, but minor variations may occur between production batches. Please contact your local X-LAB dealer or Customer Support if you would like to confirm the latest specifications before purchase.

Geometry & Dimensions

FAQ

General

What rider type is the AD9 designed for?

AD9 is for a serious cycling enthusiast or racer, who knows exactly what components and race-ready frame geometry they’re looking for. This rider prioritizes watts and grams saved over everything else.

Is the bike easy to assemble out of the box?

Yes, AD9 is easy to assemble. You can refer to the written assembly guide or our assembly video to help guide you through the process. If you have any questions or doubts about assembling AD9 yourself, we recommend having it professionally assembled at your local bike shop.

What’s the weight limit for the bike?

AD9 has a weight limit of 220lbs (100kg), which includes the rider and any gear or cargo.

Can the frameset be purchased separately?

Yes, the AD9 frameset and other major components (including cockpit, crank, and wheels) are available for purchase.

Where can my bike be serviced and repaired?

Any local bike shop will be able to provide general service for your AD9. For any component customization or warranty issues we recommend going to an X-LAB dealer to receive the best expert guidance and support.

Technical

What is the maximum tire clearance?

AD9 has clearance for up to 32c tires.

Can the integrated power meter connect to third-party bike computers?

Yes, the integrated power meter can connect to most major bike computers and fitness devices via ANT+. This allows live power data to be shared directly to your device. Live power data can also be shared via Bluetooth to the X-LAB Bikes app on your mobile device. At this time, live data can’t be shared to third party mobile apps via Bluetooth.

Is the frame compatible with SRAM groupsets?

Yes, the AD9 frame is compatible with most wired and wireless electronic groupsets from all major drivetrain brands.

Does it use a UDH (Universal Derailleur Hanger)?

Yes, AD9 uses a UDH.

Is the aero cockpit compatible with standard bike computer mounts?

Yes, the aero cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts. A basic bike computer mounting kit is also provided with the bike.

What is the maximum chainring size supported?

AD9 can fit up to 56-43T 2x front chainrings or a 68T 1x front chainring.

Are other cockpit size options available?

Yes, X-LAB has 18 different size options for the integrated aero cockpit on AD9.

Are other crank length options available?

Yes, X-LAB offers numerous crank length options for the Branta carbon power meter crankset for purchase.

Does the power meter measure left, right, or both sides?

The Branta power meter crank is dual-sided, meaning it measures power from both left and right legs separately.

Is the wheelset tubeless ready?

Yes - the rims and tires on AD9 are tubeless ready and tubeless rim tape is already installed. Tubeless valves and sealant must be purchased separately.
