Absorb Rough Bumps
Suntour XCT suspension forks absorb blows from uneven surfaces, keeping yourself and your frame comfortable. Suntour XCT also lets you adjust the travel of your suspension to tailor fit your ride.
Strong Stopping Power
Find the security you’ll need down steep trails with durable disc brakes. Disc brakes offer consistent, high performance braking power, even in wet and muddy conditions where rim brakes (caliper and V brakes) fall short.
Shimano Tourney 24 Speed Drivetrain
Shift through 3 gears with the front derailleur and 8 in the rear for a grand total of 24 speeds with this Shimano Tourney drivetrain. You’ll find the perfect gear ratio for whatever incline you come across to keep you climbing consistently.
Integrated Shifting and Braking
All the convenience of braking and shifting from the same unit with Shimano Acera Shift/Brake Levers. Shift quickly and easily with Shimano Acera EZ Fire Plus shifters to cycle through 3 front and 8 rear gears.

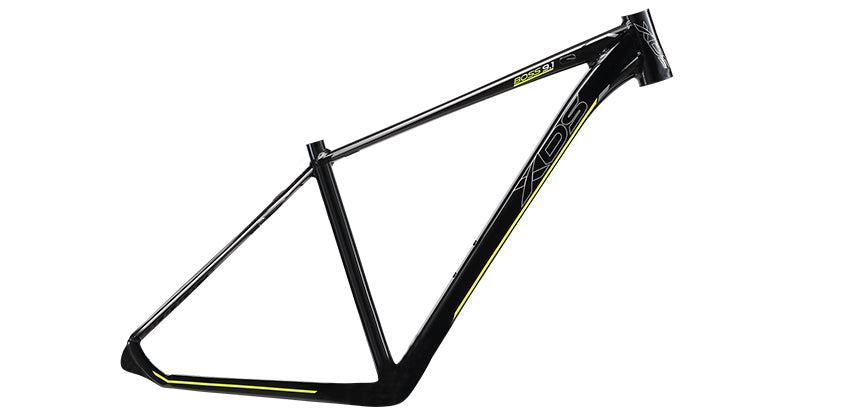

Lightweight Alloy Frame
With a nimble alloy frame, the boss 9.1 is lighter and much easier to handle, but still durable enough to take a knock off-road.
|Colours||Matt Grey/Hi-Vis Yellow|
|Frame Size||16", 18", 20"|
|Frame||XDS X6 Alloy 29"x16"|
|Fork||Suntour XCT DS HLO 29″ (Ø28.6 × Ø25.4 × 198mm)|
|Handlebar||XDS Alloy (W: 640mm 6° Ø31.8mm)|
|Stem||XDS Alloy (Ø28.6mm E: 90mm H:41mm 7° Ø31.8mm)|
|Seat Post||XDS Alloy (Ø27.2 × 2.2T × 350mm)|
|Seat Clamp||Alloy (Ø31.8mm)|
|Pedals||FP Nylon 9/16″|
|Front Brakes||Mechanical Disc Brake Rotor (Ø160mm)|
|Rear Brakes||Mechanical Disc Brake Rotor (Ø160mm)|
|Rim||XDS MD16 Alloy (29" × 622 × 19 × 14G × 32H A/V H:17)|
|Front Shifter||Shimano Acera ST-EF500 3-SPD EZ-Fire Plus, 2F Alloy Black|
|Rear Shifter||Shimano Acera ST-EF500 8-SPD 2050mm EZ-Fire Plus, 2F Allo|
|Front Derailleur||Shimano Tourney FD-TY700-TS6 Top-Swing, Dual-Pull|
|Rear Derailleur||Shimano Tourney TX 7/8-SPD Direct Attachment Type 11-34T|
|Freewheel||8-Speed Screw in Type (13-32T)|
|Chainwheel & Cranks||Prowheel (3/32" × 22/32/42 (ED) × 170mm)|
|Chain||KMC (1/2" × 3/32" × 112L)|
|Bottom Bracket||FP (BC1.37” × 24T 5PCS)|
|Front Hub||KT Mountain Disc MD7F (14G × 32H M9 × 100 × 108mm)|
|Rear Hub||KT TDR8R (14G × 32H M10 × 135 × 145mm 8/9-SPD)|
|Spokes||Stainless Steel (14G)|
|Tyre||29" × 2.0" 27 TPI|
